AC 1000-F with Twin Loader and Robot Cell

Описание: PETER WOLTERS AC 1000 double-side batch
processing machine has been designed for highprecision
series processing work pieces. Due to its
modular construction, AC 1000 can be used as a
fine grinding, honing, and polishing machine.
MACHINE FEATURES
Like all machines of the AC microLine® series,
AC 880 is based on tried and tested core components
such as high-precision, pneumatic pressure
system, non-contact micro measuring controller,

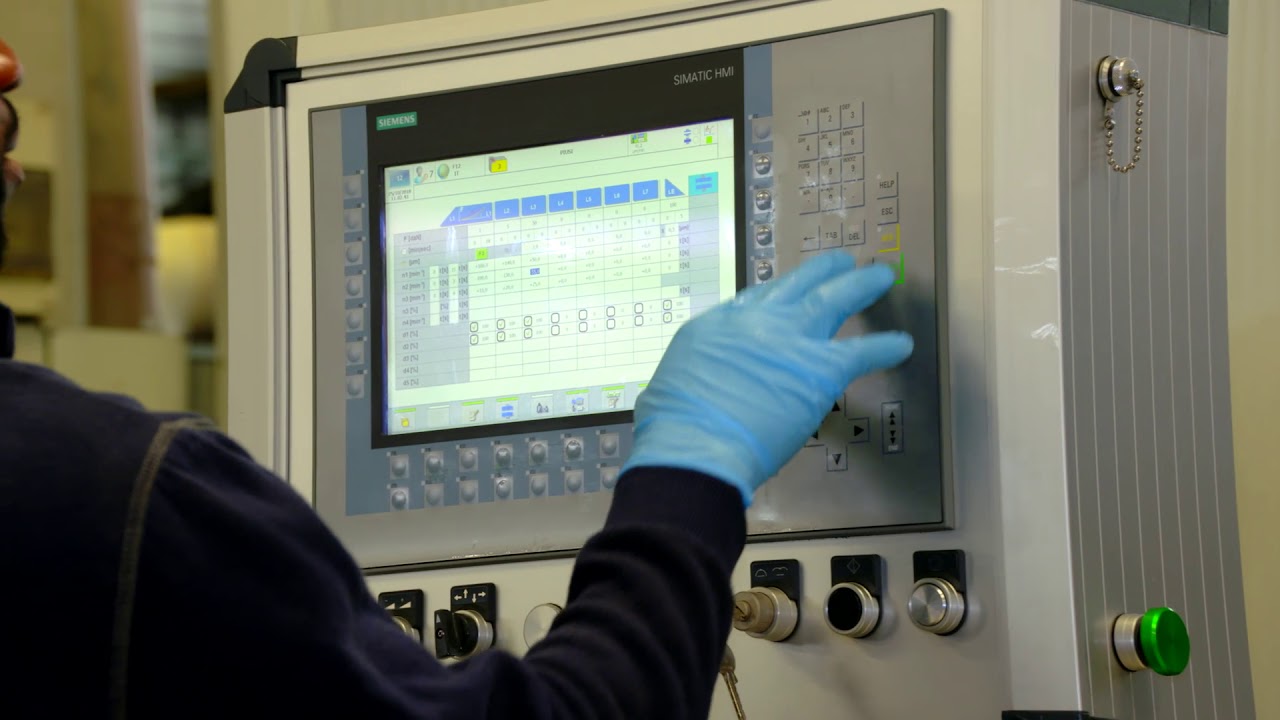

powerful drive technology, and the PLC assisted
machine control. Software has been developed
by PETER WOLTERS which makes it possible to
intuitively operate the machine entirely by menus.
The swivel mounted upper base frame allows good
access to the machine interior.
The machine is available with different epicyclic
workholder drive systems and wheel speeds to match
the widest possible range of work pieces. This ensures
optimum machine configuration for every application.
AC 1000 is available with well-known, tried and
tested accessories such as gap formation, alignment
device, and dosing system for fine grinding liquid or
polishing compound.
Accessories such as measuring sensor and post-process
measurement provide data for statistical
process control and offer process security when
processing critical work pieces. DataCare®, the
proprietary analysis tool, captures all controller
data and thus is the perfect platform for analytic
process evaluation, optimization and fault analysis.
AC 1000 can load and process work pieces with
a maximum diameter of 290 mm and a maximum
thickness of 100 mm.
