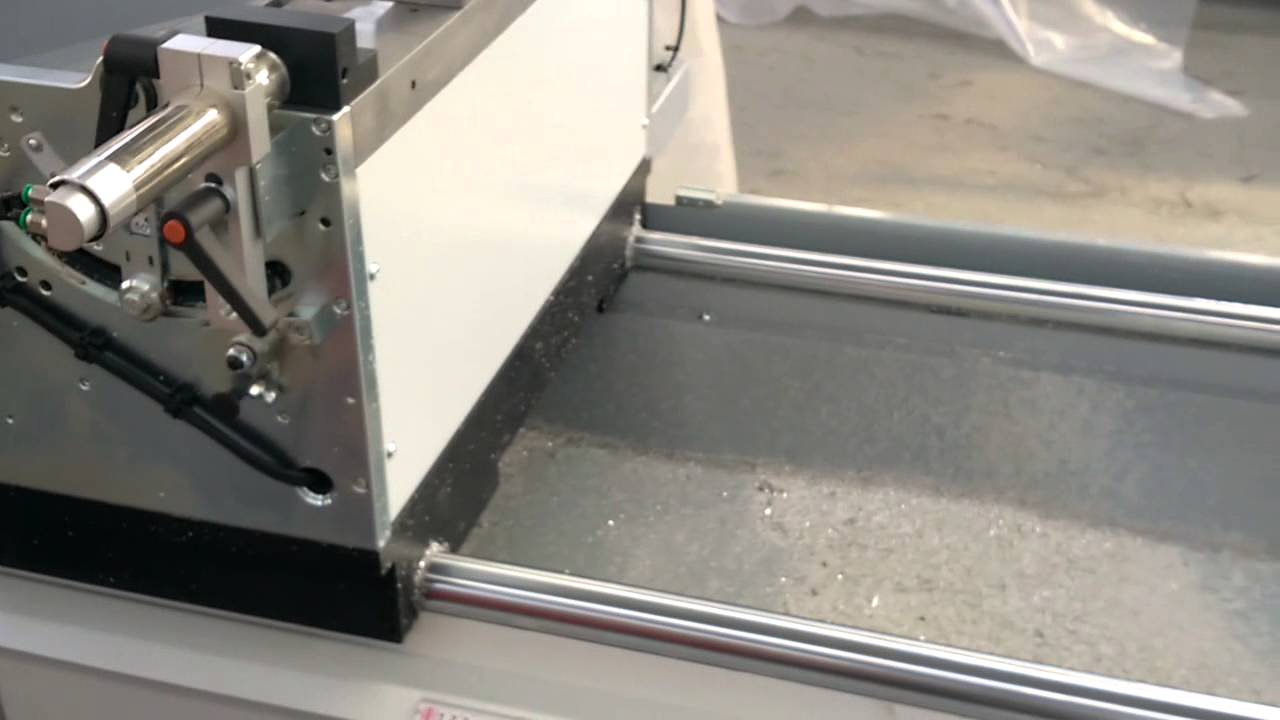

FOM Industrie Blitz Alva 500 A

Описание: Double head sawing machine with Ø 500mm tungsten carbide blades with motorized movement of the mobile head and electropneumatic control of the head tilting.

Head tilting from 22.5° external to 90° by pneumatic cylinders, with mechanical stops for intermediate angles
No. 2 Ø 500mm tungsten carbide saw blades
Blade centering hole Ø 32mm with adapter ring
Hydraulic tungsten carbide saw blade feed (adjustable blade exit speed – quick return)
Direct motor to blade transmission
Blade motors, three-phase 3HP (2.2 kW) – 2800rpm Euro voltage 230/400V – 50Hz; 275/480V – 60 Hz
28 mm saw blade shaft
First head fixed, second head mobile with electronically-controlled automatic positioning
Maximum cut between the two heads: 4 – 5 – 6 m. depending on version supplied
Minimum cutting capacity between the two heads: 305 mm (can be reduced with dedicated software)
Blade tilting 90°/ 45°/ 22.5° and intermediate angles by means of front-mounted mechanical stops suitably protected from chips
Cutting area guard kit
No. 2 pneumatic vertical vices
No. 3 pneumatic horizontal vices
Customised devices to clamp special profiles (on request)
Movable head roller table 2.5m
Spray mist blade lubrication system
Electrical switchboard separate from pneumatic one, both positioned vertically and easily accessible for inspection
Set up for the extraction of chips and fumes
Large size swarf collection box to allow easy collection
Set up to take motorised conveyor belt for collecting offcuts and a rear motorised chips collection conveyor belt
Real-time control of functions by PLC Membrane type keypad protected from chips and sawdust
USB port
