SmartLED Shield for Teensy 4: Drive high quality graphics to HUB75 RGB matrix

Описание: Back this project: https://www.crowdsupply.com/pixelmati...
Get an Arduino https://amzn.to/37eNJ4e

Back this project: https://www.crowdsupply.com/pixelmati...

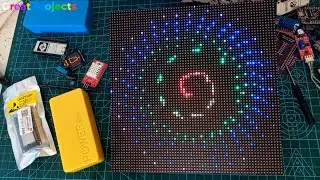

Want to add a lot of LEDs to your Arduino project? HUB75 RGB panels are a great way to do this as they are much cheaper than addressable Neopixel/WS2812 LEDs (typically 10% the cost per LED). They are also available in a range of pixel densities (from 2 mm to 10 mm pitch) to better fit the needs of your project. However, it’s complicated to use a microcontroller to display high-quality graphics on a HUB75 panel, as the panels require precise timing and constant refreshing with pixel data. That’s where the SmartLED Shield for Teensy 4 comes in.






















High-quality, Easy-to-implement LED GraphicsSmartLED Shield enables the Teensy 4 to drive high-quality graphics to HUB75 RGB LED panels, with 36-bit color and 240 Hz refresh rate across large panels (e.g. 128x64 pixels). A Teensy 4.0 or Teensy 4.1 with pins fits into the socket on the shield, and the shield can attach directly to the HUB75 panel or through a ribbon cable. The SmartMatrix library for Arduino makes it easy to draw basic graphics, create scrolling and static text, draw beautiful patterns using FastLED, and play animated GIFs on the panel. Example code is provided so you can get started as quickly as possible. The Shield and library use special features and peripherals of the Teensy 4 processor to send graphics data to your display with minimal CPU usage, so you can use the processor to do other tasks in parallel such as SPI communication, file decoding, or complex rendering.
Using SmartLED Shield with SmartMatrix library and the Teensy 4 is the easiest way to drive high-quality and high pixel count graphics to RGB LED panels with a microcontroller. Use a simple API to tell the library what to draw on the screen, and the library takes care of refreshing in the background. Advanced features like these are enabled automatically:

36-bit Color Refresh - See the full color range in the image or pattern you're displaying, with no noticeable brightness steps when dimming pixels down to black. Up to 48-bit color refresh is available.
Color (Gamma) Correction - Your source graphics are probably 24-bit color, but SmartMatrix library applies automatic color correction so they have good contrast, smooth gradients, and don't look washed out.
Global Brightness Control - When you don't need the full brightness of the LED panel, lower the brightness without having to sacrifice color depth of your graphics.

The shield is easy to assemble and connect to a panel, and there’s no soldering required beyond adding pins to the Teensy. The Teensy is removable, so you can swap between the 4.0 and 4.1 if you want. All long edge Teensy signals are brought out to expansion rows for easy prototyping.
Installation Video


Features
Ease-of-use:
SmartLED Shield is fully assembled. If your Teensy has pins, then no sol
