EasySplit 220™ Quadplex outlet splitter for Electric Vehicle charging - demo by BSA Electronics

Описание: Custom built by me and available at https://www.bsaelectronics.com/
Product page: https://tinyurl.com/dbquadplex

Dryer Buddy™ Quadplex is based upon the original Dryer Buddy but is even more versatile! This unit takes the place of several other Dryer Buddy numbers with it's modular power input cord, allowing you to plug into both NEMA 10-30 Dryer outlets AND NEMA 14-30 Dryer outlets. From there it gets even better, the Dryer Buddy™ Quadplex has FOUR outlets, two NEMA 10-30 and two NEMA 14-30, now you may plug in a Dryer with either popular plug and EV charging Stations with either popular plug in any combination!

If your needs change in the future such as moving from a building built before 1996 (10-30 Dryer outlets are common here) to a home built in 1996 or newer (will have a 14-30 Dryer outlet per code) you have what you need and can simple change the power input cable, no need to send in your Dryer Buddy for a upgrade/reconfiguration.

Dryer Buddy allows you to share your dryer outlet with your EVSE. Allows both to share the 30A circuit. As running a Dryer on low heat/tumble dry doesn't use nearly as much power as high heat a ammeter is included so you may see how much current your dryer uses and you can use the rest to charge your car! Or just charge at night when not doing laundry and use the full circuit to charge your car. Great for apartment dwellers, temp housing or an easy hookup at a friend’s/relative’s house.

Dryer Buddy vs. Dryer Buddy PLUS vs. Dryer Buddy Plus AUTO

The original Dryer Buddy model is a splitter (both outlets always live), You can add one of two Upgrade Paks for manual or automatic operation, an Upgrade Pak essential allows you to pay the difference in cost between the original Dryer Buddy and the Dryer Buddy Plus AUTO or Dryer Buddy PLUS AUTO.

What is a Dryer Buddy Plus? The Dryer Buddy Plus is a manual 2-way switcher based on the original Dryer Buddy. It allows you to share your Dryer outlet with your EVSE or any appliance like a Bitcoin miner. Only one outlet is live at a time, by default it’s the dryer outlet (on the left) with a flip of the switch, power is toggled to the EVSE outlet only. Designed so other members of the house don’t accidentally start the Dryer while you’re charging your EV;

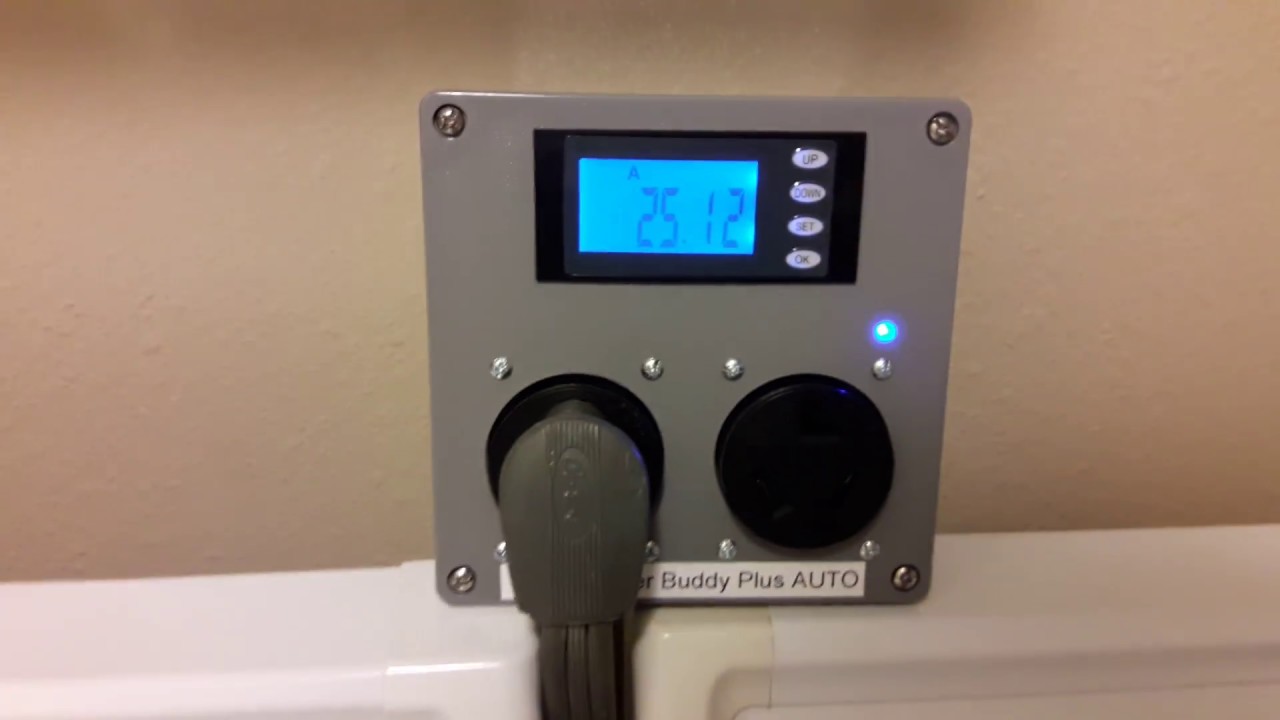

The Dryer Buddy Plus AUTO is a fully automatic 2-way switcher based on the original Dryer Buddy Plus It allows you to share your Dryer outlet with your EVSE without having to flip any switches. Basic operation is simple, the Dryer outlet is always live and the EVSE outlet is only live when there is enough amperage available to charge your EV. When the Dryer is off it is drawing little to no amps so the EVSE outlet is switched on allowing your EV to charge. If the Dryer is turned on at any time then the EVSE outlet is switched off, when the Dryer is done, power is restored to the EVSE outlet and if your EV needs charging it will resume charging. Designed so other members of the house don't have to understand anything technical to use the Dryer when they need to do a load of laundry, See my demo video here:    • Dryer Buddy™ Plus AUTO Smart Splitter - de...

For the PLUS and Plus Auto models the meter is wired to read system Voltage and only meter the Current flowing through the EVSE outlet, unlike the original Dryer Buddy where the meter reads all Current flowing through the unit. In this configuration the Kilowatt Hours (kWh's) will only accumulate for Energy flowing through the EVSE outlet (on the right of the face) this value is stored between power outages and may be reset when you like. This allows you to see only the Energy your Electric vehicle has consumed.
