In the realm of precision engineering, where meticulous attention to detail and adherence to stringent specifications are paramount, the introduction of the RAPID high-speed angle drilling lines marks a significant leap forward. These cutting-edge systems are purpose-built to meet the exacting demands of modern industrial applications, offering a blend of innovation, efficiency, and precision that redefines the standards of angle drilling technology.

At the core of the RAPID line's capabilities are the high-speed drilling units equipped with powerful direct drive spindles, driven by servo drives through a rack and pinion system. This configuration ensures swift and precise operations, minimizing downtime and maximizing productivity.

Further enhancing its capabilities is the integration of spindle sub-axis positioning, a feature that enables the simultaneous processing of offset holes in both legs with exceptional speed and accuracy. Typical hole patterns can be drilled without the need to unclamp and re-clamp the material for each spindle operation to reduce the cycle times drastically.
This unique sub-axis capability affords the ability to perform milling operations such as the generation on large holes or even the milling of the angle heel, which is typically required on the legs of transmission towers.

Additionally, the RAPID line features automatic tool-changer systems, allowing for rapid tool replacement and seamless workflow management.

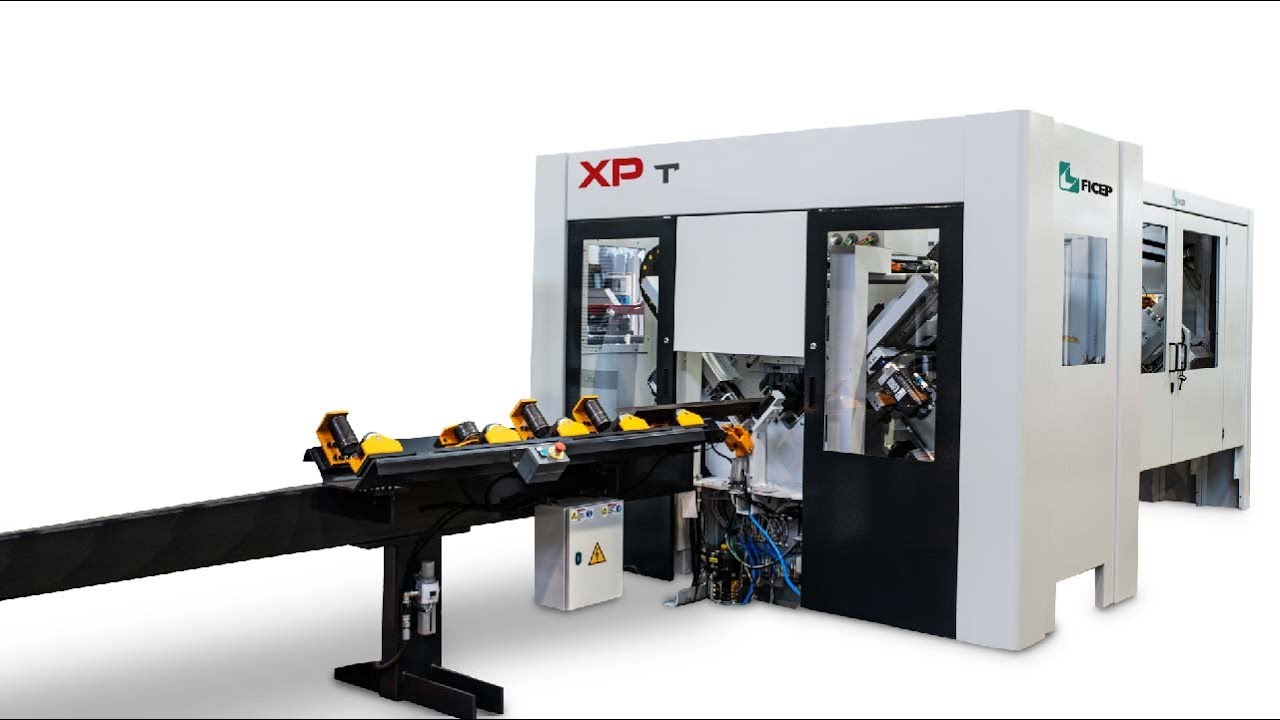

Notching in angle iron fabrication for typical transmission tower fabrication can be a costly operation. FICEP has now integrated notching with drilling, punching, marking, shearing to length into one high performance CNC line. The miscellaneous steel fabrication of the angle iron bracing found in tower type structures has never been more completely automated.

Notching is accommodated in both legs of the angle with a unique arrangement of special notching tools that also perform the shearing to length operation. Several unique innovative features have been incorporated into this unique product to make it the most comprehensive angle line on the market today.
The inclusion of a fully programmable marking unit and innovations like angle heel milling tools and fast angle feeding systems further underscore the adaptability of the RAPID line to diverse industrial needs. Practical features such as stock length detection via laser devices and rotating loading systems automate material handling processes, while cross transfer systems facilitate seamless loading and unloading of stock lengths and finished parts, enhancing overall workflow efficiency.

The RAPID high-speed angle drilling, milling, notching, marking and cutting lines represent a significant advancement in precision engineering, offering a comprehensive solution that addresses the evolving needs of modern industries. With its blend of innovation, efficiency, and precision, the RAPID line empowers operators to achieve unparalleled levels of productivity and quality in their machining operations.
