Our Unique Passenger Lift Fire Evacuation Solution - 22 Bishopsgate, London

Описание: We have devised a unique fire evacuation strategy for 22 Bishopsgate, the 62-storey tower by Lipton Rogers Developments, currently under construction in the City of London. This will provide a safe and speedy evacuation route for building occupants using the existing passenger lift system as alternative to the fire escape stairs.
Read more here: http://ow.ly/jl2G50vbmk1

The UK building regulations dictate performance objectives for fire safety and methods for achieving them, usually involving fire escape stairs or fire evacuation lifts. WSP’s solution adds the use of passenger lifts as an alternative, speedier and more cost-effective evacuation option.

Faster Than Evacuation Via The Stairs Only

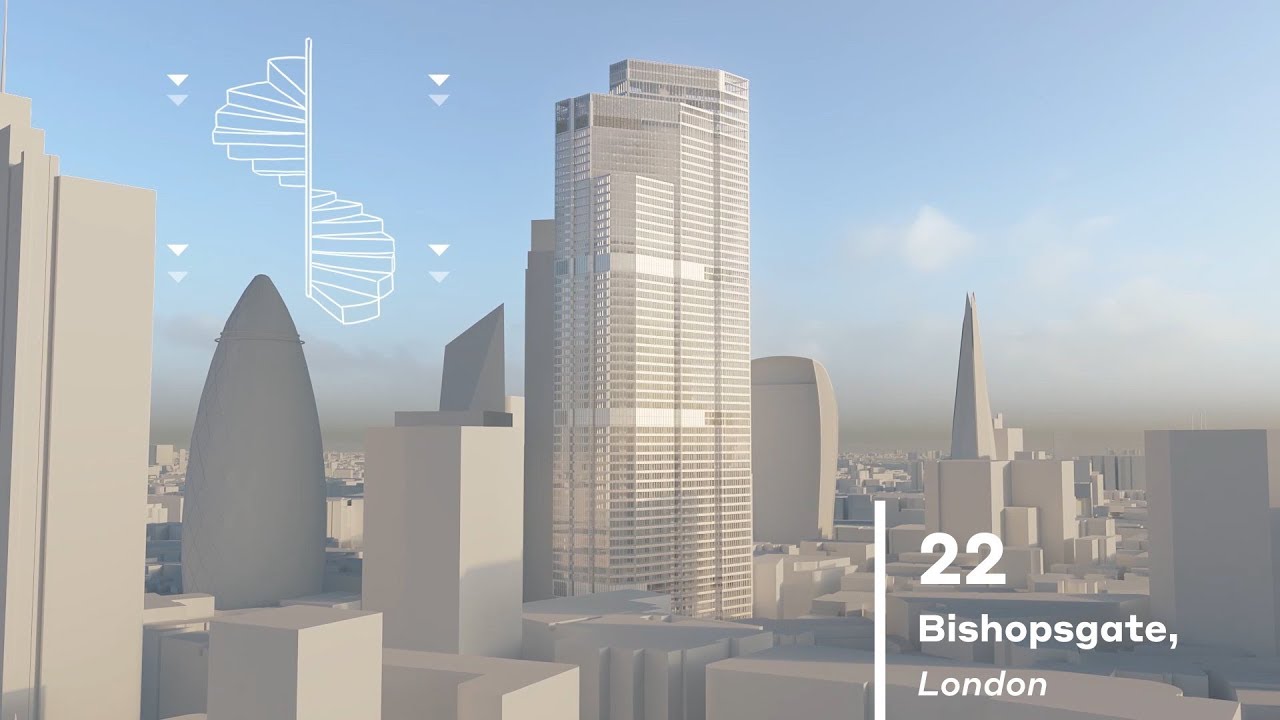

22 Bishopsgate will be the tallest building in the City of London and the largest office building in Europe, designed to accommodate a maximum of 12,000 people. While retaining the standard fire evacuation route via the stairs, we devised a supplementary system using the every-day passenger lifts to speed up the process in this very tall building.

More cost effective than fire evacuation lifts

Using passenger lifts rather than traditional fire evacuation lifts is an economical solution for a building of this size. Fire evacuation lifts are expensive to install, since they are required by UK building regulations to run inside fire-rated shafts, have a dual power supply and be pressurised to protect against smoke ingress. Furthermore, a refuge or fire lobby must be installed on each floor served by these lifts - a sterile smoke-vented space constructed from non-combustible material. For a 60-storey building with around 300 people per floor, each lobby would be around 100m2, equating to 6,000m2 in total, or two to three floors of valuable rental space.
