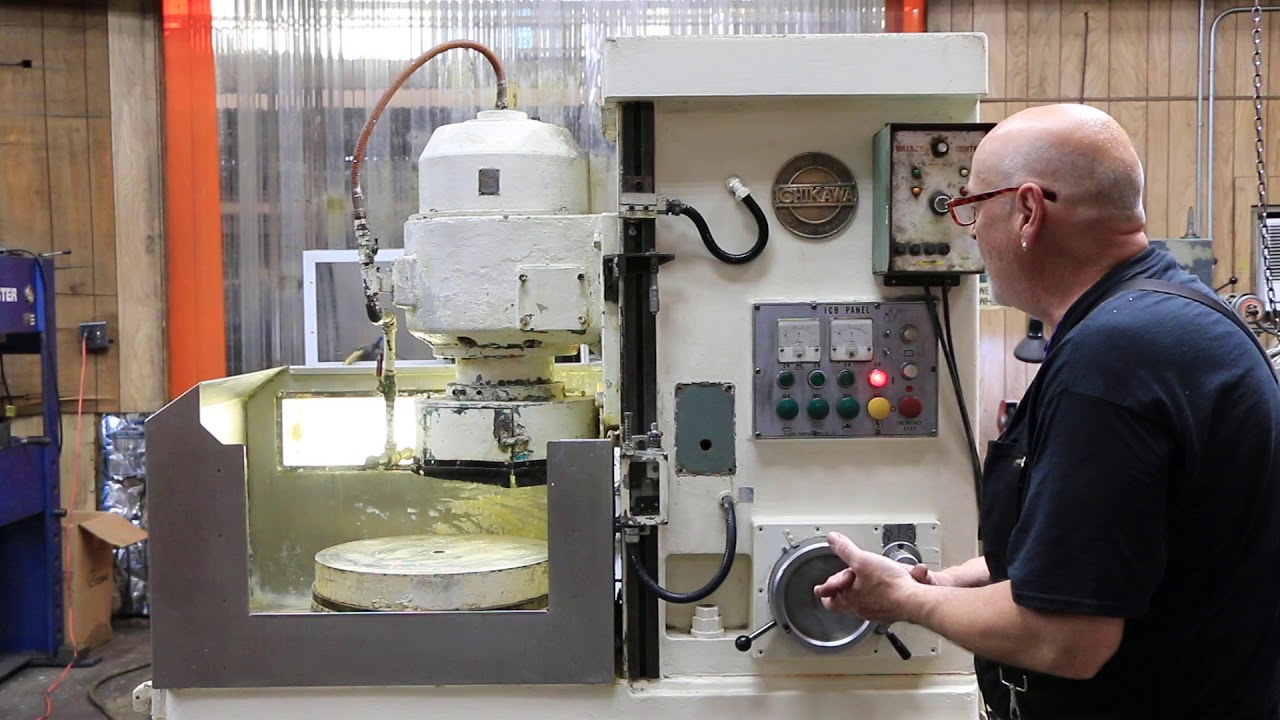

20" ICHIKAWA (JAPANES MADE) ROTARY SURFACE GRINDER

Описание: https://www.machineryvalues.com/inven...

20" ICHIKAWA (JAPANES MADE) ROTARY SURFACE GRINDER

MODEL: ICB-603 S/N: 050490 NEW: 1980


CHUCK DIAMETER .................................... 20"
SWING INSIDE GUARDS ............................... 28"
VERTICAL RANGE UNDER NEW WHEEL .................... 10"
GRINDING WHEEL DIAMETER ........................... 12"
HUCK SPEEDS ....................................... 3 TO 30 RPM
INFINITELY VARIABLE POWER DOWNFEED ................ 0.0001" TO .002"

APPROXIMATE DIMENSIONS............................. 69"L X 65"W X 72"H
APPROXIMATE WEIGHT ................................ 4,180 LBS.

EQUIPPED WITH:
AUTOMATIC GRINDING CYCLE, WITH AUTOMATIC POWER ELEVATION
OF THE GRINDING WHEEL TO THE HOME POSITION
15 HP 3/60/220-440 VOLT SPINDLE MOTOR
10" VERTICAL RANGE
EXTERNAL COOLANT SYSTEM, SMALL COOLANT TANK
20" FINE-DIVISION ELECTRO-MAGNETIC CHUCK
VARIABLE HOLD NEUTROFIER CONTROL
12" DIAMETER WHEEL
LOAD METERS ON CONTROL CONSOLE FOR WHEEL SPINDLE & TABLE
INFINITELY VARIABLE POWER DOWNFEED
POWER RAPID WHEELHEAD POSITIONING
DRESSER
WHEELHEAD HAS RAPID RAISE & LOWER BY POWER
INTERLOCKED WITH FEED.
PRESENTLY WIRED FOR 3/60/220 VOLTS
** AS TAKEN FROM SERVICE - SEE VIDEO - GOOD RUNNING CONDITION & APPEARANCE **
** INSPECT UNDER POWER IN OUR HARRISON, NJ WAREHOUSE **
