Programming the Hiroyasu IC-980 Pro Using Programming Software

Описание: How to program the Hiroyasu IC-980 Pro using programming software. This radio is not Chirp compatible and it does not accept .csv files. But, the programming software is pretty easy to use for saving memory channels and customizing radio features.

You can download the free software at http://hamradiolife.org/software1.htm


Programming Software (PC):
The Hiroyasu IC-980 Pro comes with dedicated Windows-based programming software.
This software allows users to read from the radio, modify channels, and write changes back to the radio. The software is not Chirp compatible. CSV files and other Chirp data cannot be imported.

The software allows modification of:
Receive and transmit frequencies.
Transmit power (high/low).
Bandwidth (wide/narrow).
Transmit and receive tones.
Scan list (add/delete).
Busy inhibit settings.
Compander settings.
Scramble settings.
Channel names.

The software has an "Optional Features" section for key beeps, channel name display, dual watch, squelch settings, scan resume options, lamp control, auto power on, and other customizations.
The software is pretty simple and self-explanatory.

Dual Microphones: The device includes two mics, one on the hand microphone and one on the front panel. When using the built-in front panel mic, the user should have their lips "1-2 inches close to the mic... and speak in your normal voice".

Memory Channels: The transceiver has a 200-channel capacity; the factory loaded 40 pre-programmed channels.

Power Output: High power output is supposedly 25 watts, while low power output is estimated around 10-15 watts.

Bandwidth Options: Wide and narrow bandwidth options are available, though the user needs to know which mode is appropriate for a particular repeater.

CTCSS/DCS Tones: The software allows for setting both transmit (encode) and receive (decode) tones.

Scan Functionality: Channels can be added or removed from scan lists without deleting them from memory.

Busy Inhibit: Prevents transmitting if the frequency is already in use.

Compander: A feature that both transceivers need to have enabled in order to work; not functional on repeaters; has been reported to cause dropped signals.

Scramble: The user must be aware that using scrambling in the US is illegal on amateur radio frequencies.

Dual Watch: Can be problematic if monitoring different bands (VHF and UHF) due to a clicking relay. It's suggested that it be disabled unless a user is monitoring the same band.

Squelch: Squelch is adjustable, with additional secret menus for fine tuning.

Roger Beep: Can be turned on or off in the software, as some repeaters do not allow the feature.

Home Channel: Can be selected, but has limited utility, as the radio will default to the last used channel when powered off and on.

Microphone Selection: Can be toggled between the handheld mic and the built-in device mic. Built-in device mic has low gain.

D Noise: AI-powered noise cancellation, but may only work on transmitting, not receiving.

Power on mode: Can be set to "off" so that the radio will not automatically turn on if power is applied.

1750 Hz Tone: Must be turned off as it will create a loud beep when the mic is keyed up.


Software Setup: The user uses a Windows PC for programming.
Repeaters: The user benefits from files shared by other users, particularly for programming repeaters from the SARNET network in Florida.
Channel Naming: Channels can be named with alphanumeric characters; you can type the frequency, channel number or custom names into the channel name field.

Other Important Points:

Software Compatibility: The software is Windows-only and not compatible with Mac or Chirp.

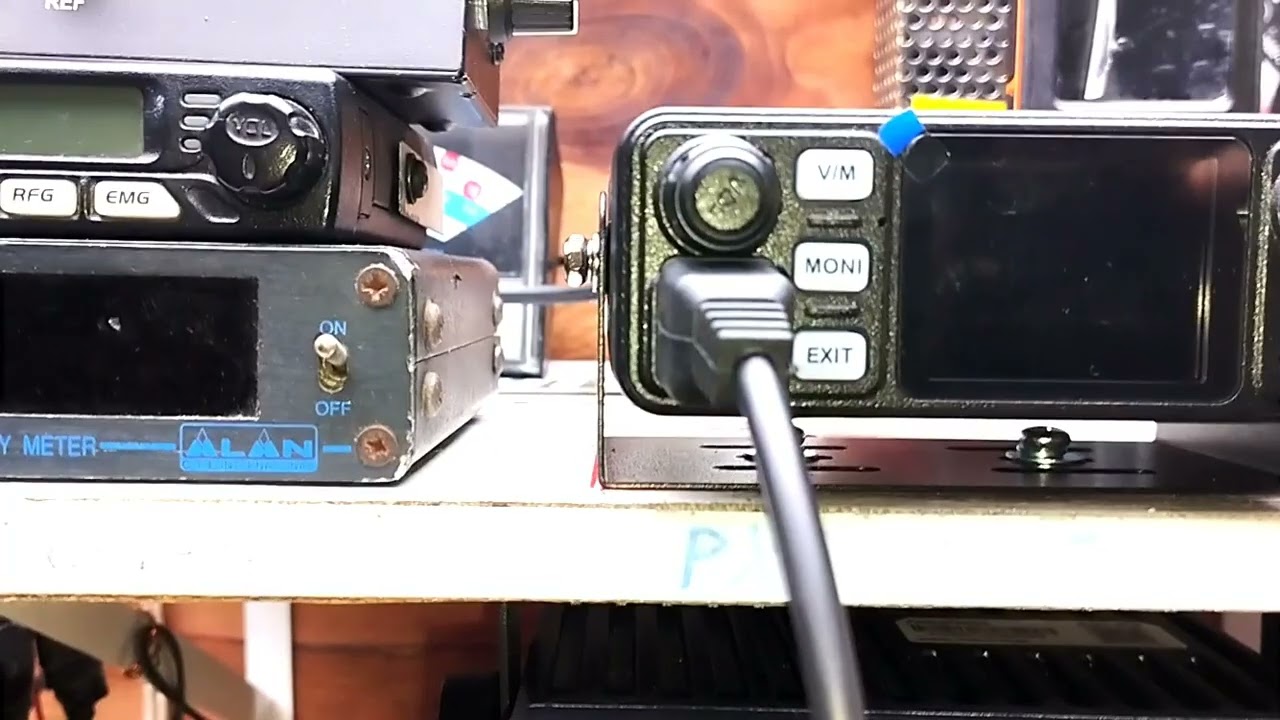

USB-C Programming: The transceiver is programmable using a certified Android USB-C cable.

Radio Cost: around $42 USD

Programming Flexibility: The device is programmable from the device itself (through the mic), but the software makes programming easier and allows for more complex customizations.

Band Switching Noise: A clicking noise can be heard if dual watch is enabled between VHF and UHF bands and while scanning.
