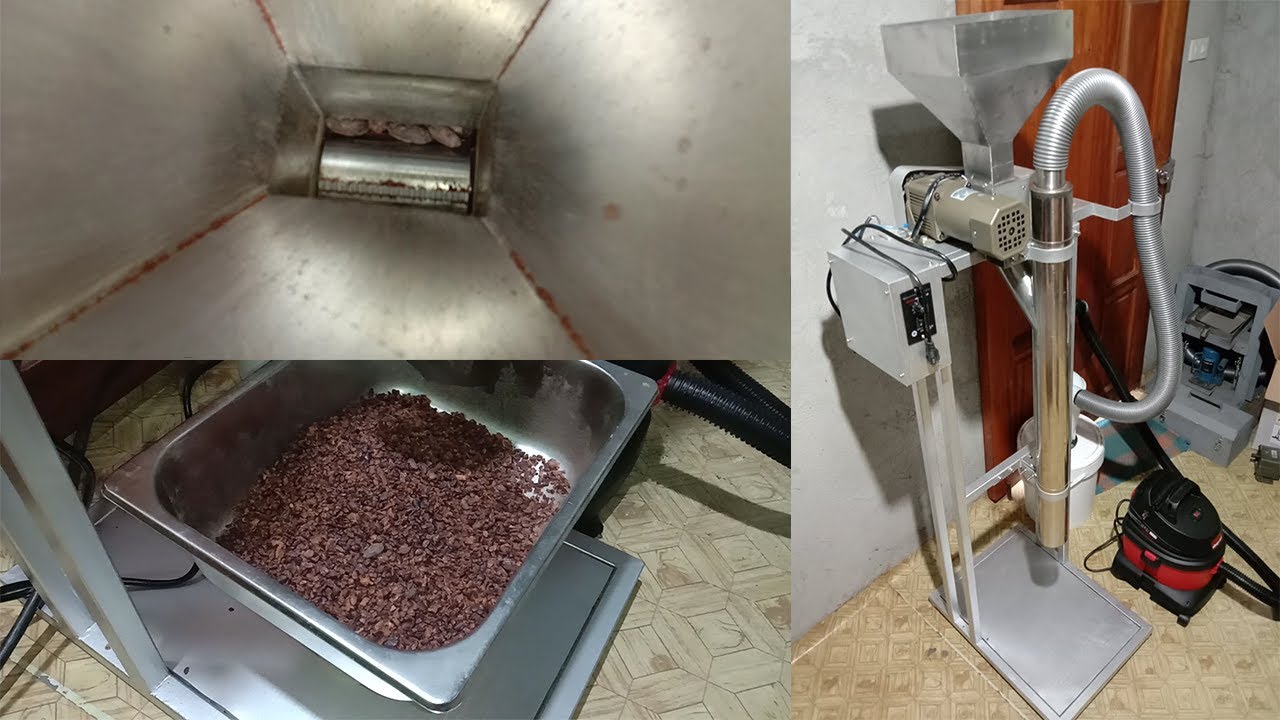

Motorized Cacao Winnower Machine

Описание: #cacaoequipments #foodprocessingequipments
This is the evaluation of our latest produced cacao winnowing machine for bean to bar chocolate making. The cracker is made of aluminum casing with stainless roller and adjustable stainless steel block. The block to roller clearance is adjustable using a filler-insert plate to achieve desired size of cracked nibs. The motor is a 90 watts gear motor with speed controller plug-in at 220VAC and is connected to the cracker using a 13-teeth sprocket. The husk- nibs separator barrel is a 3-inch x 1.5mm thick tube and is attached to a turbo charged cyclone dust separator, which is being suck by a 1100 watts wet and dry vacuum. Cyclone dust separator is installed in a lid sealed bucket which collects the husk and prevent it from going to the vacuum tank. It has a mechanical pressure adjustment which controls vacuum pressure.

This set up consists of 3 adjustments. First, the motor controller which controls the amount of beans being crack at a time. Second is the filler insert plate use to adjust the block. This dictates the sizes of the cracked nibs. The last adjustment is the mechanical vacuum pressure adjuster (air bleeder). This controls adjustment in the vacuum pressure going to the tube which allow minimal losses of nibs carried in to the husk collector bucket or to reduce the amount of husk going out with the nibs.
