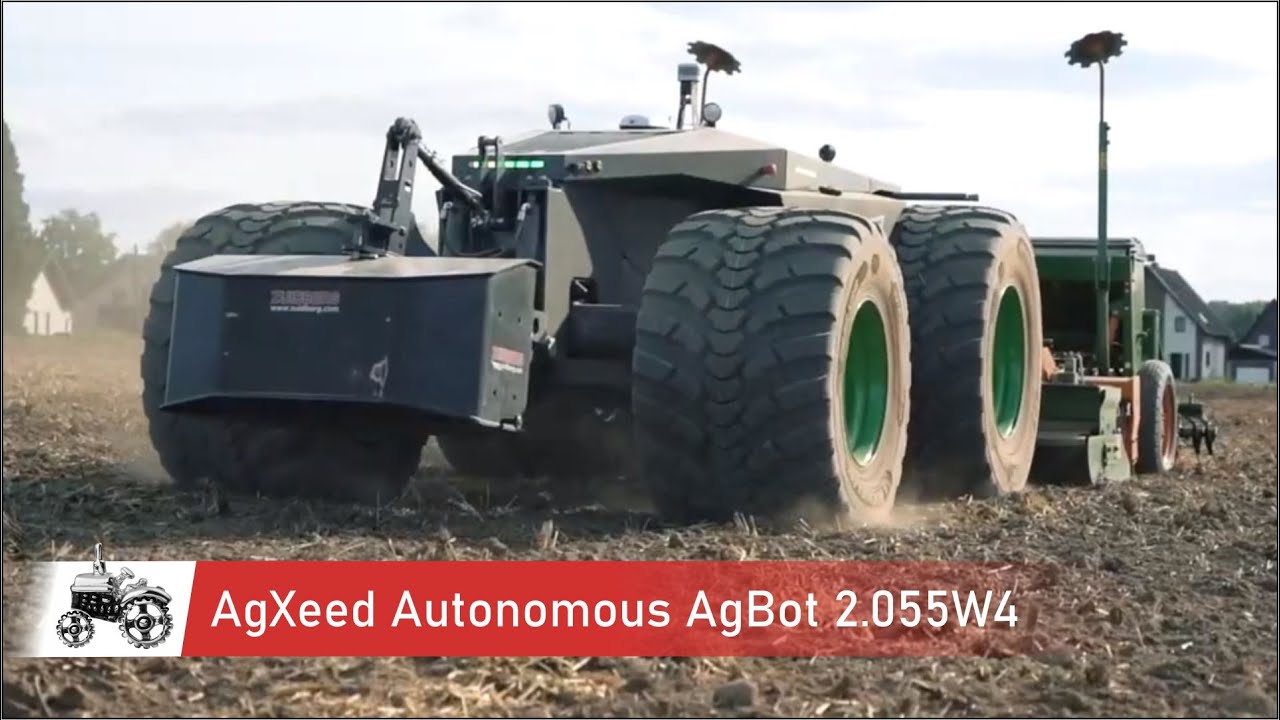

AgXeed Autonomous Wheeled Robot Tractor AgBot 2.055W4
Автор: TractorLab
Загружено: 2023-02-23
Просмотров: 9388
Описание:
AgXeed Autonomous Wheeled Robot Tractor AgBot 2.055W4
Technical Specifications
Drive Train
• 2,9l 4-cylinder Deutz Diesel Engine, stage 5 with 55kW / 75hp, max. torque of 300Nm
• 170l diesel tank
• Electric drive train with a speed range from 0-13.5 km/h
• Optional electric driven PTO (up to 55kW and 700V)
• Optional High Voltage connectors (up to 55kW and 700V) based on ISOBUS 23316
Hydraulics
• 85l/min at 210bar hydraulic pump
• Up to 3 double-acting proportional spool valves
• Optional Load Sensing
• Three point rear linkage cat 3
• 4t maximum lift capacity at hooks
• Three point front linkage cat 2
• 1,5t maximum lift capacity at hooks
Weight and Dimensions
• Length: 3850mm
• Height: 1500mm
• Width: min. 1960mm
• Wheelbase: 2400mm
• Empty weight: 3,2t
Communication and Positioning
RTK GNSS (Real Time Kinematic - Network Global Navigation Satelite System) for precise guidance and safe positioning: ± 2,5cm Communications module for bidirectional data transfer and RTK correction
