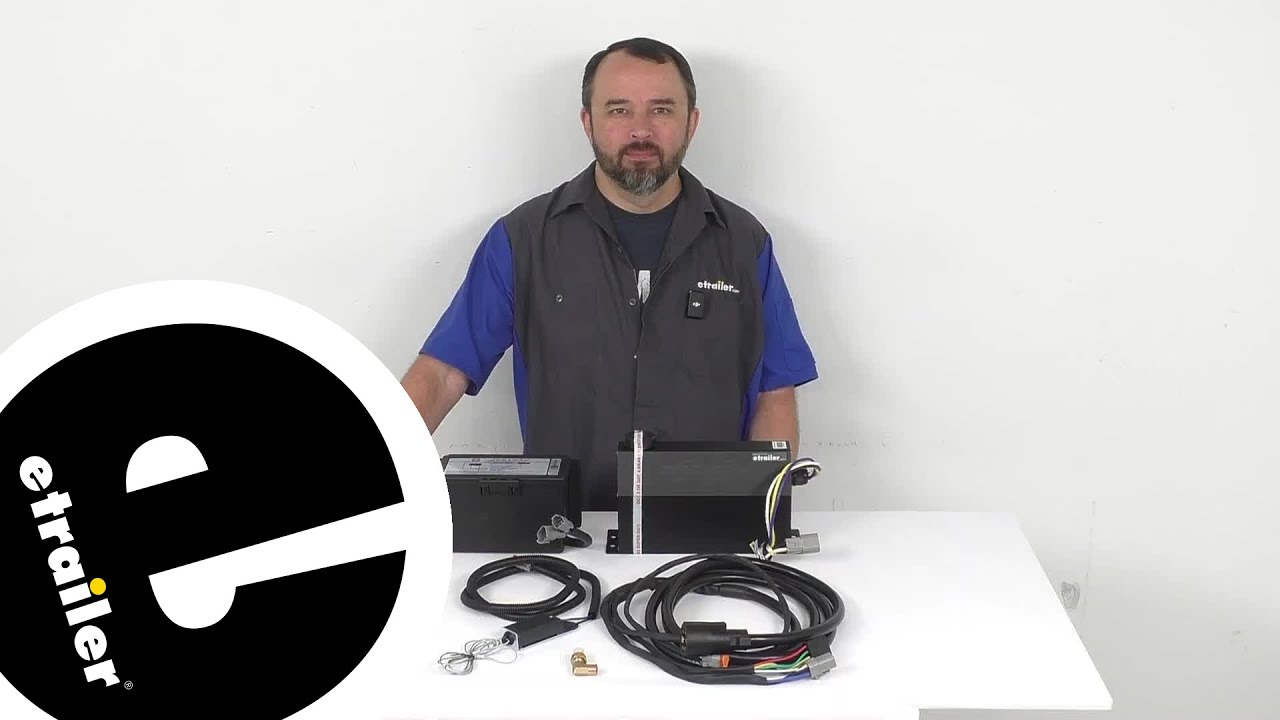

Hi, everybody. Andy here with etrailer.com. Let's take a real quick look at this DeeMaxx Alpha electric over hydraulic actuator for disc brakes. Now, this actuator is going to reach 1600 PSI in less than 0.2 seconds. So your trailer brakes are gonna respond as soon as your controller sends the signal. That level of pressure is gonna keep your trailer in sync with your truck on hills, ramps, and in stop and go traffic.
So if your current system feels slow to engage or doesn't apply consistent force, this is gonna help correct that problem. This is designed for your single tandem or triple axle trailers with disc brakes. This actuator arrives with the pump, motor, and internal wiring already mounted, the seven-way plug and breakaway switch that you see here, and our battery kit, our battery box here, are all going to be included with this kit. And the wires here are going to be clearly labeled here. And we've got little labels here on these wires here.
So you're gonna be able to know what each wire's for, what each function is. You're also going to get a wiring diagram to help you through the installation. And the sealed aluminum housing on this actuator is going to keep moisture, road spray, and salt out of the actuator. The fluid reservoir is vented and gasketed to hold DOT 4 brake fluid without leaking under pressure. You're going to get this rotating brass port, and you're gonna install that here on the other side of this actuator here.
So that's going to let you line up the brake hose without forcing a bad angle, so the system's gonna stay sealed and secure under the load. This actuator, we're looking at pretty close to 10 inches long, about 3 5/8 inches wide, and a little over six inches tall overall. And with our battery box here, I'm just gonna measure this here real quick, I didn't get the chance to measure it before our time together. A little under nine inches wide, including the mounting port of the mounting part here. And then the overall depth, about 4 1/2 inches deep.
The overall height, maybe a little over five inches tall. So this does include everything that you see here, the actuator, the battery, the breakaway battery box, as I mentioned, the cables here, and the brass port. But if you happen to have any other additional questions about this kit or any other parts that we carry here at etrailer.com, don't hesitate to reach back out to us, 'cause ultimately we wanna make sure that you're getting exactly what you want and need. Well, that's gonna wrap up our look today. I do hope that it was helpful for you. Again, my name is Andy. Thank you for joining me.
