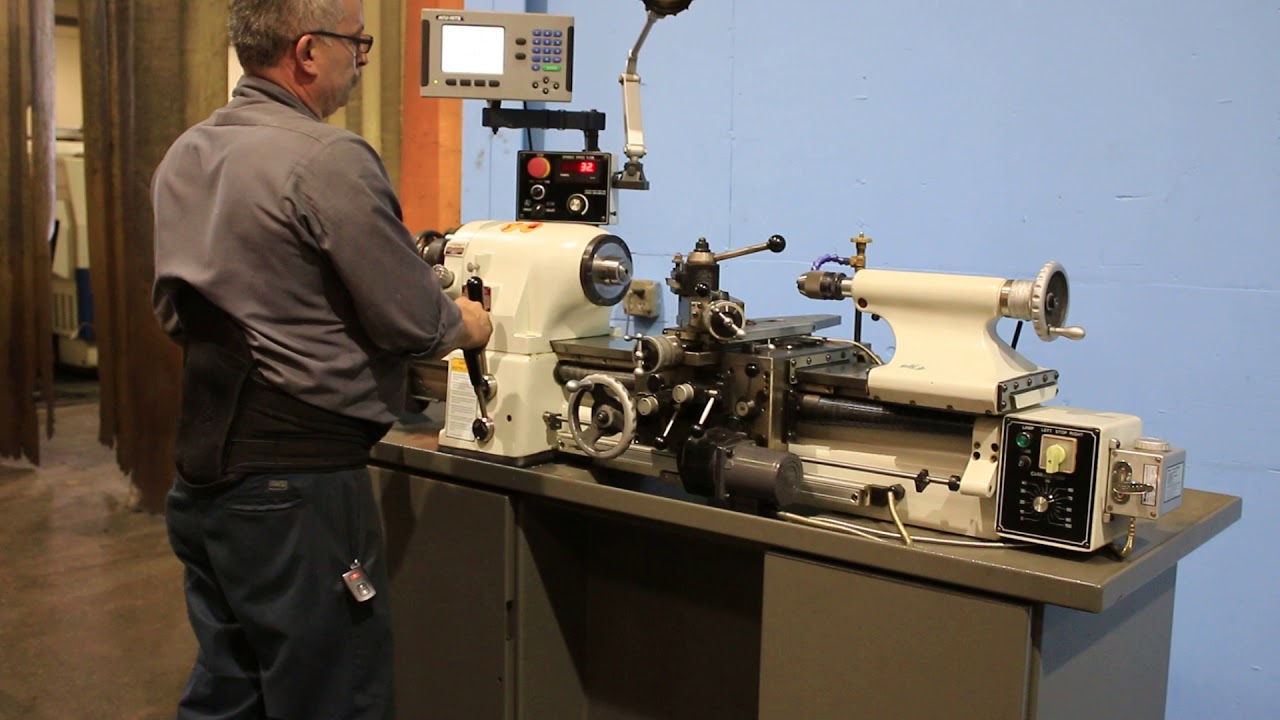

11'' Swing 18'' Centers MSC - Vectrax CTL-618EVS PRECISION ENGINE LATHE-1

Описание: VECTRAX DIGITAL VARIABLE SPEED TOOLROOM LATHE
MODEL: CTL-618EVS, S/N: 102051155,  NEW: 2014

SPECIFICATIONS:
SWING OVER BED ..................... 11"
SWING OVER CARRIAGE ................ 9"
SWING OVER CROSS SLIDE ............. 6"
DISTANCE BETWEEN CENTERS ........... 18"
COMPOUND SLIDE TRAVEL .............. 3"
SPINDLE NOSE TAPER:
    OUTSIDE ........................ 4 DEGREES (HARDINGE TAPER)
    INSIDE ......................... 10 DEGREES (5C)
SPINDLE CAPACITY:
    WITH ROUND TYPE 5C COLLETS ....  1-1/16"
    WITH STEP CHUCKS ............... 1-1/16" TO 6"
    WITH JAW CHUCKS ................ 5"
    WITH EXPANDING COLLETS ......... 3"
VARIABLE SPINDLE SPEEDS ............ 0 - 4,000 R.P.M.
CARRIAGE POWER FEED RANGE .......... 5/16 - 7 I.P.M.
CROSS SLIDE POWER FEED RANGE ....... 5/16 - 4 I.P.M.
TAILSTOCK SPINDLE DIAMETER ......... 1-3/8"
TAILSTOCK SPINDLE TAPER ............ #2 MT
TAILSTOCK SPINDLE TRAVEL ........... 3-3/4"
INCH THREADING RANGE (36) .......... 11 - 108 T.P.I.
METRIC THREADING RANGE (36) ........ 0.275 - 2.7 MM
APPROX WEIGHT ...................... 2,300 LBS

EQUIPPED WITH:
E.V.S. SYSTEM (ELECTRONIC VARIABLE SPEED):
   3 HORSE POWER MOTOR WITH VARIABLE FREQUENCY DRIVE
   DIGITAL SPEED DISPLAY
DUAL GEARBOX FOR PRECISION ENGLISH OR METRIC THREAD CUTTING
ACU-RITE TWO AXIS DIGITAL READOUT
HARDENED AND GROUND BED WAYS, LEAD SCREWS, AND SPINDLE
TURCITE COATING ON CARRIAGE AND BED
QUICK-ACTION COMPOUND SLIDE FOR THREADING
BALL BEARING QUICK ACTING 5C COLLET CLOSER
ASSORTMENT OF 5C COLLETS
5" 3-JAW BISON CHUCK
ALORIS QUICK CHANGE TOOLPOST
LIVE CENTER FOR TAILSTOCK
HALOGEN WORK LIGHT
COOLANT PUMP IN BASE
MACHINE HAS A MULTI TAP TRANSFORMER
   PRESENTLY WIRED FOR 220 OPERATION

INSPECT UNDER POWER IN OUR NEW JERSEY WAREHOUSE
