How the MOC3021 Optocoupler Works: A Beginner's Guide!

Описание: The MOC3021 is an optocoupler, also known as an optoisolator, designed to provide
electrical isolation between input and output circuits. It is widely used in various
electronic applications where isolation is required to protect sensitive components
or circuits from potentially damaging voltages or currents.

With its compact size and reliable performance, the MOC3021 is a popular choice among
engineers and hobbyists alike. It consists of an infrared emitting diode (LED) optically
coupled to a phototriac, housed within a single package. This arrangement allows for
the transmission of signals from the input side to the output side without any direct
electrical connection.

One of the key features of the MOC3021 is its ability to provide high isolation voltage,
typically around 5000 volts, ensuring safe operation even in demanding environments. This
makes it suitable for use in industrial control systems, power supplies, motor controls, and other high-voltage applications.

The MOC3021 is designed to be compatible with standard triac or thyristor drivers, making it versatile for use in various switching and control circuits. It offers fast switching speeds and low input current requirements, making it energy-efficient and ideal for applications where power consumption is a concern.

Furthermore, the MOC3021 is easy to integrate into existing designs, thanks to its straightforward interface and standardized pin configuration. It operates over a wide temperature range and exhibits excellent reliability, ensuring consistent performance over its lifespan.

Whether used for signal isolation, voltage regulation, or circuit protection, the MOC3021 optocoupler offers a reliable solution for achieving electrical isolation and enhancing the overall robustness of electronic systems. Its versatility, compact design, and high-performance characteristics make it a popular choice among engineers seeking to improve the safety and reliability of their designs.

------------------------------------------------------------------------------------------------------------------------------------
Chapters:

0:00 - Intro
0:10 - Description of Optocoupler MOC3021
0:33 - MOC3021 Optocoupler Pin Configuration
1:02 - MOC3021 Optocoupler Features
1:39 - MOC3021 Optocoupler Applications

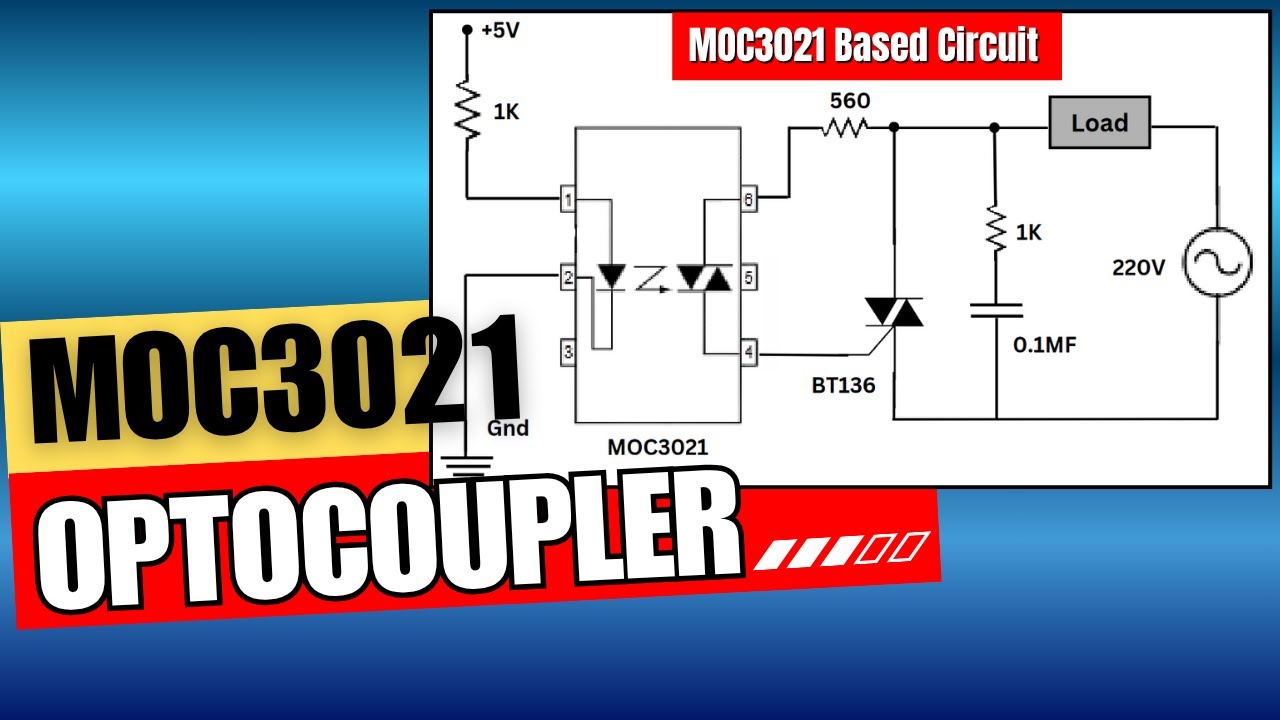

2:05 - MOC3021 Based Circuit
3:36 - MOC3021 Based PWM Circuit
------------------------------------------------------------------------------------------------------------------------------------
