Mazda RX-8 Aisin AZ6 (Part 1) - Full Gearbox Disassembly & Engineering Analysis
Автор: Olekgaszczak
Загружено: 2025-10-30
Просмотров: 1535
Описание:
In this episode, I perform a complete teardown of the Aisin AZ6 gearbox from a Mazda RX-8, following a precise engineering-based approach with full measurement and documentation.
This video covers:
step-by-step mechanical disassembly,
custom-made SST tool fabrication for gear removal,
axial and radial run-out measurements,
inspection of bearings and synchronizers,
cleaning and restoration of the gearbox housing,
organizing all components for reassembly.
The project aims to document the entire mechanical structure and tolerances of the Aisin AZ6, providing detailed insight for rebuilders and enthusiasts.
Coming next (Part 2) - Reassembly, adjustment, and installation in the RX-8.
Chapters
00:00 Intro
00:17 External Teardown
06:54 SST Tool Fabrication
09:31 Pressing out 6th Gear
12:08 Internal Teardown

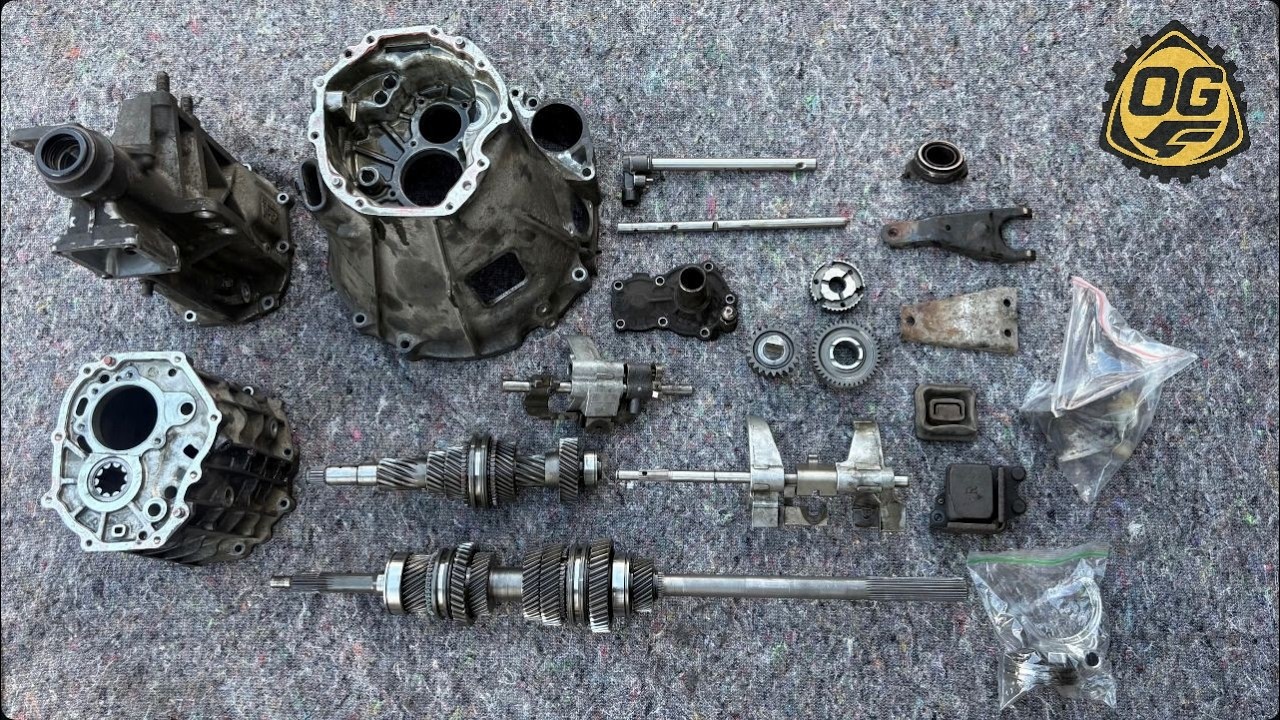

16:06 Parts Overview
18:30 Case Components Disassembly
20:24 Parts Restoration
26:57 Bearing Removal
30:31 Runout Measurement
34:25 Gear Removal
37:00 Synchronizer Measurement
41:03 Final Disassembly
