automatic fire extinguisher container labeling MC orientation sticker labeller étiqueteuse linéaire
Автор: Penglai Machines
Загружено: 2020-06-24
Просмотров: 152
Описание:

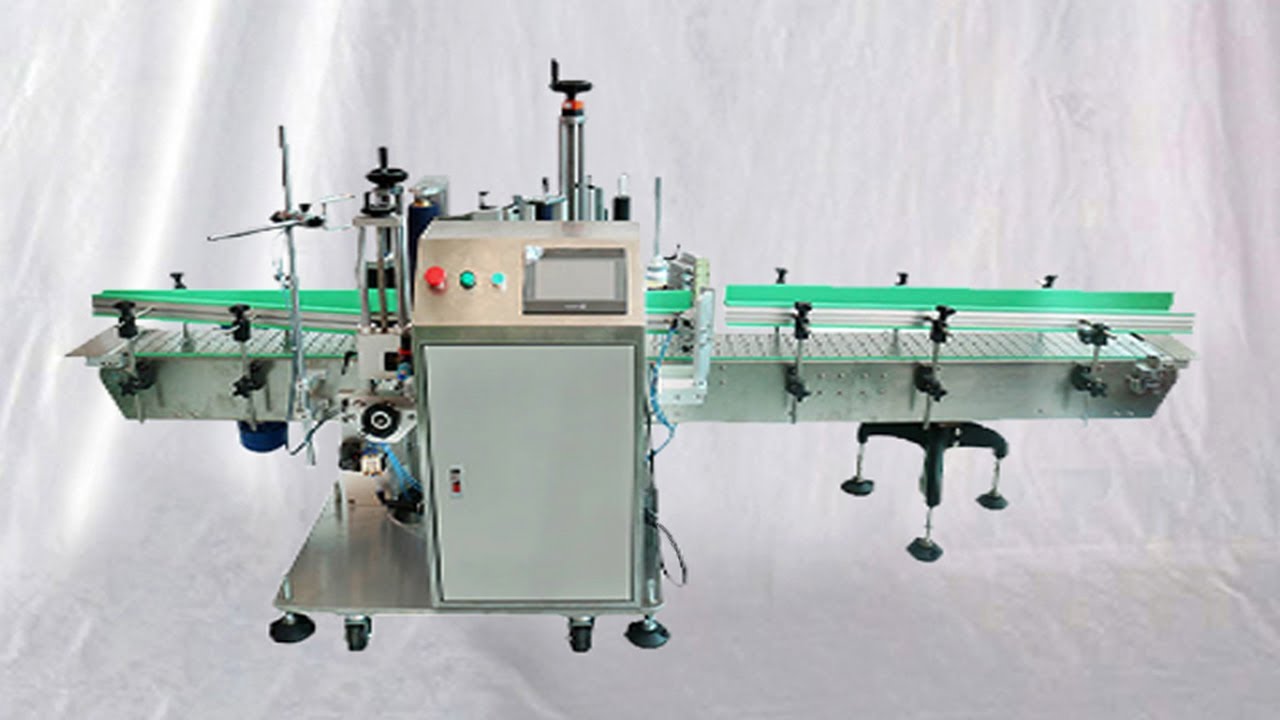

The labeller is specially designed for the big objects. It can label edible oil square bottle on three sides labeling and cylindrical handle with the handle of the circular fixed-point lableing,Such as:5L square barrel,1.8L cylinder oil bottle labeling and the like.
Technical Parameter of sticker labeling machine
Model YX-640A
Labeling Accuracy ±1mm
Labeling Speed 10-30pcs/min
Applicable Dimensions
5L barrels,1.8L round bottle,fire extinguisher etc
Applicable Labe Size Length:20-520mm Width:20-190mm
Power Supply 220V/50HZ
Weight 185KG
Machine Size(LxWxH) About 1950mm x 1200mm x 1530mm
Delivery Time 30-35ays
Type Manufacture, Factory,Suppier
Packaging Wooden box
Shipping Method Sea.Air and Express
Payment Term L/C,T/T,Money Graml etc
Configuration of machine labeling:
Item Name Brand
PLC MITSUBISHI
Touch Screen WEINVIEW
Inverter DANFOSS
Servo motor Delta
Switch Delta
Optical OMRON
Label Sensor Leuze
Servo motor Delta
Features of model YX-640A labeling machine
Powerful function: Single-label and double-label sticking on bottle-shaped objects are possible with just one device. For double-label sticking,space between the two labels can be adjusted flexibly. The optional circumferential positioning detection device can position stick on the circumferential surface;
High degree of superposition: the coping mechanism combined with the three-axis positioning mechanism has eliminated bottle vertical movement and improved labeling accuracy;
Automatic bottle separation: The spring-type automatic bottle separation can effectively eliminate unsmooth bottle separation due to the discrepancy of bottle height, thus improving the stability;
Touch-screen-based control: the man-machine interaction interface, with intuitive parameter modification, can guide you through all steps of any operation and enable shift between functions.Intelligent control Automatic photoelectric tracking that avoids idle labeling while correcting and detecting labels automatically, so as to prevent mislabeling and label waste;Sturdy and durable It is made of stainless steel and premium aluminum, meeting the GMP production requirements.
Automatic shutdown: labeled bottles numbering, power saving (the device will automatically change into standby mode if no labeling is detected within a given time),indication of labeled bottles and protection of parameter setting (hierarchical authority to parameter setting) bring much convenience to production and management.
Details on labeling machine model YX-640A big objects labeller:
For more information about the various machines filling packing equipments like Model YX-640A automatic fire extinguisher container labeling MC orientation sticker labeller étiqueteuse linéaire from our superb cosmetic machinery factory,plz browse our another website business video / mrjackdu007 as well as follow PENGLAI INDUSTRIAL CORP business website http://penglaichina.com
