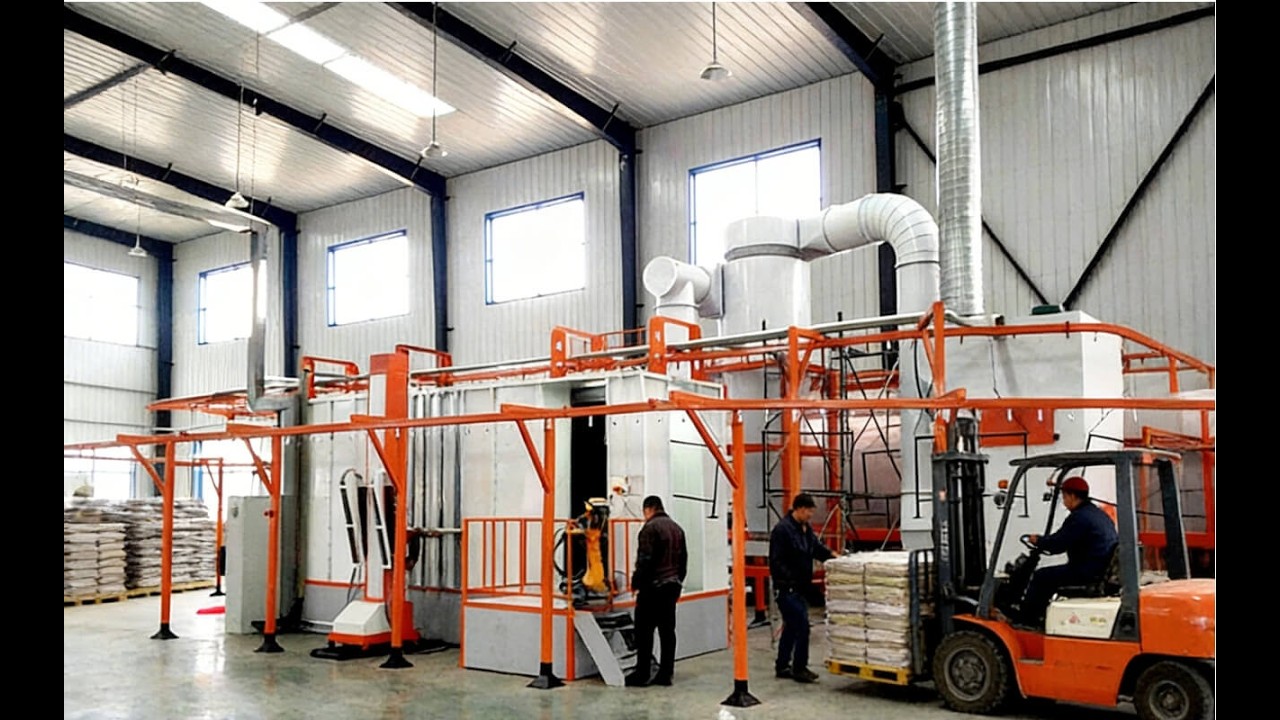

The operation of a reciprocating spraying machine resembles a meticulously choreographed dance.

Описание: www.stpowdercoating.com

Electronic Control System – Stable AC 220V control with reliable low-voltage DC output.
Electrostatic Spray Gun – 0–100 kV negative output for efficient and uniform powder coating.
Pneumatic Control Unit – Precise airflow control with clean compressed air requirements.
Reciprocator System – Stepless speed adjustment, high load capacity, and smooth vertical motion.

The operation of a reciprocating spraying machine resembles a meticulously choreographed dance. Driven by a motor, the spray gun moves back and forth along a specific track. This track can be programmed as needed, allowing the gun to uniformly spray coating material throughout its motion. It acts like a precise painter, applying color stroke by stroke onto the object's surface.

Servo Motor + Planetary Reducer: Powerful Momentum, Millisecond Response

• Driven by a servo motor combined with a planetary reducer, the 5A reciprocating machine delivers robust and superior dynamic performance.

• Millisecond-level response speed ensures rapid start-stop and precise path control.

Utilizes a high-quality digital frequency converter.
Non-wear three-phase motor drive for simple maintenance.
Stroke and speed can be easily adjusted as needed.
Fully powder-coated body with tank tread-style cable carrier.

This Frequency Conversion Reciprocator is an essential component for modern powder coating lines, specifically engineered to integrate seamlessly with advanced powder coating machines. It serves as a fixed-gun automatic spraying unit in electrostatic powder coating and electrostatic powder spraying production systems, delivering precision and reliability where it matters most.
Suitable for high-demand applications such as powder and paint spraying

Comprehensive control program ensures precise positioning
Easy to learn and operate
Adaptable to various complex environments and high-precision process requirements
Reciprocating lifting mechanism with high-pressure imported polyurethane wheels
Product Features
1. Robotic Automatic Spraying Our spraying robot ensures precise path and output control, guaranteeing uniform film thickness and a defect-free finish. With a first-pass yield exceeding 95%, it enhances quality across the powder coating line.
2. Automated Conveyance Integration Fitted with synchronized conveying systems, our robotic cells increase production efficiency by 2–4 times compared with manual or semi-automatic powder coating machines.
3. Continuous Automated Operation The complete powder coating line requires only 1 technician and 2 assistants, drastically cutting labor costs. It supports 24/7 unmanned operation with rapid cycle times, achieving output levels unattainable by manual spraying.
4. High-Level Automation Functions Equipped with one-touch start, automatic color change, and synchronized motion control, our spraying robot minimizes manual input and ensures consistent, repeatable results across batches.
5. Adaptable Curing Oven The matching curing oven—adjustable from ambient temperature to 300°C with a uniformity of ±5°C—ensures optimal curing performance for various coatings within the powder coating line.

Please provide detailed information so that we can provide you with a more accurate solution.

What are the Maxminum and Minimum dimensions of your workpieces (L × W × H)?
What is the maximum weight of each workpiece? If available, please also provide product photos.
How many workpieces do you plan to coat per day (based on 8 or 16 working hours) or per month?
Which heating source do you prefer, such as electric power, diesel, fuel oil, or natural gas?
What are the dimensions of your workshop (L × W × H)? If possible, could you share a layout or drawing of the facility?
Prior to coating, do you require spray pre-treatment to prepare and clean the product surface?
What voltage and frequency standards are used in your country?
