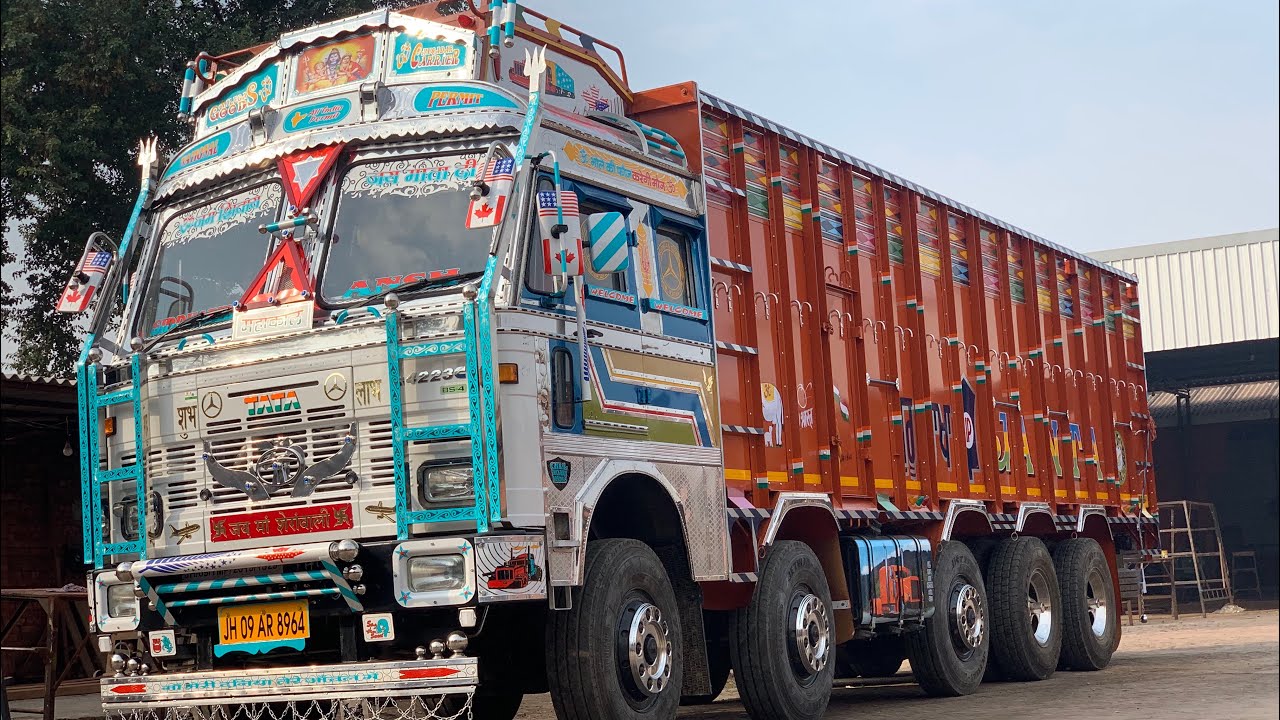

LPT 4223 Cowl chasis 2019 model complete review

Описание: Tata LPT 4223 CRe is the new 14 wheeler truck from Tata trucks stable as per increased axle load norms. The new 14 wheeler Tata truck now offers a maximum GVW of 42000 Kg with tubeless tyres option and slightly lower Gross Vehicle Weight with different tyre combinations. Tata LPT 4223 CRe is powered by Cummins ISBe 5.9 CRDi engine with SCR technology & produces a maximum power of 228 HP. This new 14 wheeler Tata truck in 10x2 axle configuration also comes with a best in class warranty of 6 years / 6 lakh Kms on driveline. Tata LPT 4223 CRe is available in both pusher lift axle as well as tag lift axle options, with different load body length options suiting your application. The new 14 wheeler Tata 4223 CRe truck comes with advanced features like multi drive mode & gear shift advisor. To know more about Tata 14 wheeler truck price, submit your interest for us to get back to you.
Less

Overview of Tata LPT 4223 CRe 10x2
GVW
42000 Kg (max GVW with Tubeless tyres)
39000 Kg (min GVW with Tube type tyres)
Engine
Cummins ISBe 5.9 CRDi
SCR Technology
Power (Max.) 228 HP@2500 rpm
Torque (Max.) 810 Nm@ 1000-1800 rpm
Axle Configuration 10x2
Vehicle Configuration
Face Cowl and chassis
Cabin and chassis
Cabin with load body options
Load Body Options
Fixed Side Deck
High Side Deck
Loading Span
Pusher Axle Option: 27.5 ft, 31.7 ft
Tag Axle Option: 27 ft
Warranty
6 Years / 6 Lakh Km on driveline
3 Years / 3 Lakh Km on vehicle
Service Interval 80,000 Km (Oil change)
Additional
Multi Drive Mode: Heavy, Light
Gear Shift Advisor
Engine & Performance of Tata LPT 4223 CRe 10x2
Engine
Cummins ISBe 5.9 CRDi
SCR Technology
Fuel Injection System Common Rail
Engine Displacement 5883 cc
Engine Cylinders 6
Power (Max.) 228 HP@2500 rpm
Torque (Max.) 810 Nm@ 1000-1800 rpm
Clutch
380 mm dia
With clutch booster
Transmission 6 speed manual (6F+1R)
Gearbox G950 OD
Gradeability 19%
Max Speed 80 Kmph
Emission Norms Compliance BSIV
Fuel Type Diesel
Fuel Tank Capacity
300 Litres (Pusher axle)
365 Litres (Tag axle)
Electricals / Battery
2x12V, 120 Ah
Alternator: 90 Amps
Design & Configuration of Tata LPT 4223 CRe 10x2
GVW
42000 Kg (max GVW with Tubeless tyres)
39000 Kg (min GVW with Tube type tyres)
Vehicle Configuration
Face Cowl and chassis
Cabin and chassis
Cabin with load body options
Load Body Options
Fixed Side Deck
High Side Deck
Loading Span
Pusher Axle Option: 27.5 ft, 31.7 ft
Tag Axle Option: 27 ft
Cabin Type Signa Sleeper cabin
Cabin Tilt mechanism Hydraulically tiltable
Chassis Frame Ladder type with cross members
Axle Configuration 10x2
Front Axle
Forged I Beam, Reverse Elliot Type
Twin steer axle
Rear Axle
RA 110 + RA 910
Pusher Lift axle
Tag Lift axle (Optional)
Front Suspension
Parabolic leaf springs
With telescopic shock absorbers
Rear Suspension
Semi-elliptical leaf springs
With Bell crank mechanism
Anti-Roll Bar Front and Rear (Optional)
Tyres
295/80 R22.5 (Tubeless)
10R20-16 PR Tube (Optional)
14+1 tyres
Wheelbase
6750 mm (Pusher axle)
6255 mm (Tag axle)
Turning Circle Diameter 23.25 m
Ground Clearance 210 mm (at rear drive axle)
Overall Length
10880 mm (Pusher axle)
10807 mm (Tag axle option)
Overall Width 2434 mm
Front Overhang 1260 mm
Rear Overhang
2155 mm (Pusher axle)
800 mm (Tag axle)
Front Track 2086 mm
Rear Track 1817 mm
Chassis Depth 285 mm
Chassis Flange width 65 mm
Chassis Thickness 7 mm
Features & Comfort in Tata LPT 4223 CRe 10x2
Cabin Suspension Fully suspended
Steering Type Power Steering
Steering Adjustment Tilt and telescopic
Driver Seat Type 6 way adjustable
Air Conditioner (A/C) Optional
Openable Quarter Ventilation Glass No
Instrument Cluster Digital
Telematics / GPS Tracking Optional
Power Windows No
Music System No
Mobile Charging Point Available in Cabin option
Bottle Holder Available in Cabin option
Automatic Transmission No
Cruise Control No
Additional Gear Shift Advisor
Safety in Tata LPT 4223 CRe 10x2
Service Brakes
Air brakes
With automatic slack adjuster
Parking Brakes
Graduated valve controlled spring brake
Acting on rear axle
Exhaust Brake Yes
ABS Yes
Anti-Roll Bar Front and Rear (Optional)
Differential Lock No
Seat Belts Yes
Reverse Parking Buzzer Yes
Fog Light No
Tubeless Tyres Optional
