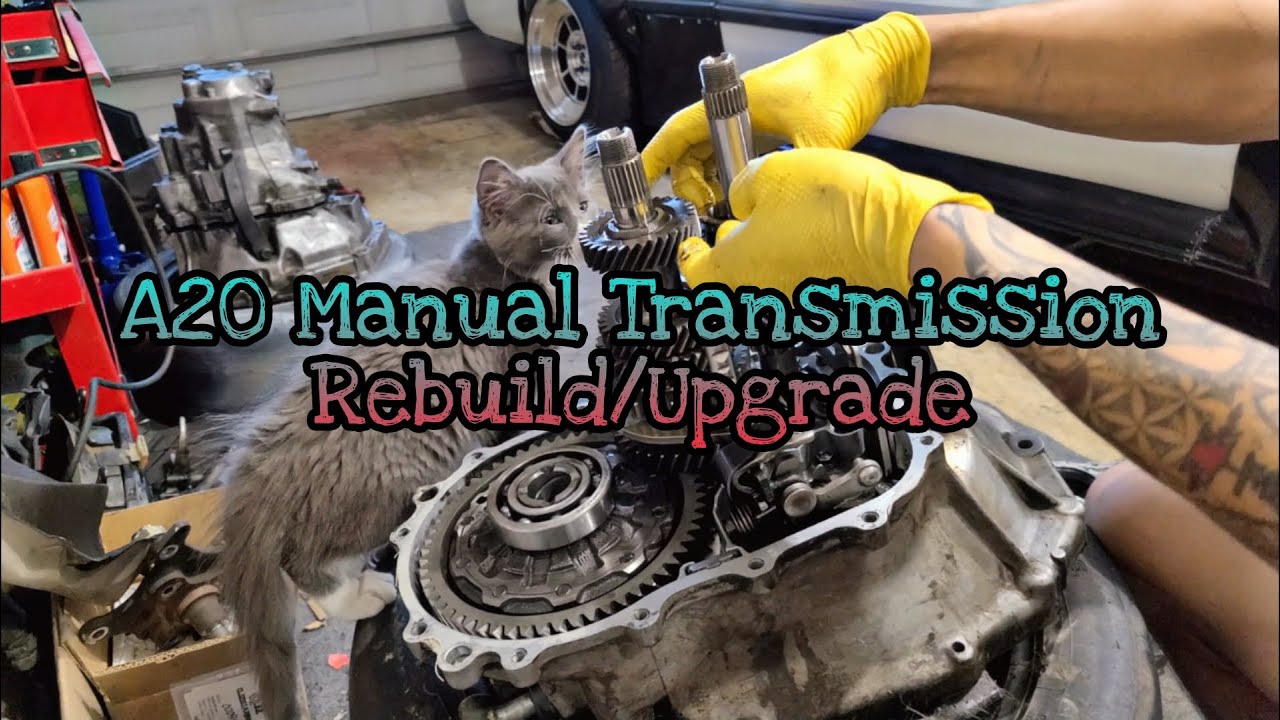

A20 Manual Transmission Rebuild/Upgrade

Описание: Timestamps down below
I will show you the process of rebuilding (Bearings, Synchros, and Seals) a manual A20 transmission commonly found in the 3rd generation Honda Accord (1986-89) and the 2nd gen Honda Prelude (1982-87). This video "might" also be helpful for those looking to rebuild a 1st gen Acura Integra (1986-89) manual transmission as well. I upgraded the transmission with a early 1988-91 B18a/B16a (small spline input shaft) differential with a Phantom grip lsd installed, 1st gen Integra D15a1/D16a1 1st-4th gears and 4.2 final drive (gearing and F.D is shorter than the Accord), Hybrid Racing heavy duty detent springs, and Speedfactory titanium transmission bolts (D series).

Transmission Disassembly :    • A20 Transmission Disassembly Part 1 of 2
Transmission Assembly :    • A20 Transmission Assembly Part 2 of 2
Transmission Removal :    • 1986-89 Honda Accord Manual Transmission R...

3geez wiki (Transmission case torque sequence) Download the "Master Manual"
http://3geez.wiki-tv.com/Honda_servic...

Rebuild Kit: https://www.ebay.com/itm/271931848768

Hybrid Racing Detent Springs: https://www.hybrid-racing.com/product...

Speedfactory Titanium Bolts: https://www.speedfactoryracing.net/co...

Other parts not used in this video but are compatable
Carbon Synchros part# SYN111
https://shop.synchrotech-transmission...

Mfactory LSD part# MF-TRS-05B16
https://www.ebay.com/itm/292931257838

Wavetrac LSD part# 60.309.160WK
https://www.ebay.com/itm/283509345200...

0:30 Introduction
1:55 Parts list
8:06 Detent Springs
8:36 Throw out Bearing
10:33 Passenger side Axle seal
11:38 transmission teardown quick refresher
12:08 Accord and Integra half case differences
13:08 5th gear Synchros
16:33 Roller Bearing
17:03 4th gear Synchros
18:36 3rd gear Synchros
20:17 Countershaft Synchros
22:29 Countershaft Bearing (Bellhousing)
27:03 Mainshaft Bearing Removal
28:31 Input shaft bearing seal
29:28 Shift rod seal replacement
33:45 Shift rod install
36:51 A series and B series differential overview
38:12 Speedo ring removal
38:56 Slide Hammer Differential Bearing(s) removal
40:31 Ring Gear removal
41:48 A series and B series ring gear comparison
42:18 Speedo ring gear install
43:48 Differential bearing(s) install
45:28 Ring Gear install
46:25 Mainshaft Bearing Install
48:42 Overview and torque specs
48:59 Countershaft Bearing (Halfcase)
52:44 Driver side Axle seal
53:10 Transmission Case Torque Specs (Torque sequence in Description above)
54:52 Clutch Cable adjustment
55:48 Test Drive
58:56 Phantom Grip test

Disclaimer: I am not a professional automotive mechanic. My videos are for entertainment purposes only. You work on your vehicle at your own risk. I am not responsible for damage to your vehicle, property, personal injury and or death.
