How to Install Silent+ Mini Orange

Описание: This “How To” video demonstrates how to install a Silent+ Mini Orange above ceiling for AC wall unit.

0:00:06 – Remove factory hose.
0:00:09 – Fit rubber elbow and straight connector to orange inlet hose. Secure with cable ties.
0:00:27 – Offer reservoir to inlet hose against the unit and measure the length. Cut to fit if needed.
0:00:42 – Fit vent hose and outlet PVC tube securing with cable ties.
0:01:07 – Fit wall fixing pad on side of the reservoir.
0:01:16 – Before fitting, wet filter and squeeze the air out.
0:01:28 – Connect reservoir to the inlet hose and secure with cable ties.
0:01:46 – Fit assembly to drain pan/unit and secure with cable tie.
Pull outlet PVC tube through.
0:02:29 – Draw reservoir’s power cable and outlet PVC tube above ceiling (where pump will be placed).
0:02:58 – Connect pump to power supply.

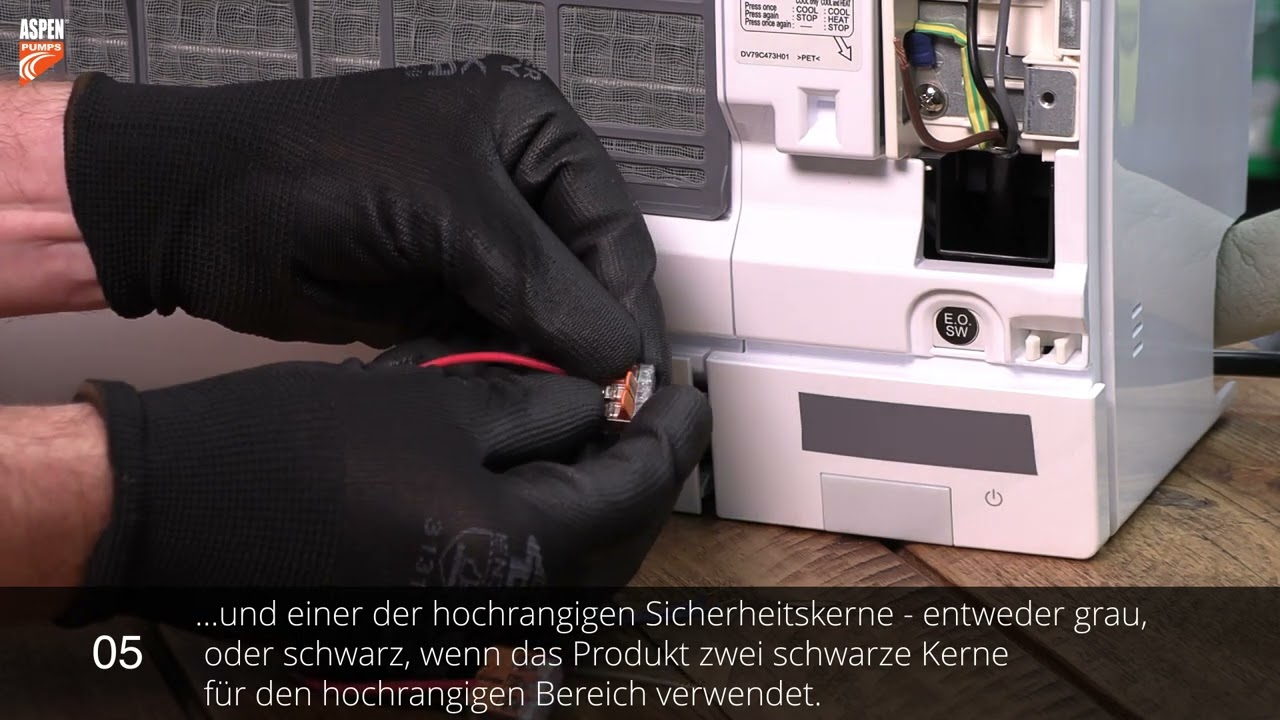

Please watch our video “How to Wire a Condensate Removal Pump” for detailed step by step guide on wiring.
   • Видео
0:03:08 – Place pump against the wall, check discharge hose length to pump outlet and mark position of the pump.
0:03:18 – Secure a pump wall mount.
0:03:37 – Offer pump against the pump wall mount and check position.
0:03:43 – Fit discharge hose to pump outlet.
0:03:54 – Secure pump in the wall mount.
0:04:00 – Connect reservoir’s plug.
0:04:09 – Connect Plug & Play cable.
0:04:16 – Fit outlet PVC tube.
0:04:23 – Secure all connections with cable ties.
0:04:36 – Commission the pump.
Check all connections and operation.
