LCS-60T-CQ1 Pneumatic Installation: Connecting Air Pipes & Cylinders

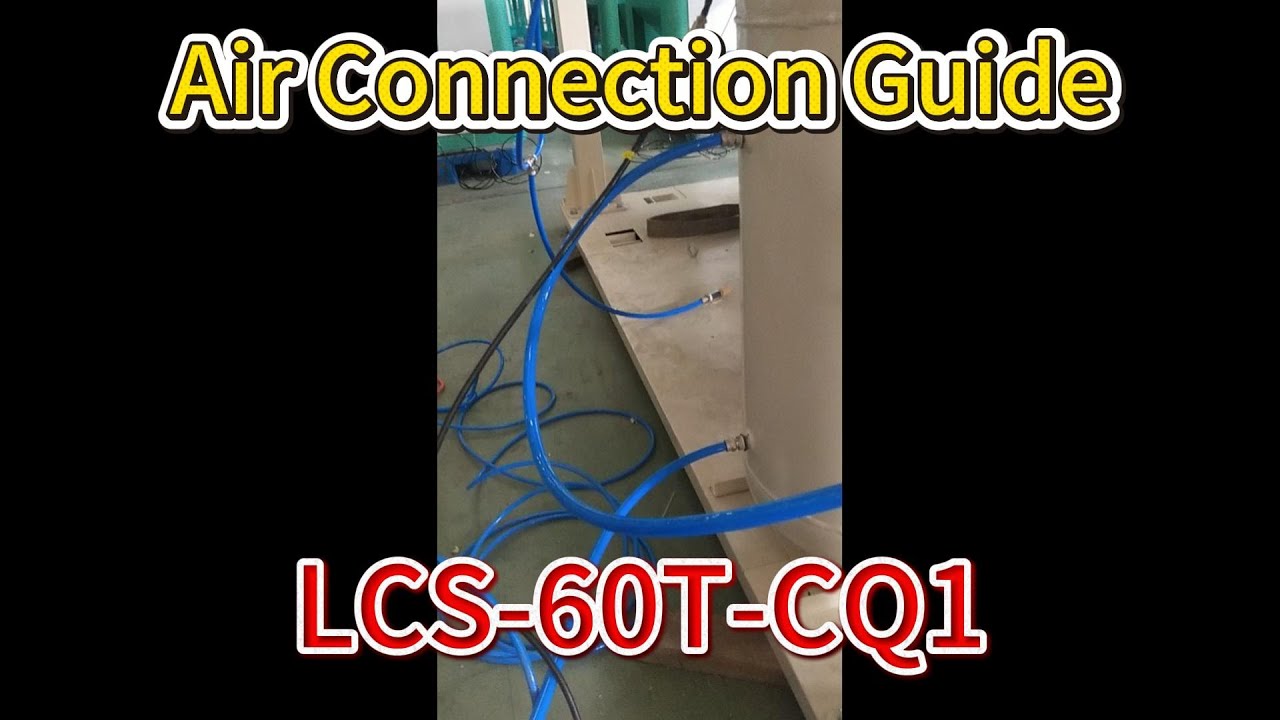

Описание: This video guides you through the pneumatic system installation for the LCS-60T-CQ1 Ton Bag Scale.
It covers connecting the main air supply, the cleaning air gun, and distributing the air pipes to the lifting cylinders.
⚠️ CRITICAL WARNING (1:20):
Pay close attention to the Release Air Pipes (Exhaust Pipes) shown at 1:20. These two blue pipes must remain straight and unblocked. Do not seal them, or the machine cannot exhaust air!
📋 Pneumatic Connection Steps:
0:00 - Main Air Supply
Connect the main air pipe to the Filter Regulator unit. One side is Inlet, the other is Outlet going to the machine.
0:30 - Air Gun Connection
The red spiral hose connects to the separate branch for manual cleaning use.
0:44 - Vertical Routing
Run the blue air pipe up along the column to supply air to the top mechanism.
1:13 - Exhaust Pipes (Don't Block!)
Identification of the exhaust pipes. Keep them hanging down freely for air release.
1:45 - Cylinder Connections
Splitting the air supply into Red and Blue tubes.
Connect them to the Left and Right cylinders respectively.
Ensure connections are tight to prevent leaks.
For pneumatic diagrams or support, please contact Jialong Packaging Machinery.
