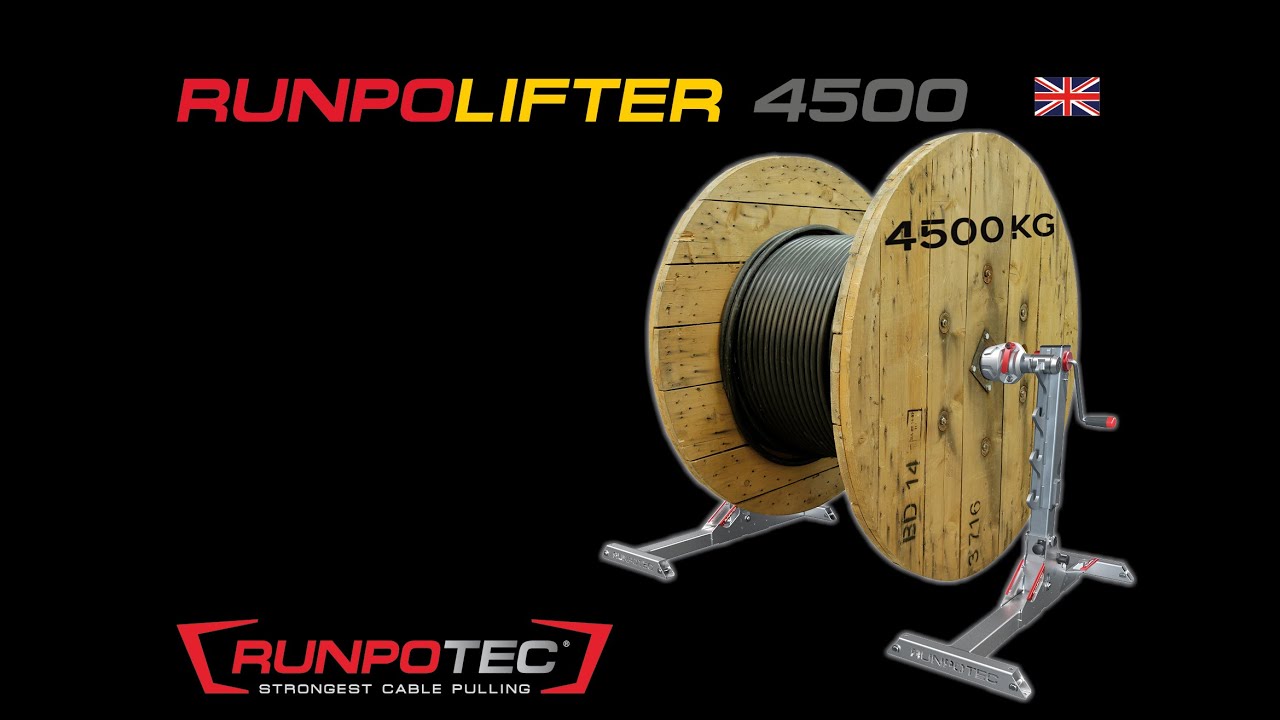

RUNPOLIFTER 4500 cable drum lifter from RUNPOTEC

Описание: The RUNPOLIFTER 4500 is a foldable cable drum lifter that is capable of lifting drums with a maximum diameter of 1600 mm and a maximum weight of 4500 kg. Its lightweight construction (22 kg per lifting support) means it can be easily transported, yet it still maintains excellent standing properties on a wide variety of floor coverings. The two lifting supports are equipped with a 2-stage gearbox. The fast gear is used for the idle stroke and the working gear is used for the load stroke. Switching between the two gears can be controlled by pulling out the crank. When using the RUNPOLIFTER 4500, it is not necessary to pin the raised load because the gearbox is equipped with a self-locking spindle. The included drum shaft features two plain bearings that enable the respective drum to be rolled comfortably without any trouble. Drum shafts are available in followed length: 1150 mm, 1350 mm or 1600 mm. The two included centring cones each have a quick-release fastener that enable the drum to be fixed quickly and centrally in place. Drums with a max. inner diameter of Ø 110 mm can be secured here. www.runpotec.com

Optimum area of application: for lifting and then rolling cable drums with a diameter of up to 1600 mm, a wide of max. 1100 mm and a max. weight of 4500 kg
Scope of delivery: 1 x RUNPO Lifter 4500 incl. 1 x drum shaft (L1150 or L1350 or 1600) and 2 x centring cones
