Blackwell A Winning colliery overlay of coal mine tunnels in the Threequarter seam

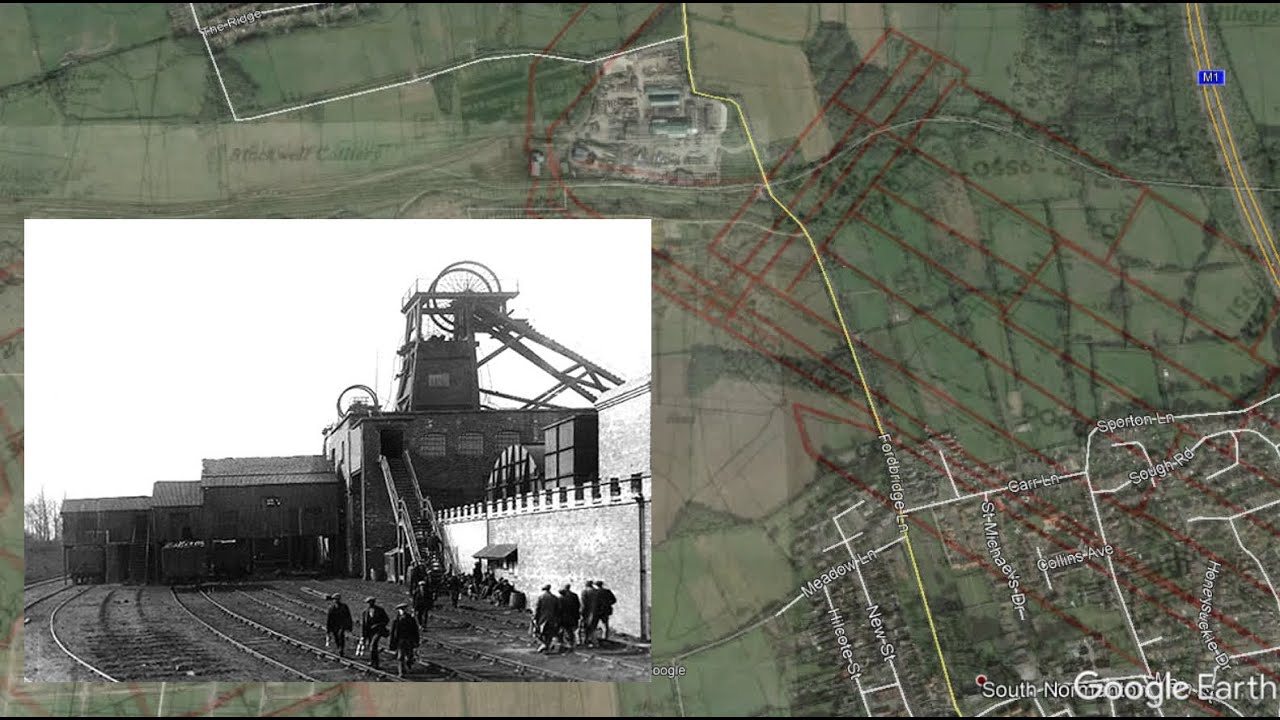

Описание: A Google map of Blackwell AWinning colliery and the surrounding area with overlay maps shown with “red lines” display the location of some of the tunnels which were dug in the Three quarter coal seam around Blackwell from the 1940s up until the colliery was closed in 1969

some tunnels or roads in the low main seam can also be seen

To the north west of the overlay map we can see the tunnels leading from Morton colliery which were connected to AWinning

and in turn connected to other local collieries such as Alfreton as shown in the south west of the overlay maps

with tunnels in the Yard seam and Three quarter seam

Connecting collieries together was common practice for safety, ventilation, water drainage and access purposes


Blackwell AWinning colliery was sunk in 1872 by the Blackwell Colliery Company to the north of South Normanton and to the east of Westhouses

The shafts are a total of 310 yards deep, which is 18 Yards below the Black shale seam

The Coal Seams worked in Blackwell, were the following

The Deep Hard seam was 179 yards deep, and was worked until 1946

The Tupton or Low Main seam was 237 yards deep, and was worked until 1958

The Black shale seam was 292 yards deep, and was worked until 1969, it was formerly part of Alfreton colliery , which was also known as CWinning

The Three quarter seam was worked until 1964

Finally the Yard seam was worked until 1969

No 1 shaft had 2 double deck cages each holding a 2 ton mine car winding on 2 shifts from the Black shale seam

No 2 shaft equipped with rope guides had two cages with double decks that held 2 tubs per deck

AWinning became a major water pumping colliery after its closure, pumping almost a million gallons of water per day and would continue to pump to protect Bentinck colliery which would of flood if the pumps were switched off

Water was collected from Alfreton, Swanwick and the surrounding area and would flow through to BWinning colliery, New Hucknall colliery, Kirkbee colliery then onto Langton colliery

The Highest output at AWinning was 578,059 tons in 1957

The Highest manpower was 1,342 in 1952 when 519,304 tons of coal was processed

Today the site is still active as the AWinning mine water treatment scheme which is a strategy to prevent uncontrolled discharges to the surface watercourses
and also to protect the aquifer in the area,
which is one of the most important sources of drinking water in the Midlands

Water is pumped from the shaft at the pump station, across a brook and to the treatment cascade which aerates the water. It then flows into two lagoons and a wetland, naturally occurring pro-cesses then treat the water without the need to add any chemicals
