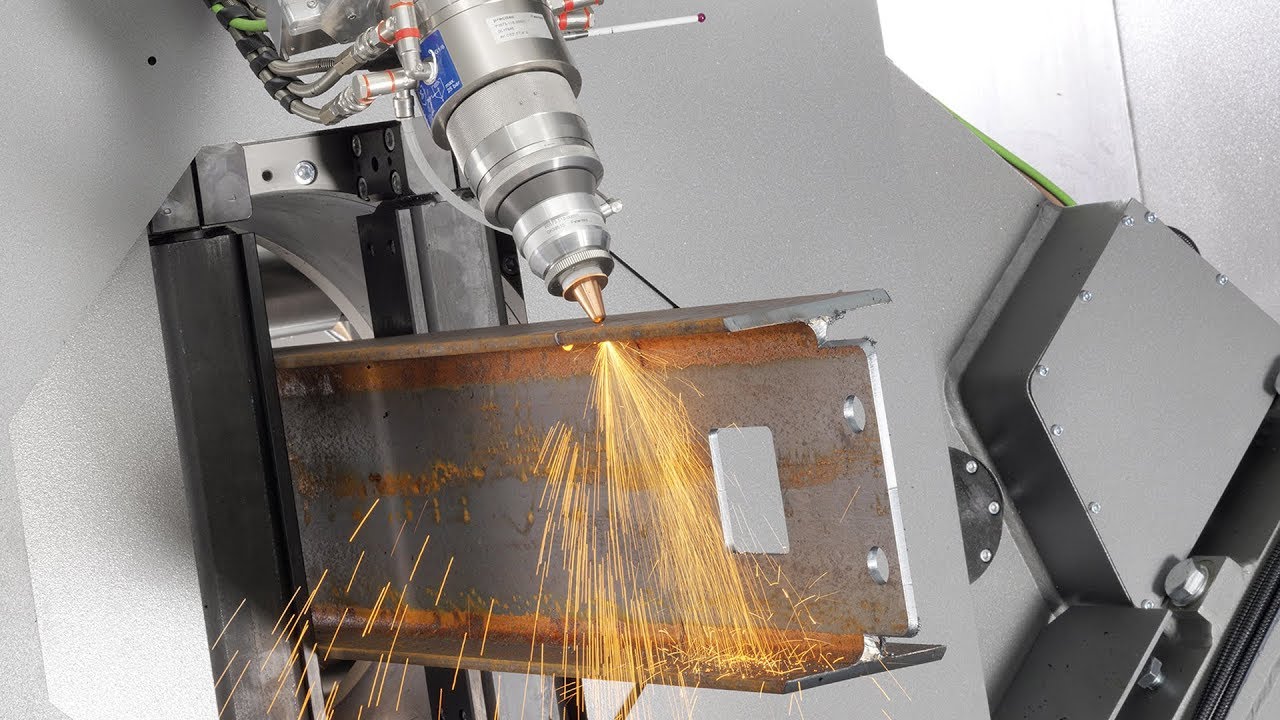

3D laser cutting for tubes, structural steel beams and profiles Lasertube LT14 / LT24 | BLM GROUP
Автор: BLM GROUP
Загружено: 2019-01-29
Просмотров: 96265
Описание:
Further information: https://www.blmgroup.com/lasertube/lt...
LT14 / LT24 is the automated BLM GROUP Lasertube system for 3D laser cutting of large diameter tubes and structural steels beams. LT14 / LT24 is the right technology for H and IPE beams laser cutting, but also for the production of sections for agricultural and industrial vehicles.
The available versions are the LT14 for processing tubes up to 355 mm (14”) of diameter (min. Ø 25,4 mm) and with a maximum weight of 100 Kg/mt, and the LT24 able to machine tubes up to 508 mm (24”) of diameter (min Ø 50 mm) and with a maximum weight of 200 Kg/mt (up to 3500 kg per tube/profile).
The LT14 / LT24 can be used to cut tubes (round, square and rectangular), open profiles, H-beams or IPE, special profiles.
The ability to efficiently accurately and consistently create any cut geometry in tube or pipe means that the Lasertube LT14 / LT24 it's a revolution in tube fabrication in different fields: agricultural equipment, industrial vehicles, heavy construction equipement, ship building, oil industry, mining and conveying, crane lifts.
