6' x 12 Ga New Dimension Initial Pinch Roll, Model MP6.105, 3 Roll Drive, Hour Meter 14 Hrs
Автор: Naab Machinery Sales
Загружено: 2025-08-14
Просмотров: 58
Описание:
For Sale Call John 952.836.5784 www.naabmachinery.com
Here We Have:

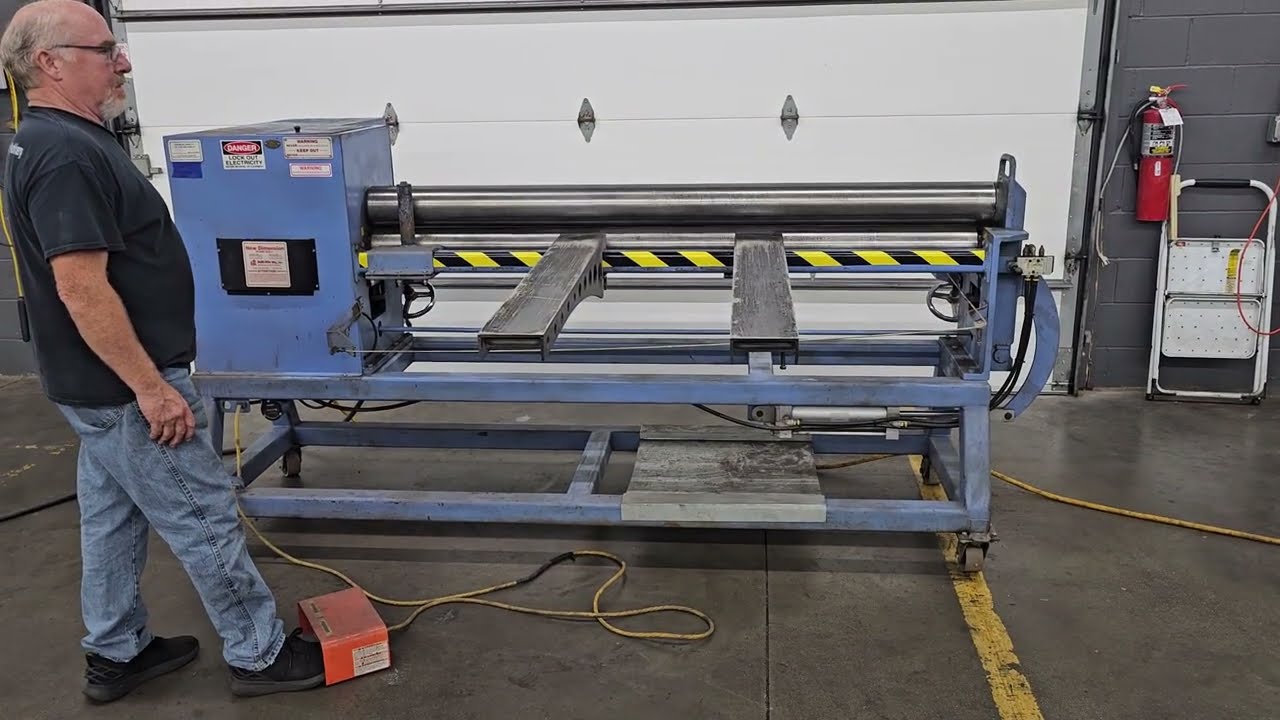

6' x 12 Ga New Dimension Built-Rite Initial Pinch Roll, Model MP6.105, 3 Roll Drive, Hour Meter 14 Hrs!
Make: New Dimension Built-Rite USA
Model: MP6.105
Serial Number: 11041954
New in: 2004
Specifications:
Rating: 6' x 12 Gauge
Diameter of Rolls: 5"
Length of Rolls: 6'
Working Area: 74"
Working Height: 34"
Pinch Roll Opening: 1/2"
Surface Feet Per Minute: 18
Equipped With:
Hour Meter: 14.2 Hrs, It Works
Two Sheet Supports
On Casters
Air Operated Drop End
Automatic Top Roll Lift
Longitudinal Grooves on forming and pinch rolls for sheet Alignment
Manual Adjust on Forming Roll
All rolls are powered
Standard Pinch Roll Openings: 1/2″
Work Height: 34″
Overall Height: 44″
Floor Space: 26" x 108"
Weight, Approx.: 2,840 Lbs.
Motor: 3 HP
Wired: 220v 3 Phase
