Learn SDR 04: What's Inside an SDR: Designing one from First Principles
Автор: HarveyMuddPhysicsElectronicsLab
Загружено: 2022-10-13
Просмотров: 9813
Описание:
Learn SDR with Professor Jason Gallicchio at Harvey Mudd College

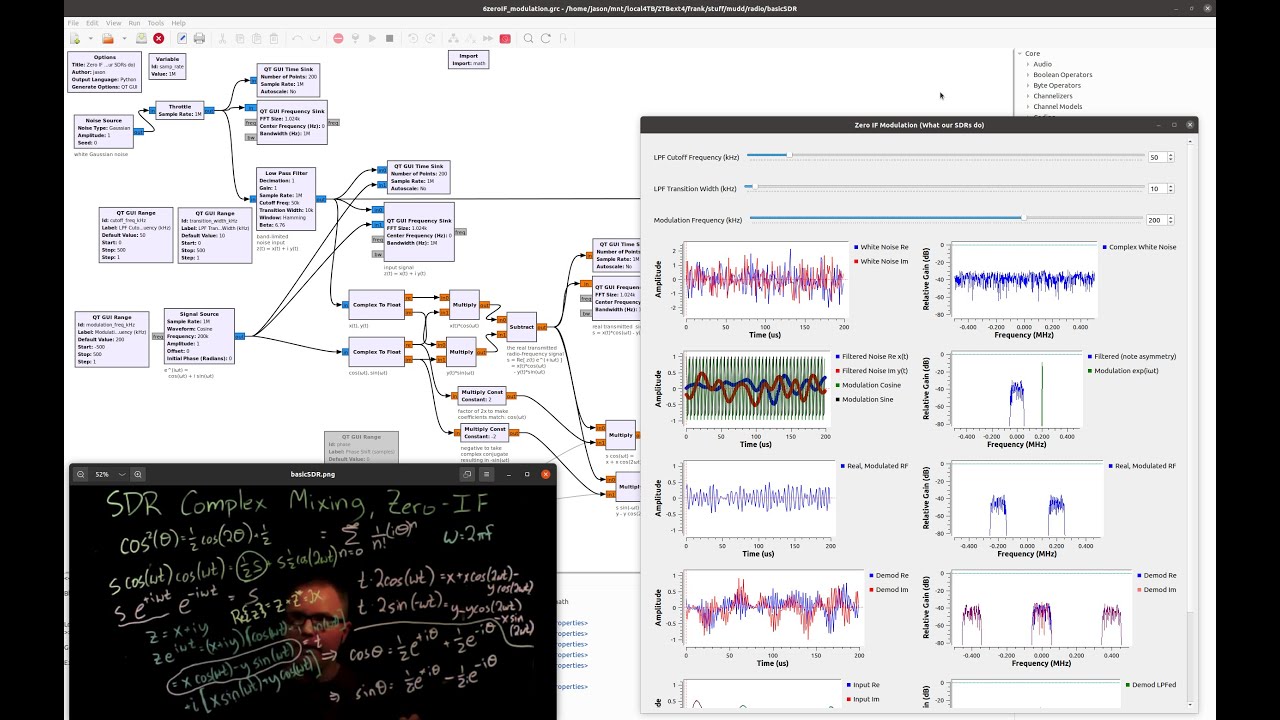

Lesson 4: What's inside the SDR? Designing one from first principles. Zero-IF Direct Conversion
Incoming real RF signal is r(t)
This gets split, multiplied by cos and sin, low-pass filtered, sampled, and returned as a sequence of complex numbers.
r(t) = A cos(2πft+ϕ) turns into z(t) = A e^iϕ e^(2π(f-f0)t)
If I were to do it again, I'd draw more pictures of the RF waveform.
HW1: Do the trig identities to trace through the direct conversion architecture.
Extra Credit : Design a transmitter by reversing the process:
Turn z(t) = A e^iϕ e^(2πft) into r(t) = A cos(2π(f+f0)t+ϕ)
https://gallicchio.github.io/learnSDR...
All GNURadio flowgraphs are at:
https://github.com/gallicchio/learnSDR
--- Learn SDR with Professor Jason Gallicchio
