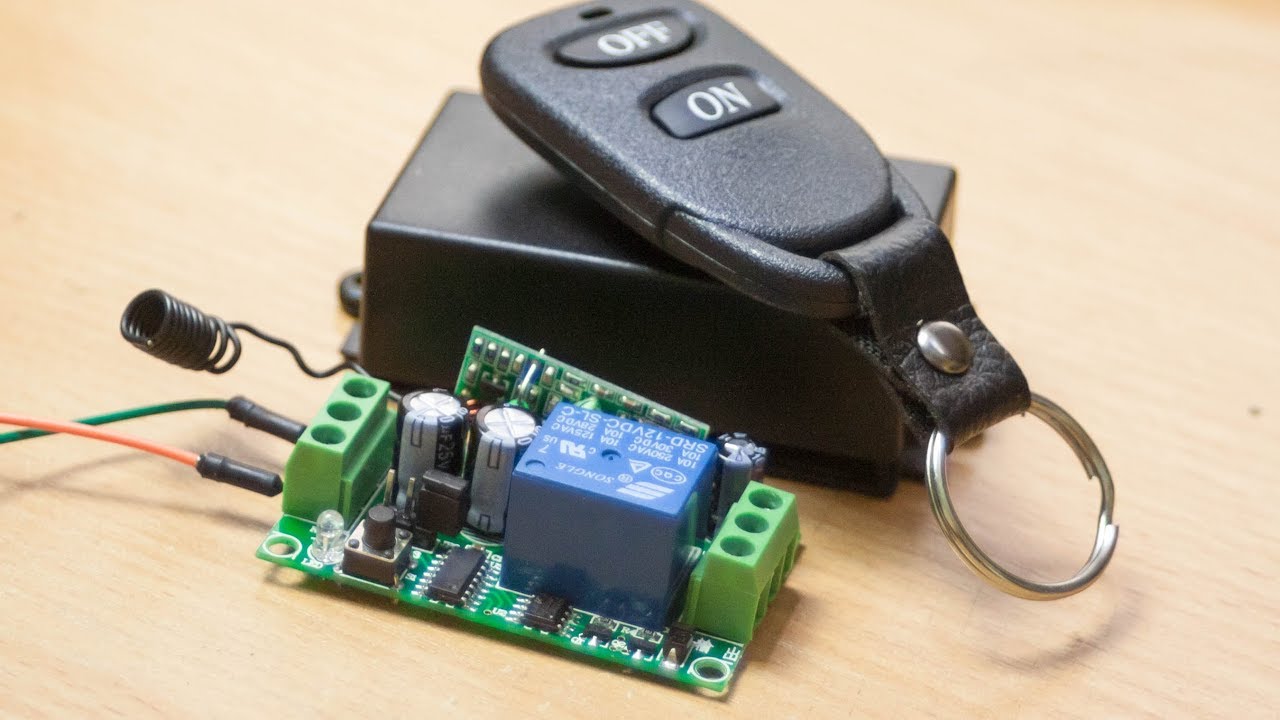

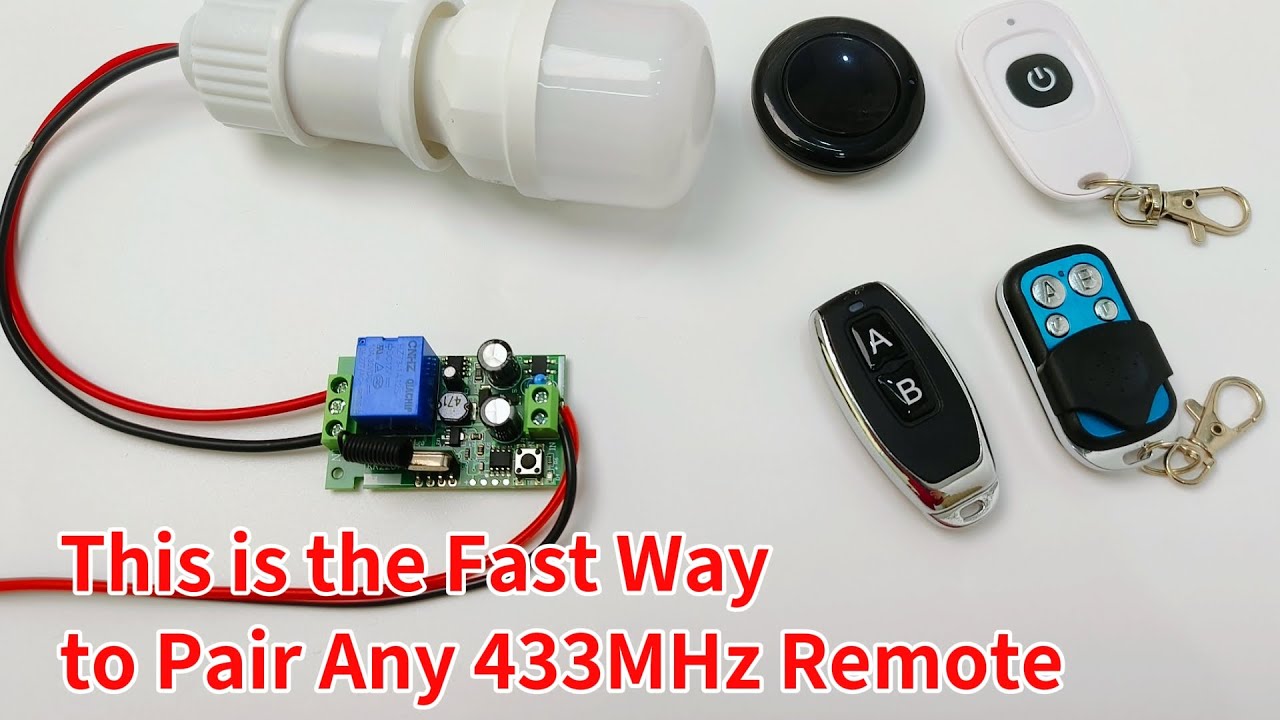

AC 220V Multimode Learning Wireless Remote Control Switch 1-channel Relay Receiver Module

Описание: Aliexpress listing:
https://www.aliexpress.com/store/prod...
Link from DE: https://www.amazon.de/dp/B08CRGLWH2

AC 85V - 250V low cost single channel wireless remote control system with latching, toggle and momentary modes and remote fob code learning facility.

How to use :
About Working mode:

1) Momentary (Jog/Non-Latched) : Press one button is Working /ON. Loosen your finger on the same button is Stop/OFF. One channel switch need one buttons remote control.

2) Toggle (Self -lock/Self-Latched) : Press one button for one time is working/ON. Press the same button again is stop/OFF. 1 channel switch need one buttons remote control.

3) Latching (Inter-lock /Latched) : Press one button is working/ON, press another button is stop/OFF. 1 channel switch need 2 buttons remote control.

Clearing the code :

Push the learning button on the receivers for 8 times , the codes will be cleaned .

After clearing the code, all the remote control cannot work any more.

Learning the code : Momentary (Jog/Non-Latched)

Push the learning key on the receiver once time , it comes into momentary setting mode .

Wait for a moment , the LED will be off , it comes into learning state .

Push the remote button , LED indicator on the receiver board will flash then come off .

After 3 seconds, the LED indicator will be on again , learning successfully .

Learning the code : Toggle (Self -lock/Self-Latched)

Push the learning key on the receiver twice time , it comes into toggle setting mode

Wait for a moment , the LED will be off , it comes into learning state .

Push the remote button,LED indicator on the receiver board will flash then come off.

After 3 seconds , the LED indicator will be on again , learning successfully .

Learning the code : Latching (Inter-lock /Latched)

Note: When you choose for latching mode , in order to learn more remote control , you need to learn two different button , the first time learnt is for “ON”, the second time learnt for “OFF”. 1 channel switch need 2 buttons remote control.

For example : button A = ON , button B = OFF

Push the learning key on the receiver triple time , it comes into latching mode .

Wait for a moment , the LED indicator on the receiver board will flash then come off.

Push the remote button A .

LED flash for 5 times .

Push the remote button B .

Led flash for 5 times .

After 3 seconds , the LED indicator will be on again , learning successfully.

A = ON , B = OFF .
