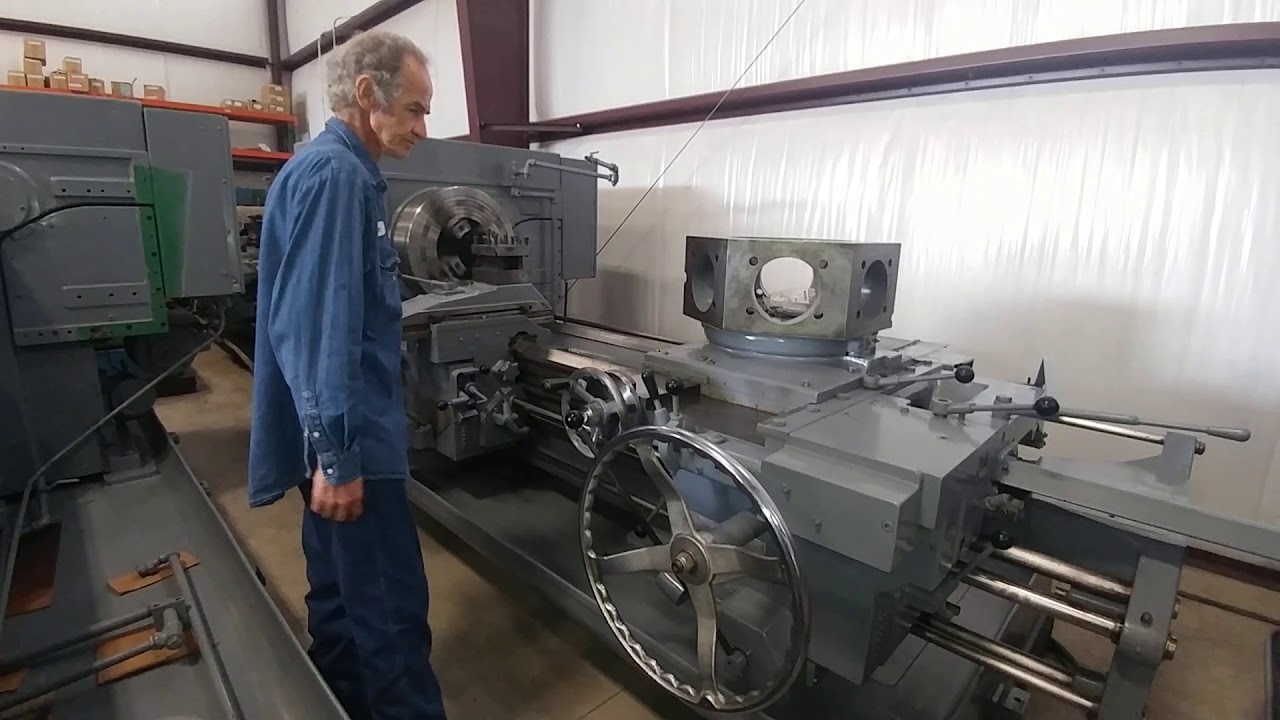

Warner & Swasey 4A M3580 Lot 16 SN1577719

Описание: Warner & Swasey 4A M3580 Lot 16 SN1577719
Stock #: L630462 | Year: 1960 | S/N: 1577719 | Used - Good
Swing Over Ways 28-1/4"
Swing Over Cross Slide Carriage 22"
Spindle Hole 12-1/2
Center Distance 62"
Spindle Speeds 20 To 526 Rpm's
Spindle Nose A-15
Chuck Size (New Heavy Duty) 24" 4 Jaw New Gator
Feeds Cross .004 To .090 I.P.R.
Feeds Long. .005 To .167 I.P.R.
Threads Rear Turret 1 To 36 T.P.I.
Main Motor 60 /30 Hp.
Floor Space Right To Left 20'
Floor Space Front To Back 7'
Machine Height 80"
Weight 22,000 Lbs.
Short Flange Holder 2
Long Flange Holders 1
Tool Post 4 Way On Front Yes
Cross Sliding Rear Turret Yes
Full Chip Pan And Coolant Yes
Rapids Front & Rear Yes

Note: Machine's Front & Rear Aprons And Rapid Traverse Box Reconditioned. Rapid Traverse Drive Box Reconditioned, New Bearings, In Main Motor. New Feed And Rapid Shafts. Headstock Cleaned And Flushed, New Filters And Oil. New Lockdown Pin And Bushing In Hex And Square Turrets, New Nut And Screw In Cross Slide And Hex Turret. Gib's Have Been Reworked And Refitted. New 24"4-Jaw Gator Chuck W/ Reconditioning. Machine Has Been Cleaned, Painted And Cycled. Machine May Be Seen Under Power With Proper Notice.
Once machine is in plant and leveled, it is recommend the customer boring the rear turret flange holders to insure they are on center.
