TL-WR841N V8 and above recovery unbrick debrick using TFTP server without serial console
Автор: Digital Literacy
Загружено: 2016-04-18
Просмотров: 28203
Описание:
You can check new TP LINK WDR8500 Roteador Wireless Wifi Router 2.4G/5GHz Dual Band Gigabit 2200Mbps TP-Link TL-WDR8500 Wi-fi Repeater 7 antennas https://shorten.asia/ub47wnyr
In this video we will learn how to revert TP-LINK WR-841N V9 to factory original firmware no matter OpenWrt or DD-WRT you are running
First step, please download stock firmware from TP-LINK official site
Extract the file to some folder and rename it to wr841nv9_tp_recovery.bin
Now change your LAN's IP Address to 192.168.0.66
Lauch TFTP server and Browse the firmware folder, you can Show Dir to make sure the firmware is there
Make sure the router is connected to PC using LAN port, hold reset button and power it up, keep holding the reset button for few seconds
We can see the router got IP address of 192.168.0.68 and downloading firmware from TFTP server
After downloading, wait for a few miniutes for it to flash and restart.
Now we can access the original TP-LINK firmware

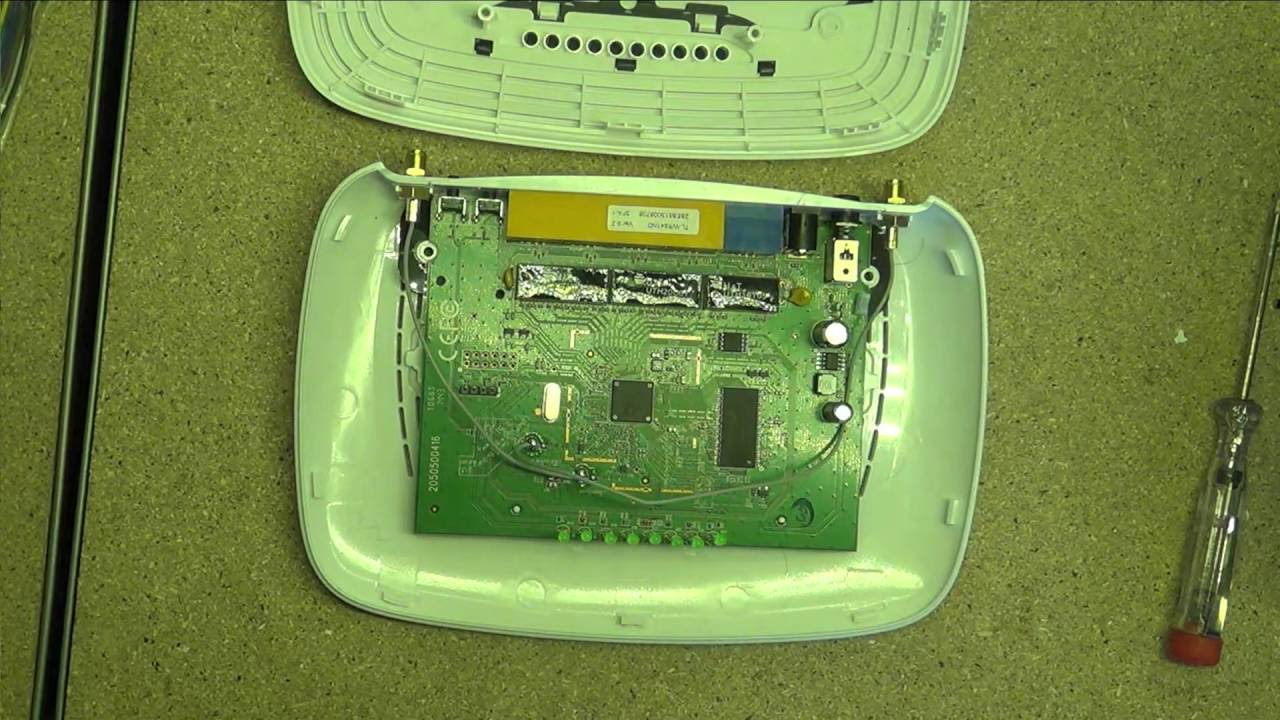

Here is how I hold the reset button and power up my router
Firmware is downloading from my laptop
And the router is rebooting
Thank you for watching, please give thumb up and visit us
