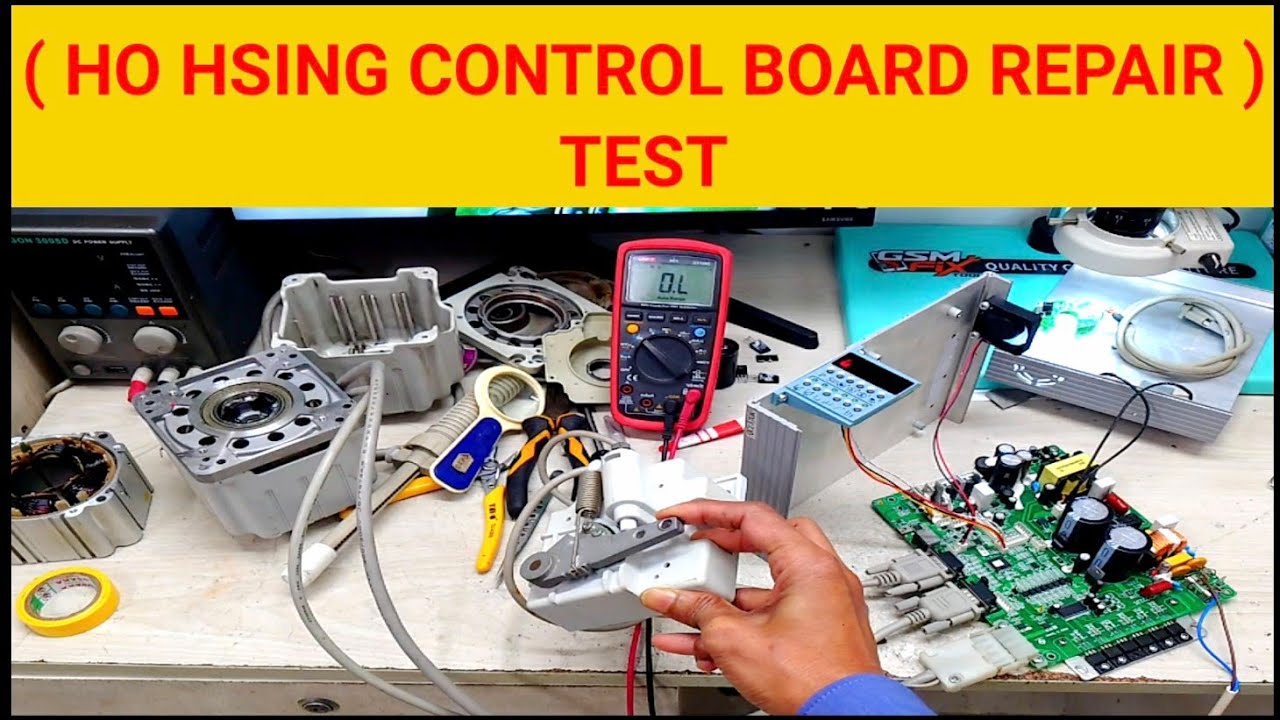

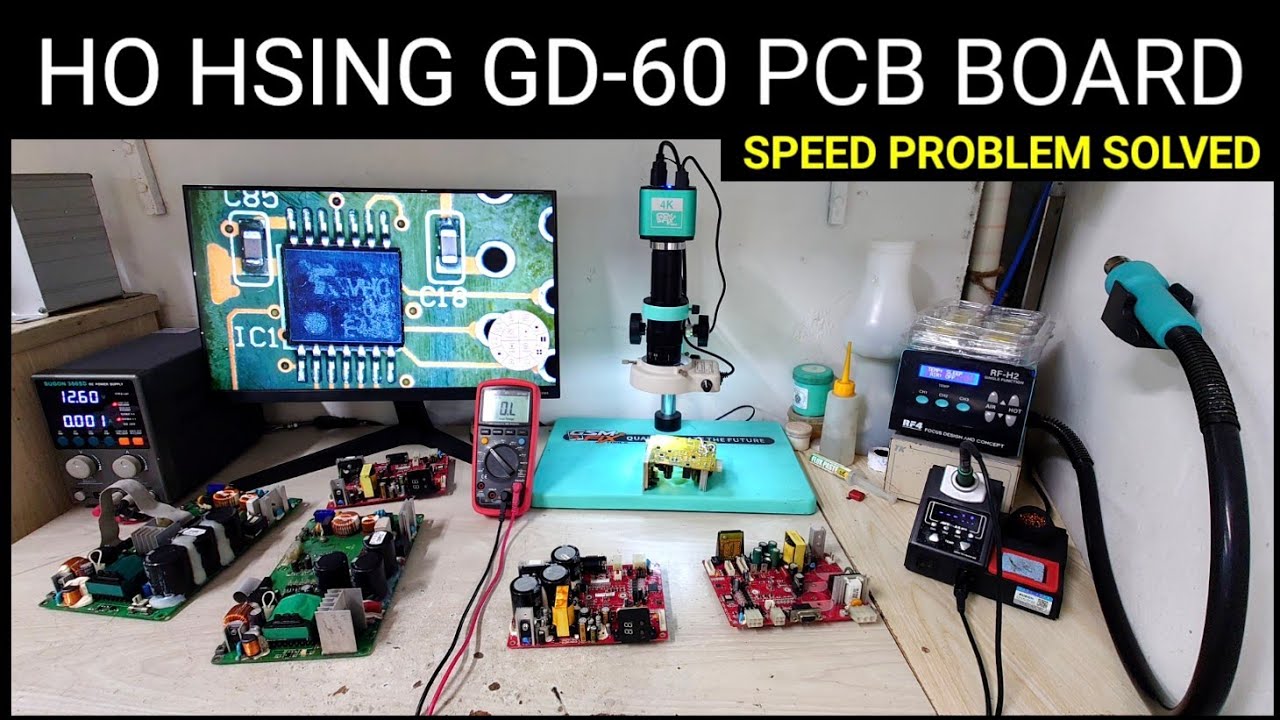

HO HSING GD-60 CONTROL BOARD POWER REPAIR

Описание: তোHO HSING GD-60 CONTROL BOARD POWER REPAIR



2. Step-by-Step Repair Guide
​Phase A: The Input Section
​If the board is completely dead, start here.
​Fuse Check: Check the main ceramic fuse (usually 8A or 10A). If it is blackened, there is a short circuit downstream.
​Varistor & NTC: Check the MOV/Varistor near the AC input. If it looks charred, the board suffered a surge.
​Bridge Rectifier: Measure the bridge rectifier. In "Diode Test" mode on your multimeter, check for shorts between the AC pins and the DC output (+ and -).
​Phase B: DC Bus & Capacitors
​The GD-60 converts AC to high-voltage DC (around 310V for 220V units).
​Inspect Capacitors: Look for "domed" or leaking large electrolytic capacitors (e.g., 400V/450V types). Even if they look fine, they can lose ESR (Equivalent Series Resistance) over time.
​Voltage Check: Carefully measure the voltage across the main capacitor.
​Warning: Use the "One Hand" rule (keep one hand in your pocket) to avoid electric shock across your chest.
​Phase C: Low Voltage Regulation (The "Brain" Power)
​The control logic needs 5V and 12V to run.
​Switching IC: Locate the small switching regulator IC (often a TOP-series or similar PWM chip). If this chip fails, the display will never turn on.
​Secondary Diodes: Check the output diodes on the secondary side of the small standby transformer for shorts.
​
​Error 04: This often indicates high voltage. If your wall power is stable (220V), the internal resistor divider used for voltage sensing may have drifted or a capacitor in that circuit has failed.
​Error EP: This usually relates to the pedal unit or the emergency stop circuit. Check the 5V rail at the pedal connector; if it's missing, the power supply section for the logic is down.

​Clean the Heat Sink: Dust and lint act as insulation. Blow out the control box with compressed air regularly.
​Check Grounding: Ensure the machine head and control box are properly grounded to prevent static buildup that can fry the CPU.
​Would you like me to help you identify a specific component on the board, or do you have a multimeter reading you're unsure about?
