How to make 12v to 220v inverter part 2

Описание: How to 12v to 220v inverter

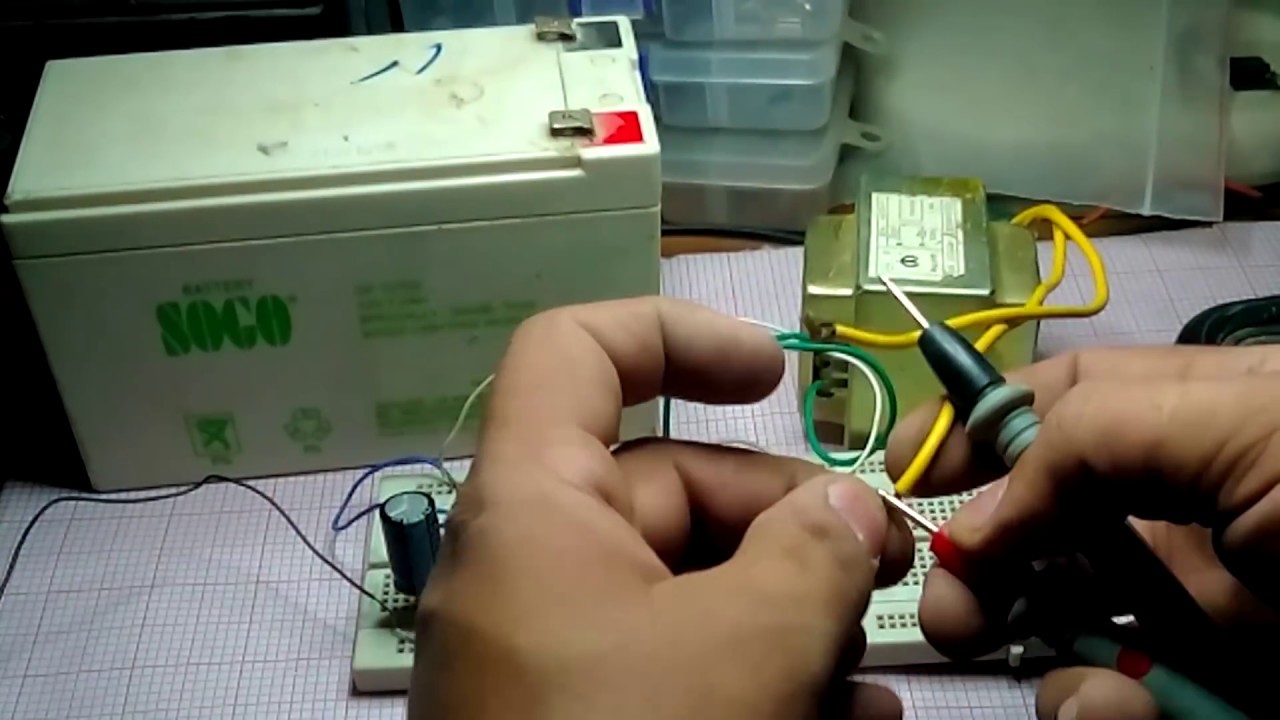

In this video I made a 12vdc to 220vac inverter using very simple method and basic components. I tried to make this Inverter as
easy as it can be. This is my second video on inverter this inverter is more efficient than the first one. You can use this inverter for
different power ac loads such as power ac lamp or cell phone charger, cell phone charger, small ac fans etc.

Note: output power depends upon size of transformer and current of mosfet in my case i used 12V +12V 5Amp transformer and
output power is about50 Watts you can use high ampere transformer in order to achieve more power it is better to use
bigger heat sink with mosfet


Components:


1- 1x CD4047 IC

2- 2x N CHANNEL MOSFET (75N75 or IRFP3205)

3- 2X 220 OHM RESISTORS

4- 1X 14 PIN BASE

5- 1X 10K VERIABLE RESISTORS

6- 1X 0.1UF NONPOLAR CAPACITOR

7- 1x 1000 uF 25V CAPACITOR

8- 2X 10K RESISTORS

9- 1X 2 PIN TERMINAL BLOCK OPTIONAL

10- 1X 3 PIN TERMINAL BLOCK OPTIONAL

11- 2X HEAT SINK

12- PIECE OF VERO BOARD

13- JUMPER WIRES

14- 12V, 0V, 12V TRANSFORMER

Circuit diagram:

https://drive.google.com/open?id=1fWB...
