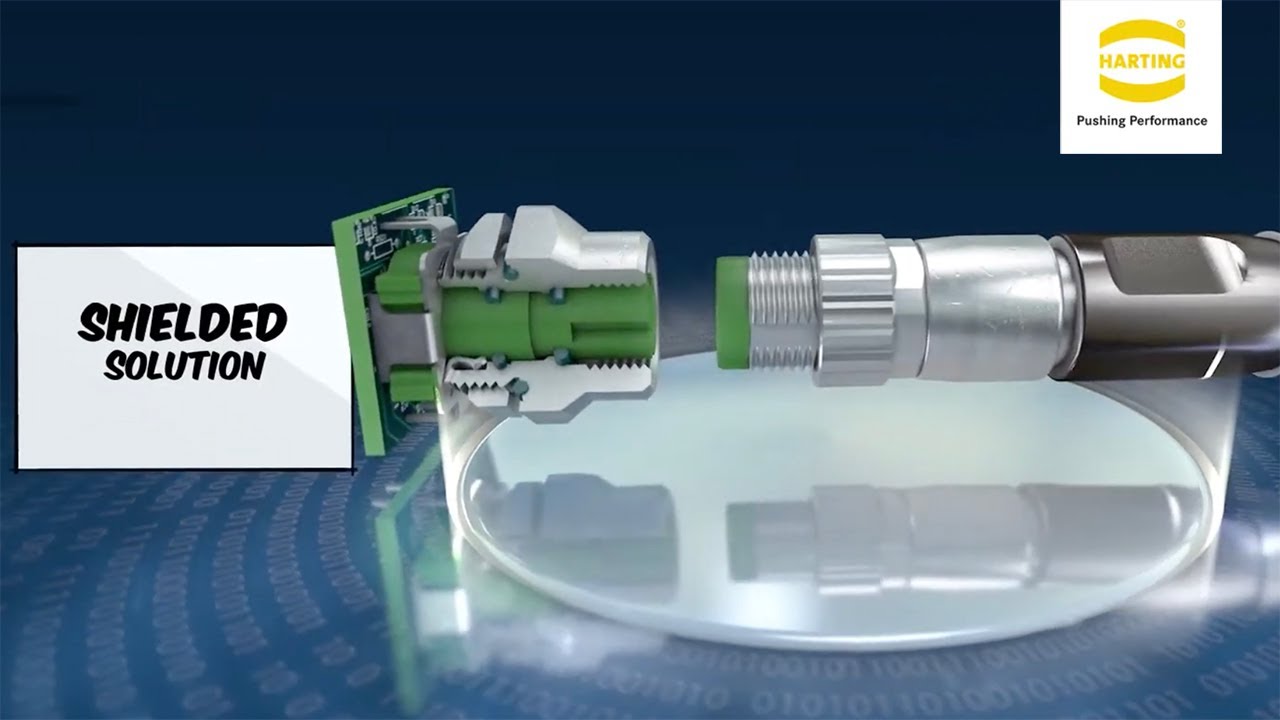

The M8 is a common connector at the field level, although to date only for the transmission of signals. The new M8 D-code has a robust metal housing with continuous shielding, which enables it to supply devices with 100 Mbit/s Fast Ethernet.

HARTING D-coded Connectors Series — Fast Ethernet, PoE, and Miniaturization in Integrated Industry | Han-Modular Family:

The Internet of Things is growing and expanding to include new smaller units. Intelligence is shifting into the process because high-functioning devices are getting smaller and smaller. HARTING has miniaturized PCB board termination technology and introduced new Ethernet connectors which are smaller, more robust, and more powerful. The conventional RJ45 connector, which is too large for many applications, has been replaced by HARTING's ix Industrial, a smaller solution which sets a new standard for Ethernet connections. With a 70 percent smaller design and at least 5,000 mating cycles, HARTING's ix Industrial® is perfect for smaller devices such as displays and flat-panel mobile devices. It has the potential to become the future IP20 standard connector for end-to-end Ethernet, from the cloud to the smallest field device.

The T1 and M8 D-coded connectors are new additions to HARTING's product portfolio. The T1 is currently driving technical developments in the field of single-bit Gbit Ethernet. The M8 D-coded, which complies with IP65/67, provides Fast Ethernet (even to very small applications), thus eliminating the last blank spots on the Ethernet map. Our series of new miniaturized connectors also includes the M12 Power in L-coding, which creates a new standard for miniaturized power supplies. With significantly smaller dimensions than the previous 7/8" size, it ensures that power is supplied to devices via miniaturized interfaces. This is a successful and sensible support for the trend towards device connectivity miniaturization.

Digitalised production environments are relying on more and more sensors. At the same time, this sensor technology is becoming smaller. HARTING's M8 D-coded provides a solution for the challenges presented by miniaturisation. The vision of an Ethernet connection from the cloud all the way down to the smallest sensor technology is becoming a reality with this new standard. In comparison to the classic M12 connectors, the M8 D-coded features 30% reduced dimensions. It also enables high-performance Fast Ethernet connections of up to 100 Mbit/s Cat. 5 according to IEEE 802.3. The M8 D-coded is shielded and protected to IP67 so that it can guarantee excellent reliability and data integrity under raw field-level industrial conditions. These are the perfect requirements for establishing a new standard.

Features:
HARTING's M8 D-coded enables a consistent Ethernet connection from the cloud to the sensor level
Smaller Socket , 30% smaller than conventional M12 connectors
100 Mbit/s Cat. 5 Fast Ethernet IEEE 802.3
IP67 Rating for Harsh Environments
Continuous Shielding
PoE capable
Supports PROFINET
