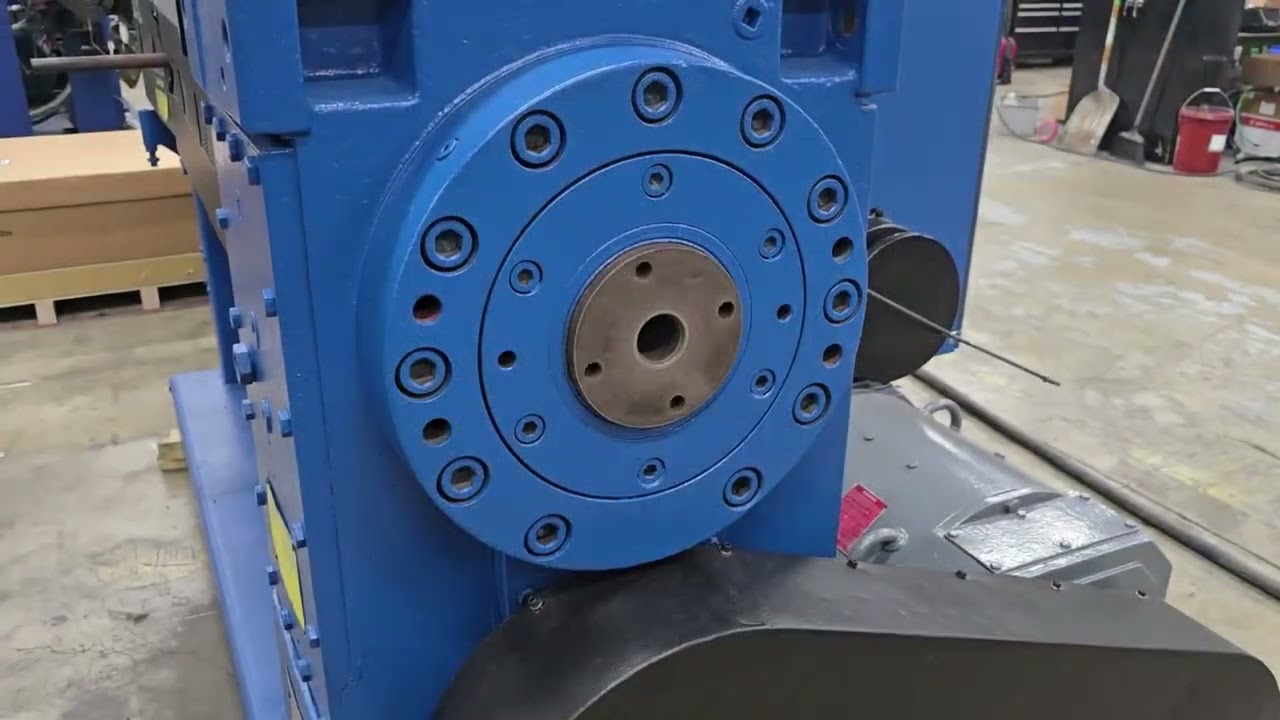

3.5" Merritt Davis Standard Single Screw Extruder, 24:1 L/D, 100 HP DC Motor - Stock
Автор: Arlington Plastics Machinery
Загружено: 2025-12-10
Просмотров: 26
Описание:
Used 3.5" Merritt/Davis Standard, Single Screw Extruder, 24:1 L/D, DC Motor
Single Screw Extruder, 24:1 L/D Air Cooled Barrel, Vented (Plugged), 5 Barrel Zones, 2 Die Zones
Feed Throat: 5.5" x 5.5"
100 HP US Electrical Motors, Model: 00013632, S/N: 105534KK5
500 Arm Volts, 160A, 1750 RPM, Frame: 366 AT
Blower With Filter
14:1 Gear Ratio
Speed: 100 RPM
100 HP Sabina DC Drive, Spec No. 73531/6800, Type: T6800
Input: 460/3/60, 145A
Output: 500 Arm Volts, 162A
Output: 300 Field Volts, 3.7A
Includes Clamp & Screw
Eurotherm 2204 Temperature Controllers
Speed POT, Start/Stop Buttons, Melt Pressure Alarm, Extruder AMP/RPM Digital Readouts
300 Amp ABB Disconnect
Serial Number: PR-1719-01
Approximate Dimensions: 116" L x 60" W x 80" H
