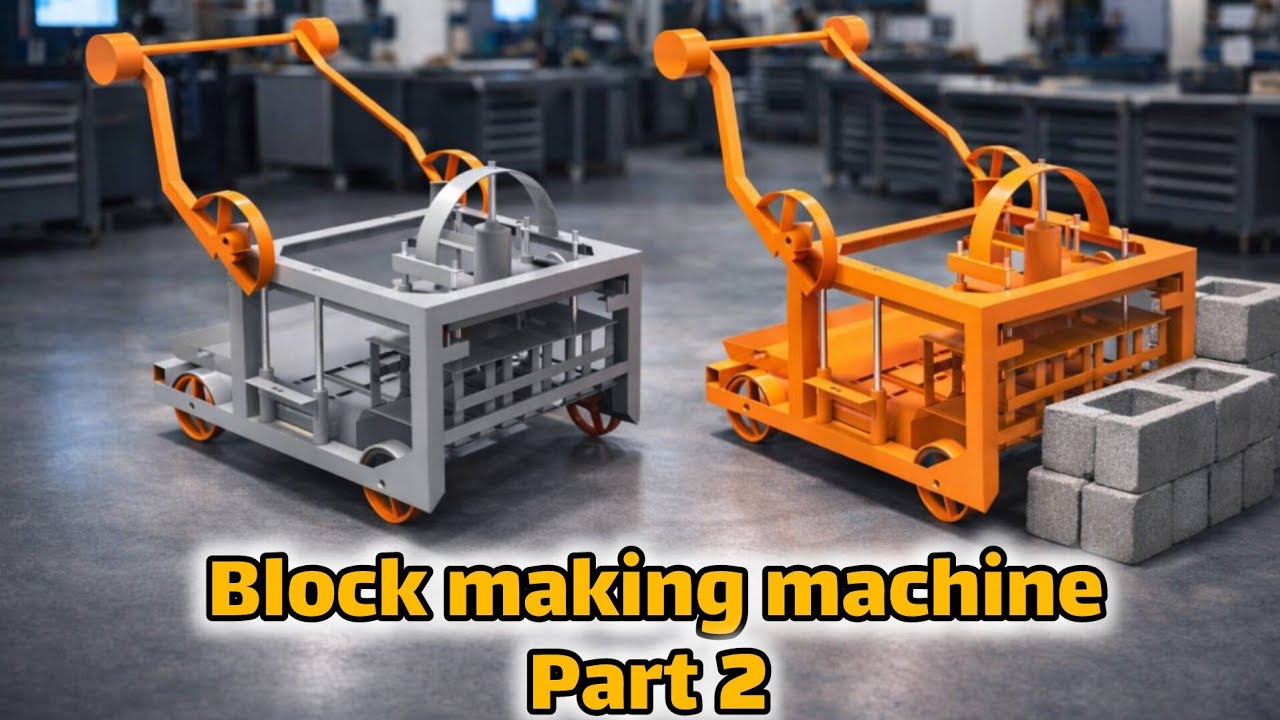

Solidworks tutorial | Manual Block Making Machine Design – Part 2
Автор: solidworks_meta
Загружено: 2026-01-02
Просмотров: 30
Описание:
This tutorial is Part 2 of our complete series on designing a manual concrete block making machine. In this video, we continue designing the machine step by step, focusing on the next set of components. By following along, beginners can further improve their mechanical design and SolidWorks skills.
Features used in this tutorial:
🔸 Extruded Boss/Base
🔸 Extruded Cut
🔸 miror
🔸 revolved
🔸swpt boss
Notes:
🔶 All dimensions are in millimeters (mm)
All dimensions and measurements used in this project were taken directly from a real machine. I personally measured every component and used those real-world dimensions for the design.
❤️ Support our channel for more tutorials: / @solidworks_meta
📣 Thumbnail rendered using KeyShot.
Follow us on Instagram:
✴️ 3D Modeling: @solidworks_meta
✴️ Rendering: @keyshot_meta
