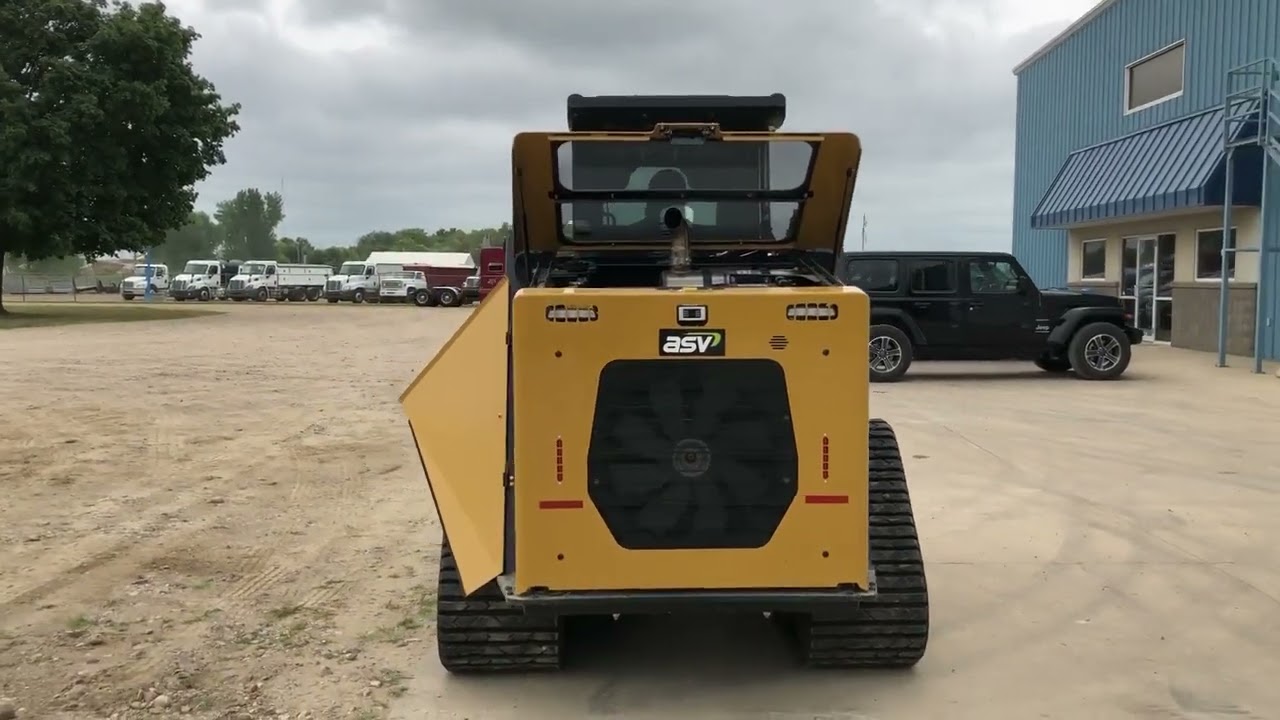

2023 ASV POSI-TRACK RT75 MAX For Sale

Описание: https://www.machinerytrader.com/listi...
2023 ASV RT75 AWD Skid Steer (Base Unit Only - Bucket Not Included)
OPERATING SPECIFICATIONS:
Loader arms Radial
Operating weight 9,180 lbs | 4164 kg
Shipping weight 8,626 lbs | 3916 kg
Ground pressure @ operating weight std. track - 3.6 psi | 24.8 kPa
opt. track - 3.2 psi | 22 kPa
Rated operating capacity,
35% of tipping load 2,650 lbs | 1203 kg
Operating capacity, 50% of tipping load 3,786 lbs | 1719 kg
Tipping load 7,571 lbs | 3437 kg
Travel speed, maximum - 1st speed 6.3 mph | 10.1 kph
Travel speed, maximum - 2nd Speed 9.3 mph | 15 kph
ENGINE
Type Diesel, 4-cylinder, intercooled,
turbocharged
Model Cummins QSF2.8
Displacement 171 in3
| 2.8 L
Gross power rating @ 2800 rpm 74 hp | 55 kW
Torque, peak 221 ft-lb | 300 Nm
Cooling system Temperature-controlled variable
speed hydraulically-driven fan and
coolant/anti-freeze-filled radiator
Intake air cleaner Dual stage
Emission controls Meets all U.S. EPA Tier 4 final
standards


UNDERCARRIAGE
Track type: General purpose track constructed of rubber compound with
embedded co-polymer cords and all-purpose treads.
Track width Standard - 18 in. | 475 mm
Optional Wide Track - 20 in. | 508 mm
Length of track on ground 71 in | 1803 mm
Ground contact area 2,556 in2
| 1.65 m2
Drive system Two hydrostatic direct drive sprockets
controlled by a single joystick
Track drive sprocket Elevated with low friction, replaceable
sprocket rollers
Undercarriage suspension Two independent torsion axles per
undercarriage
Roller wheels 24 high-density polyurethane and rubber
wheels per track
Wheels include sealed bearings
Roller wheel diameter:
Front and rear wheels
Middle wheels
15 in. | 381 mm
10 in. | 254 mm
RT-75


AUX. HYDRAULIC SYSTEM
Pump capacity: Low - variable from 0-22.6 gpm (85.5 lpm).
High - 35.7 gpm (135 lpm)
System pressure, max. 3,300 psi | 22 750 kPa
Controls Intermittent via joystick button or continuous
via console switch, mode selectable via
dash-mounted switch
Couplers Push-to-connect quick couplers mounted on
loader arms
Pressure relief valve mounted to
coupler block
Cooling system High efficiency side-by-side radiator
and oil cooler


ELECTRICAL SYSTEM
Nominal charge 12 V
Battery 950 CCA
Charging system 120 amp alternator
Outlets 1-12 V port inside operator station
Wiring Pre-wired for all factory-available accessories


OPERATOR STATION
Seat: Adjustable contour vinyl with built-in operator presence switch,
lap bar and 2 in | 51 mm wide seat belt
Loader control: Right-hand pilot hydraulic joystick controls loader lift,
lower and tilt, plus intermittent control of auxiliary hydraulic
Drive control: Left-hand pilot hydraulic joystick controls machine speed
and direction
Engine speed Hand-operated throttle
Machine display Engine RPM
Engine coolant temperature
Engine oil pressure
Hydraulic oil temperature
Battery voltage
Hour meter
Fuel level
ROPS Meets SAE J1040 MAY94, ISO 3471
FOPS Meets SAE J1043 SEPT87, ISO 3449
Illumination 2 - Fixed forward-facing halogen lights
2 - Adjustable rear-facing halogen lights
1 - Interior light
Convenience 12 V power port
Horn
Backup alarm
