SCM Sigma Prima 67 Horizontal Beam Panel Saw - J & G Machinery, Inc.

Описание: SCM Sigma Prima 67 Horizontal Beam Panel Saw - J & G Machinery, Inc.

Front loading
Maximum cutting length: 149" (3800 mm)
Maximum cutting width: 149" (3800 mm)
Maximum blade projection: 2.64" (67 mm)
Main saw motor: 12 HP
Main blade diameter: 11.8" (300 mm)
Main blade arbor diameter: 80 mm
Scoring blade motor: 2 HP
Scoring blade diameter: 6.37" (160 mm)
Scoring blade arbor diameter: 55 mm
Automatic exclusion of scoring unit when motor is in off position
Pneumatic quick change system for blades
Variable speed saw carriage 0 to 327 FPM
Pusher fence with (7) material grippers
Variable speed pusher fence 0 to 230 FPM
Side alignment device: Min. part width 2.36"; Max. part width 48"
(1) Fixed air floatation table with left side fences (23.62" x 98") and (2) Mobile air floatation tables (23.62" x 59") allow for easy loading and unloading of material
PC front end with Windows 7 Professional and 17" flat panel display

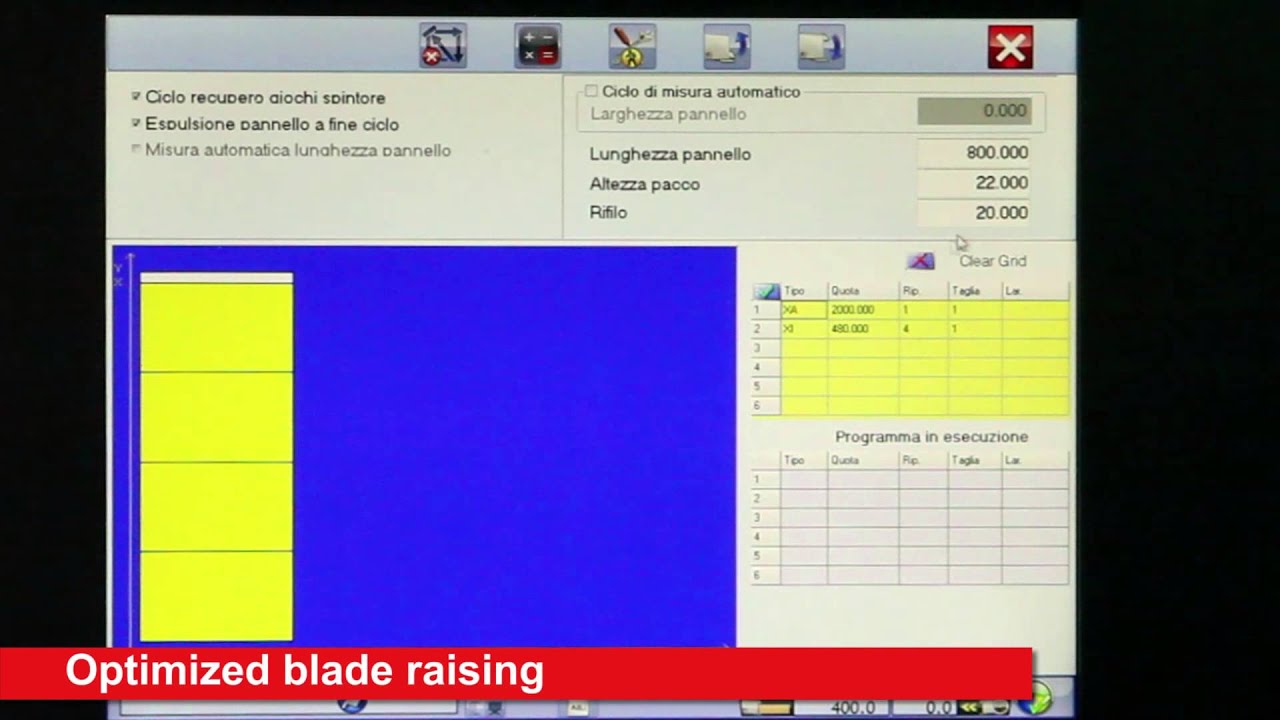

"Wincut" operating software
"Cutty" optimization software is included which allows: 30 lines per program, 300 max number of pieces per line, and 3 cutting levels
Dust outlets: (2) 120 mm dia. outlets and (1) 100 mm dia. outlet (2100 to 2800 CFM)
Air requirements: 7 atm (95 to 105 psi)
Electrical requirements: 76 amps @ 230 volt
Machine floorspace: 24'10" deep x 19'5" wide
Machine weight: 6,790 lbs.
