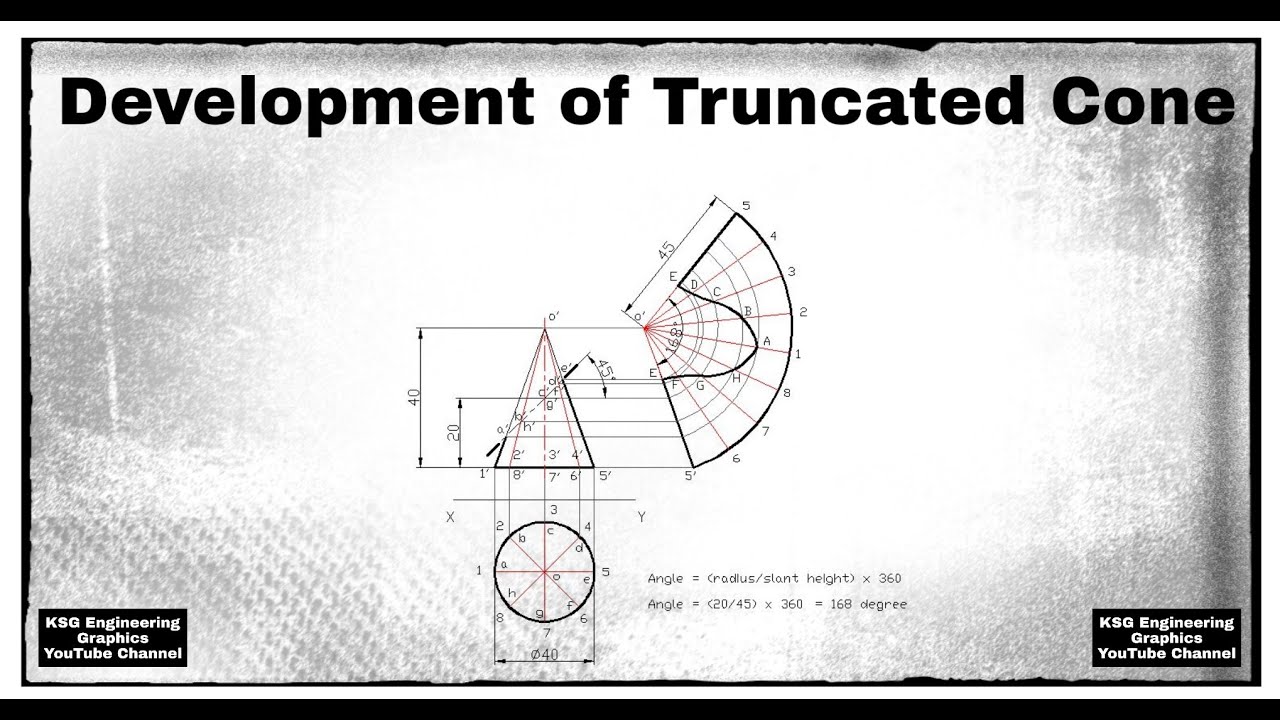

Описание: Truncated Cone | Development of a truncated cone | Development of Surfaces | Engineering Drawing

Development of Surfaces:

Development is a graphical method of obtaining the area of the surfaces of a solid. When a solid is opened out and its complete surface is laid on a plane, the surface of the solid is said to be developed.

Methods of development of surfaces:

Parallel Line Method:
It is used for the development of prisms and cylinders in which the lines drawn to represent the different elements of the surfaces are parallel to each other.

Radial Line Method:
It is used for the development of pyramids and cones in which the apex is taken as centre and its slant edge or generator as the radius for its development.
