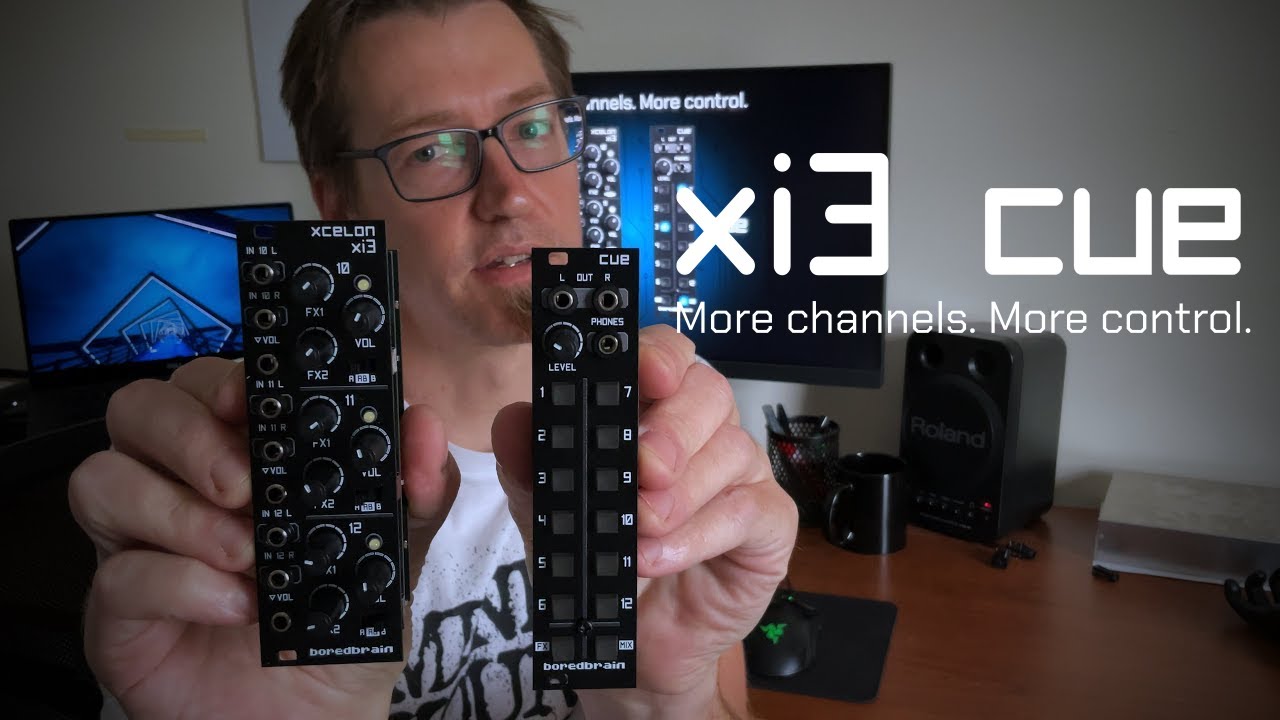

Boredbrain Xi3 and Cue brief introduction (Xcelon eurorack mixer expanders)
Автор: Boredbrain Music
Загружено: 2025-05-27
Просмотров: 764
Описание:
Today we’re introducing two new modules that expand the flexibility of our Xcelon eurorack mixer — the Xi3 mini 3-channel mix expander and the Cue PFL channel monitor. With these additions, the Xcelon system becomes even more capable — scaling from six to twelve stereo channels, with pre-fader listening, direct outputs, and flexible FX handling.
Xcelon Xi3
MINI 3-CHANNEL MIX EXPANDER
• Adds three stereo/dual-mono channels to Xcelon mixer in just 8 HP
• Two stereo FX sends and two stereo output mix busses selectable per-channel
• VCA-based volume controls with CV input and responsive LED indicators
• Configurable jumpers for dual-mono operation allowing up to six mono sources
• Pre/post-fader direct output ports for all three stereo channels
Xcelon Cue
PFL CHANNEL MONITOR
• Monitor up to fourteen audio sources from Xcelon mixer and channel expanders
• Individual cue buttons for channels 1 thru 12, FX returns and main mix
• Dedicated headphone output with independent level control
• Additional eurorack-level stereo output for alternate cue bus routing
• Also connects to IO module to cue other eurorack audio signals
