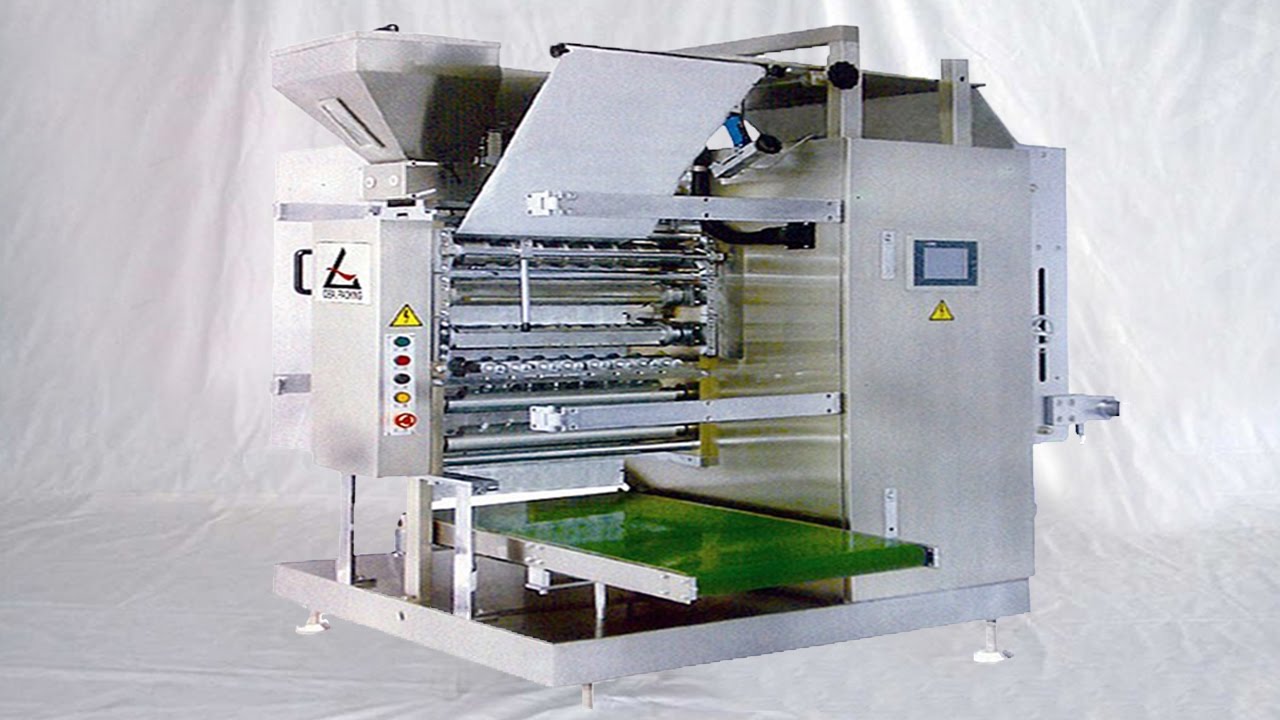

Multi lane stick VFFS packing MC with swing head volumetric doser آلة التعبئة والتغليف عالية السرعة
Автор: PENGLAI CHINA
Загружено: 2017-03-10
Просмотров: 420
Описание:
The YX-M520 series is a High speed Multi lane vertical form,fill and seal (VFFS) packaging machine designed to package free flowing powders / granules, liquids, creams or pastes products.
basic parameter of YX-M520-G series Multi lane stick VFFS packing machine with swing head volumetric doser system آلة التعبئة والتغليف عالية السرعة:
Model YX-M520
Measuring Volume cups
Bag style Stick sachets
Dosage 1-100ml/bag
Bag size (mm) L30-140
Single lane film width:30-60mm
Capacity(bags/min) 100-410
Control style PLC+ Chinese/ English screen
Pneumatic request 0.24cbm/min, 0.6Mpa
Power 3KW-12KW
Voltage AC380v 3 phases 50Hz
Bodyshell Sheet steel spray painted / Stainless steel
Weight 650KG
Dimension (LWH/cm) L210 W140 H200
It is used widely for variety of applications ranging from packing liquid, semi liquid (shampoo, oil cream, ketchup) & powder products (Detergent powder, Tea, sugar, salt etc.)
Adding to its versatility, the High Speed Multi-Lane sachet
packaging machine series can be integrated with most fillers
such as slider filler, piston filler and viscous paste filler.
The machine produces 4 side sealed sachets and the number of lanes depends on the width of the sachet as the maximum roll width (web width) is 1000mm.
The length of the sachet can be varied up to maximum 180mm using the PLC.
Application:
Shampoo, liquid detergent, oil, liquor, spirit,
salad deressing creams, tomato paste, mayonaisse paste,
Free flowing powders, granules, tea, salt, sugar, detergent powder,
free flowing agricultural and pharmaceutical powders.
Features of multilane packaging equipment automatic:
multilane packaging equipment.jpg
1.Advanced performance, high strength, low noise, compact structure, smooth operation and long life. And the addition of membrane organization then make films for access and maintenance easier.
2.The use of five-axis servo synchronous drive, the man-machine interface touch adjusted by PLC control, the automatic synchronization of the implementing agencies precise positioning. Under the premise of improving packaging speed to ensure the quality of packaging,
3.Using high-precision whole rolling type heat sealing roll as sealing mold sides sealing. Bag-shaped flat seal firmly exquisite beauty, good packaging quality and high efficiency.
4.Adjust the speed and convenience. Do not need to replace the mold can be adjusted bag length. And longitudinal sealing, transverse sealing, filling material, batch number, cut the dotted line, cross and other actuators can be adjusted by the man-machine interface.
5.Packing speed, filling accurate measurement. Two-way synchronization feeding mechanism, greatly improve the packaging speed, the agency uses detachable structure, easy assembly detachable for easy cleaning and maintenance. With triangular cup measure, multi-column can be synchronized with a separate fine adjustment, high accuracy.
6.Using optical tracking system to ensure that the bags automatic two-sided version of the pattern, and with automatic counting function.
7.The addition of the line models very very special film line film damping with automatic correction mechanism to ensure the stability and straightness of the line tension of the film, thus greatly improving the level and extent of the bag-shaped appearance.
After-sales service on YX-M520-G series Multi lane stick VFFS packing machine with swing head volumetric doser system آلة التعبئة والتغليف عالية السرعة:
Guarantee: for all the machine, it claims one year for guarantee.(Excluded from the warranty are problems due to accidents, misuse,misapplication, storage damage,
negligence, or modification to the Equipment or its components.
ALSO THE EASY BROKEN SPARE PART IS NOT INCLUDED IN THE GUARANTEE)
Installation: after the machine arrive your factory,if you need,our technician will go to your place to install
and test the machine and also training your worker to operating the machine (The time of train depend on you worker).
The expenses (air ticket ,food , hotel,the travelling fee on your country) should be on your account and you need paid for the technician USD50 per day. also you can go to our factory to do training.
After-sale service: If you get the problem on the machine ,our technician will go to your place to fixed the machine as soon as possible.The cost should be in your account.(as above).
PENGLAI INDUSTRIAL CORPORATION LIMITED
US agent Office
9284 talway cir Boynton beach. fL 33472
UK Agent Office
69 Waterloo Road Manchester England M8 8FJ
Contact: Jack Du
Cel: 0086-15811882441 0086-13077872898
Phone: 0086-20-84206097 0086-755-25423447
Fax: 0086-755—25417648
Email: [email protected]
Skype: turnanewleaf
