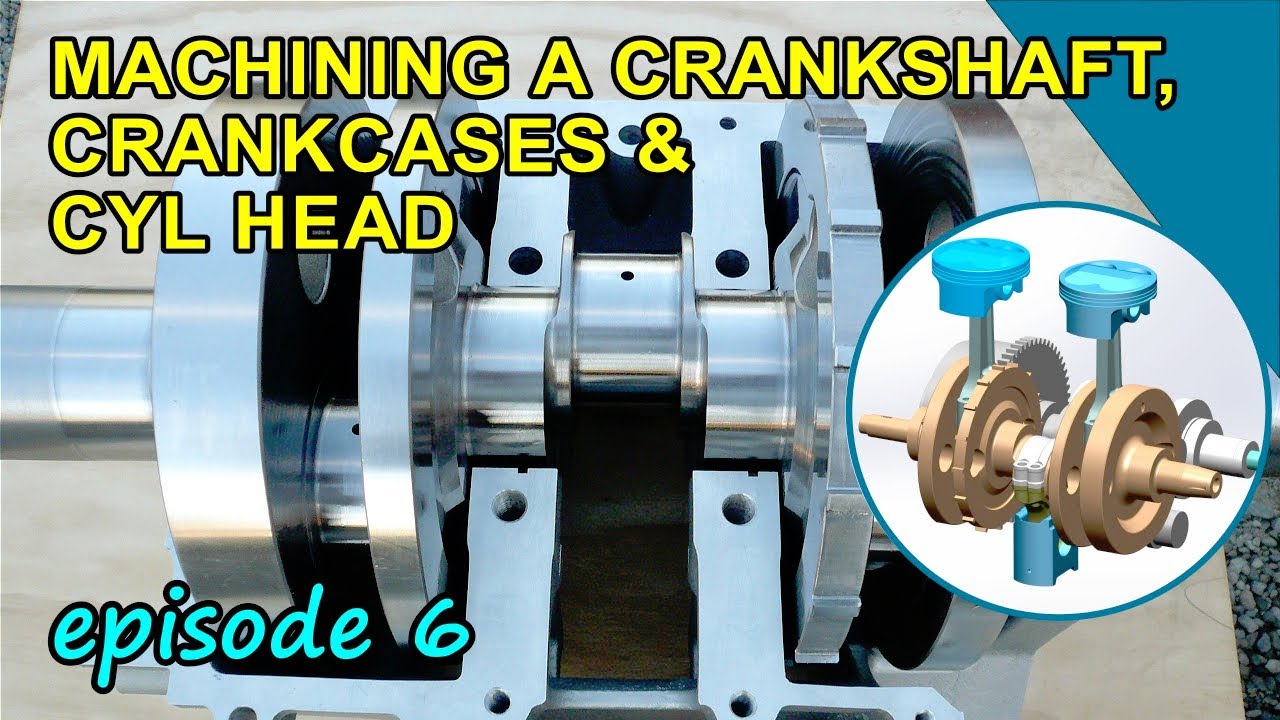

EP 06. Machining the ART 1200 Crankshaft, crankcases & cylinder head.

Описание: Video and photos showing the work involved in making the Engrich ART 1200cc crankshaft, crankcases and cylinder head. The crankshaft for our 1200cc 360° parallel twin has a 3rd crank pin. Centrally located, it's half the stroke and runs a unique 2kg reciprocating tungsten balance piston.

Some of the machining operations shown - CNC milling and turning, manual lathe turning, cylindrical grinding, oil feed hole drilling (manual milling machine), line boring the main bearing journals on the crankcases, CNC machining the combustion chambers and valve seat recesses.

The ‘Engrich ART’ motorcycle was created to showcase the very finest of precision engineering and design. The only fully balanced large capacity 360° parallel twin in the world utilizing a reciprocating tungsten balance system.

With over 200 beautifully crafted CNC machined components and sand cast engine cases, the Engrich ART is one of the finest luxury motorcycles created.

Engine Spec
– ART (Appel Richardson Twin) 360° 1200cc parallel twin. Sand cast and machined crankcases, sump, barrels & cylinder head
– Bespoke CNC machined crank shaft, cam shafts and engine covers
– Air and oil cooling
– Unique tungsten reciprocating balance system. Near perfect primary and secondary balance
– Double over head cam – 8 valve head, 6 speed gearbox

Chassis
– Designed and manufactured by Engrich Ltd
– Bespoke main frame, sub frame and ancillary components. Over 200 anodised custom CNC machined components from 6061 aluminium
– Electronics – Link G4+, Motec PDM15 and C125 display
