Описание: Ürün Çeşitleri
Havlu Mendil (yeni tip z katlama )
Ürün Katlama Tipleri
Katlanmamiş Mendil Uzunluk
Katlanmış Mendil Genişlik Z katlama
Min. 100 mm – Max. 220 mm
Min. 60 mm – Max. 120 mm
Mendil Adeti / Paket Min 24 – Max 120 mendil / paket
Üretim Kapasite

– Max 85-90 pk / dakika ( 72 mendil / paket)

MAKİNA PARKUR ÖZELLİKLERİ
1. TAM OTOMATİK ISLAK HAVLU MENDİL KATLAMA MAKİNASI
( Model No : OYM 2025-12 ROBOT )
. Dilimlemeli 12 bobin sistemli + 12 bobin rezerv
• Tam otomatik çalışma, kesintisiz performans ve yüksek verim + metal dedektör sistem
• Daha az insan gücü ve atık
• İleri düzeyde güvenlik ve hijyen
• Farklı ürün tipleri arasında kolay ve hızlı değişim
• Çok çeşitli katlama tipleri ve ürün boyutu seçenekleri
• Gelecekte artan ihtiyaçları karşılamak üzere yükseltilebilir modüler tasarım

ENGLISH:
Product types
1. Towel Wipes (new type z-folding)
Product Folding Types
Unfolded Tissue Length
Folded Tissue Width Z fold

Min. 100mm – Max. 220mm
Min. 60mm – Max. 120mm

Number of Wipes / Pack Min 24 – Max 120 wipes / pack

Production Capacity
– Max 85 pk / minute (72 wipes / pack)

III. MACHINE TRACK FEATURES

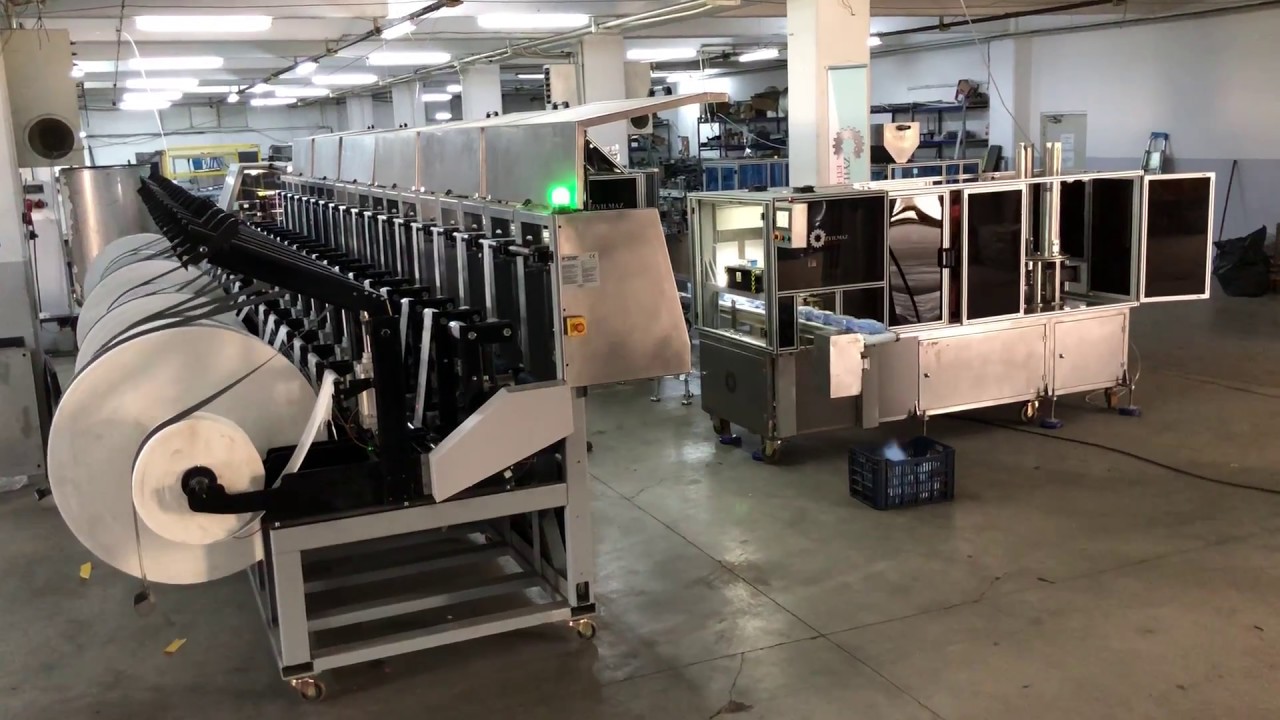

1. FULL AUTOMATIC WET TOWEL WIPE FOLDING MACHINE (Model No: OYM 2025-12) Slicing 12 bobbin system + 12 bobbin reserve
Fully automatic operation, uninterrupted performance and high efficiency + metal
detector system
Less manpower and waste
Advanced level of safety and hygiene
Easy and fast changeover between different product types
Wide range of folding types and product size options
Modular design that can be upgraded to meet growing needs in the future
General features
All conveyor belts are anti-bacterial and suitable for hygienic product transfer
The main structure is KROMAN U steel
All product contact surfaces are 304L CrNi stainless steel
Mobile start-stop button
Visual and audio warning system
Operator authorization via PLC
Screw edge folding and adjustment groups (6 sets)
Nonwoven drafting System with rubber roller
Servo motor coil opening and tensioning system
Nonwoven tracking sensors
Air pressure monitoring sensors
Drip method wetting system
Stainless dosing pump (precise weight adjustment) - / + 3 gr.
Servo Motor pulling system
Double-knife cutting unit (silent and precise cutting)
Number of wipes / pack: 24 - 120 (adjustable quantity of wipes)

Electrical Properties
Machine Voltage: 380V AC x 2
Machine power: 15 KW
Machine electric current: 8.4 A x 2
Frequency: 50 Hz -60 Hz
Technicial Specifications
Number of Lines: 12 bobbins + 12 bobbins reserve
Working Type: Automatic full servo
Working Systems: Electronic, Pneumatic
Power: 380 V, 50 Hz, 3 PH, 16 Kw x 2
Control System: Electronic
Vacuum-free mechanical folding
Efficiency: over 95%
Coil Change Waste: 2-3 Cuts
Starting Waste: 10 – 15 Cuts until the line gets wet
12 Station Total Machine Capacity (package)
: Max. 80-85- packs/min. ( 72 wipes / pack )

Wetting Sensitivity: -/+ 3 gr.
Product Width: Min. 60mm – Max. 120mm (folded)
Product Size: Min. 100mm – Max. 220mm (open)
Raw Material Weight: Min 30 gsm – Max. 55gsm
Coil Width: Max. 22 centimeters
Max. Coil Diameter: 130 cm
Bobbin Diameter: 76 mm
Machine Direction: STANDARD

The entire body of the machine is closed in accordance with hygiene standards.

Internet connection cable for remote intervention

PLC, TOUCH SCREEN, INVERTER, MOTOR, SERVO MOTOR AND DRIVERS SCHNEIDER ELECTRIC BRAND

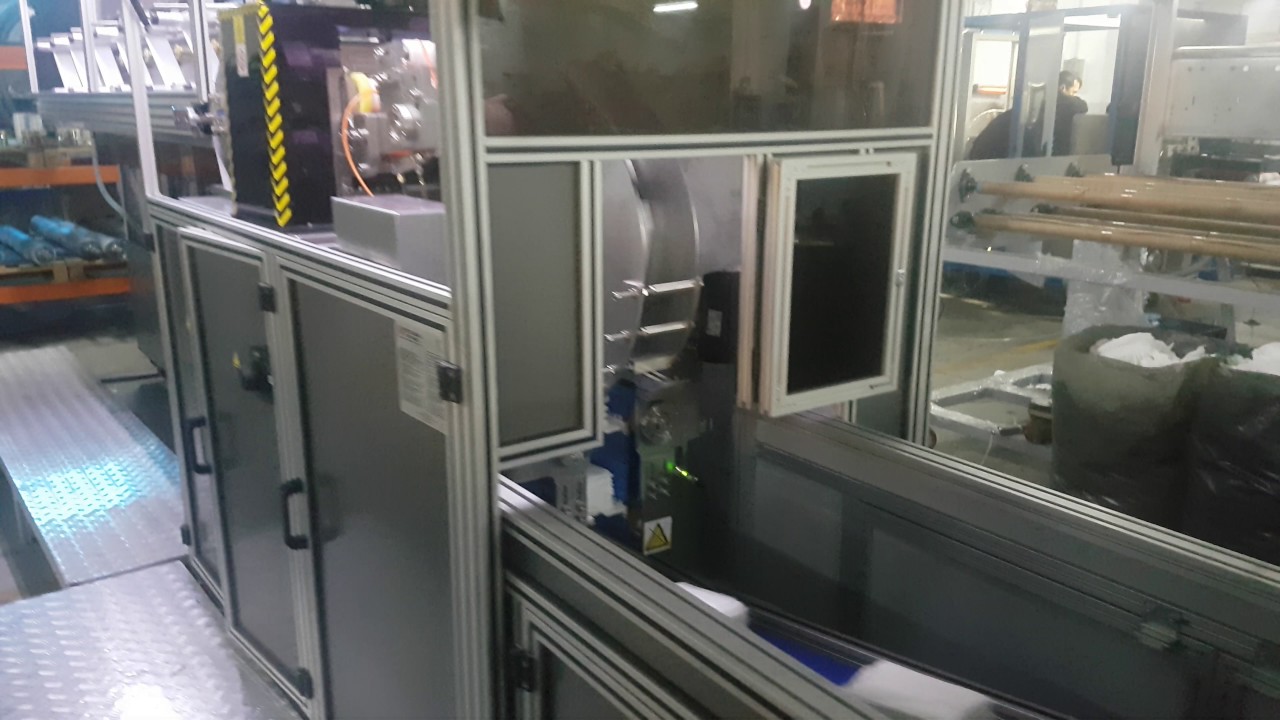

2. FULLY AUTOMATIC PACKAGING MACHINE (Model No: OYM 70 X 100)

Double labeling unit (ability to work on transparent labels)
Double packaging unit
Eccentric jaw system
Automatic pass-through packaging system
Ironing system from upper and lower edges
Rear-of-package excess cutting system
Towel tissue fully automatic change prescription system
Electro pneumatic system
Movable Top disc system
Alarm Control system
Jaw speed control
Photocell reading points
Adjustable chin height
Flat and bellows ear option
Touch PLC control system

Packaging material to be used in the machine
outer diameter 300 mm – inner diameter 76 mm
• 11 servo motors
• Date coding unit

Capacity: 85 Packs (72 wipes/pack) / Minute

Package sizes :
Max. Length 300mm
Max. Width 450mm

Electrical Properties

Electrical power: 380 V, 3 Phase, 50 Hz – 60 Hz
Engine power: 1.5 Kw (2 Hp) AC Speed Control
Heat power: 1500w

MACHINE VOLTAGE 380V AC
MACHINE POWER 20 KW
ELECTRIC CURRENT 12 A
FREQUENCY 50 Hz -60 Hz
ELECTRICAL PHASE 3 PHASE
ENGINE
TOTAL 9 SERVO MOTORS 1- 1.5 AC MOTOR
2- AC MOTOR DISC LIFTING 0.75 KW
3- VACUUM ENGINE
4- BRUSH MOTOR (LINIX 80 REV / MIN)
