How to create structured mesh in Salome
Автор: Thaw Tar
Загружено: 2024-11-25
Просмотров: 4913
Описание:

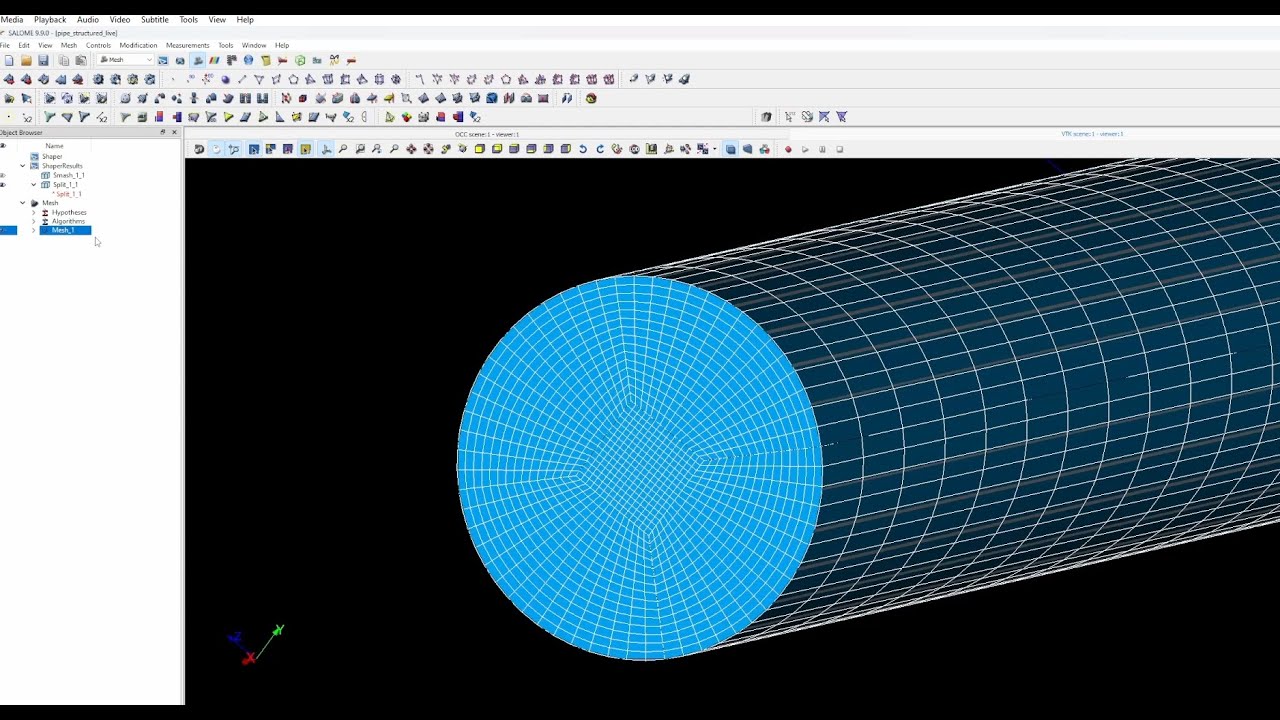

In this tutorial, you will learn how to create a structured mesh for a pipe flow in Salome.
Salome is a very powerful tool for CFD/CAE workflows and mastering Salome can be very useful for your CFD journey!
You can find my Ampersand OpenFOAM case generation software in github: https://github.com/thawtar/ampersandCFD
Deepen your CFD and OpenFOAM knowledge: https://cfdmonkey.com
Explore the realm of computing in CloudHPC: https://cloudhpc.cloud/registration-c...
0:00 Introduction
1:00 Creating pipe
5:00 Creating sketch for inside region
8:00 Using smash to create multi-region geometry
10:00 Thaw forgot to rotate the cylinder
12:20 Creating planes for slicing
14:00 Slicing the cylindrical domain
15:00 Creating the initial structured mesh
18:00 Creating groups of edges for mesh sizing
20:00 Changing mesh size
25:00 Changing various parameters of mesh
