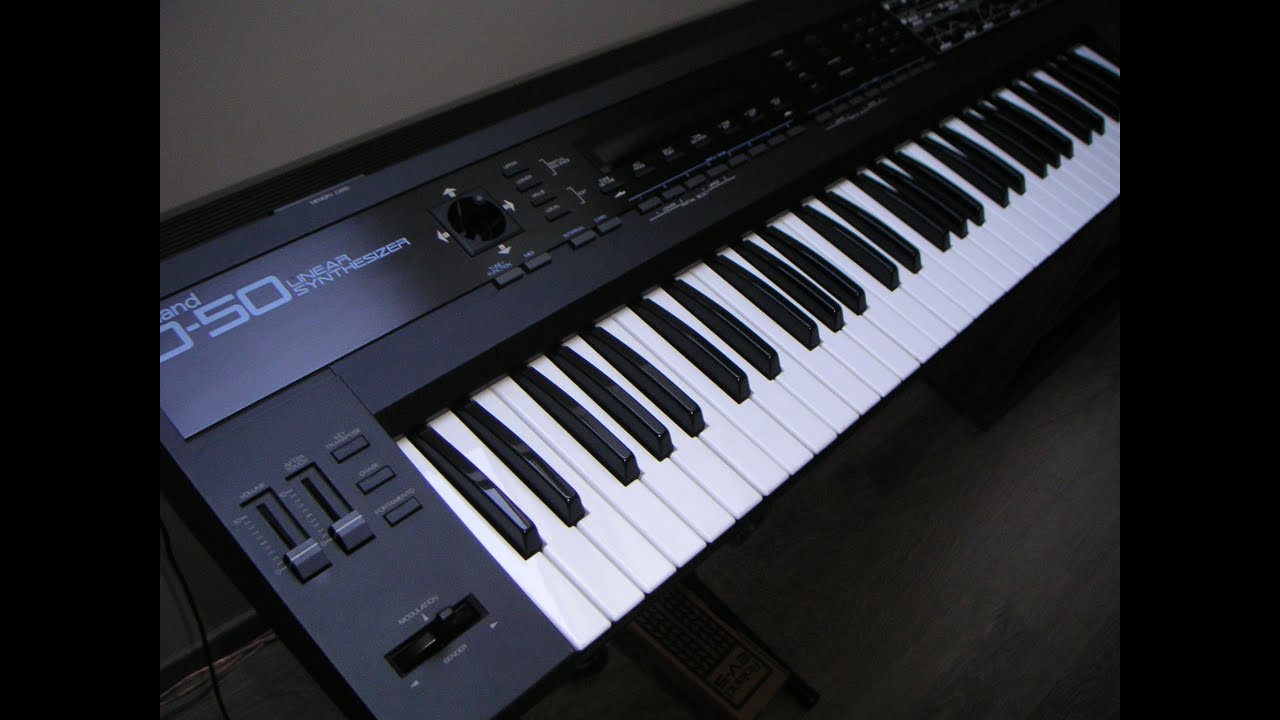

The Roland D-50 is a polyphonic 61-key synthesizer produced by Roland, released in 1987. Its features include Linear Arithmetic synthesis, on-board effects, a joystick for data manipulation, and an analog synthesis-styled layout design.

The D-50 was the first affordable synthesizer to combine sample playback with digital synthesis, a process that Roland called Linear Arithmetic synthesis.

The engineers at Roland determined the most difficult component of a realistic instrument to simulate is the attack, so the D-50 included almost 100 sampled attacks in ROM. The synthesizer played back an attack and used the synthesizer section to create the sustain of the sound.

This dual-use method was required in 1987 since RAM was so expensive. Roland did, however, incorporate a number of "texture" samples that could be mixed into the synthesized sustain-part of a patch.


Although the D-50 was among the first non-sampling machines to be able to produce sounds with sample-based characteristics, it was not long before many synthesizers on the market began using similar methods to create sounds.

Roland later released a series of lower-priced keyboards and modules that allowed musicians who couldn't afford the relatively expensive flagship D-50 to have some of these sounds (Roland D-10 (1988), D-110 (rack version of D-10) (1988) D-20 (1988), D-5 (1989), MT-32). Though these lower priced D-series synthesizers did not contain the full "LA" synth engine, each was 8 part multi-timbral, and Roland doubled the number of onboard PCM samples. Roland also produced the 76-key, 6-octave "Super-LA" D-70 (1989-1990). With the D-70 Roland removed the digital synthesis section, which was replaced with full-length, more realistic and natural sounding samples, including an acoustic piano, which the D-50 lacked. The D-70 also had an expanded filter and effects section and was 5 part multi-timbral. Even with its improvements, however, the D-70 was unable to catch up with the dominant workstation of the time—the Korg M1—and failed to become the next Roland flagship synthesizer.

The D-50 produces a hybrid "analog/digital" sound: one can use traditional fat analog waveforms like saw and square (digitally created on the fly unlike competing synths of the time that used PCM samples of waveforms, ala Korg DW-8000) together with PCM samples of actual acoustic instrument attack transients and famous analog synths of the past, filtered through full analog-style processing (LFOs, TVFs, TVAs, ring modulator, effects, etc.). This breakthrough led to the creation of totally new sounds never done before on either pure analog synths or samplers.

Each D-50 sound ("patch") was made up of 2 "tones" (Upper and Lower) and each tone was made up of 2 "partials". Each partial could be either a "synth waveform" (pulse or sawtooth waveform) and a TVF (time-variant filter, the digital equivalent of a VCF) or a digital PCM waveform (sampled attack transient or looped sustain waveform). The partials could be arranged following 1 of 7 possible "structures" (algorithms), with a combination of either a PCM waveform or synthesized waveform, with an option to ring-modulate the two partials together.

The synthesized waveforms could be pulse-width modulated and passed through a digital 4-stage Low-Pass filter, allowing for subtractive synthesis. The lower and upper part could be split or played in dual on the keyboard. The dual configuration allows an 8-voice polyphony bi-timbrality while only one partial plays, which allows for 32 voices.

The D-50 was fully MIDI-compatible, though it transmits on only one channel. The keyboard was velocity- and after-touch-sensitive, and the keys were slightly "weighted" with metal for a higher-quality feel. It included 64 patches on-board, and 64 more patches were available on the expansion RAM card that was included. It use C2032 Lithium internal battery for memory back up.

For its sound and build quality, and the unique synthesis method it featured, the D-50 has remained popular to this day. Its synthesis engine, in more or less updated forms, was used in Roland's JV and XP series synths, among others. Furthermore, in 2004, Roland released a VC-1 expansion card for V-Synth and VariOS synthesizers. It contained a modeled and updated D-50 synthesis engine and the original operating system, including factory- and all Roland "expansion cards" patches. Since newer DAC chips sounded different (cleaner), it included the option to simulate the D-50's "rougher" output.
