2019 - 2023+ Ram Truck Rear Door Speaker Install

Описание: Parts used linked in the description below!

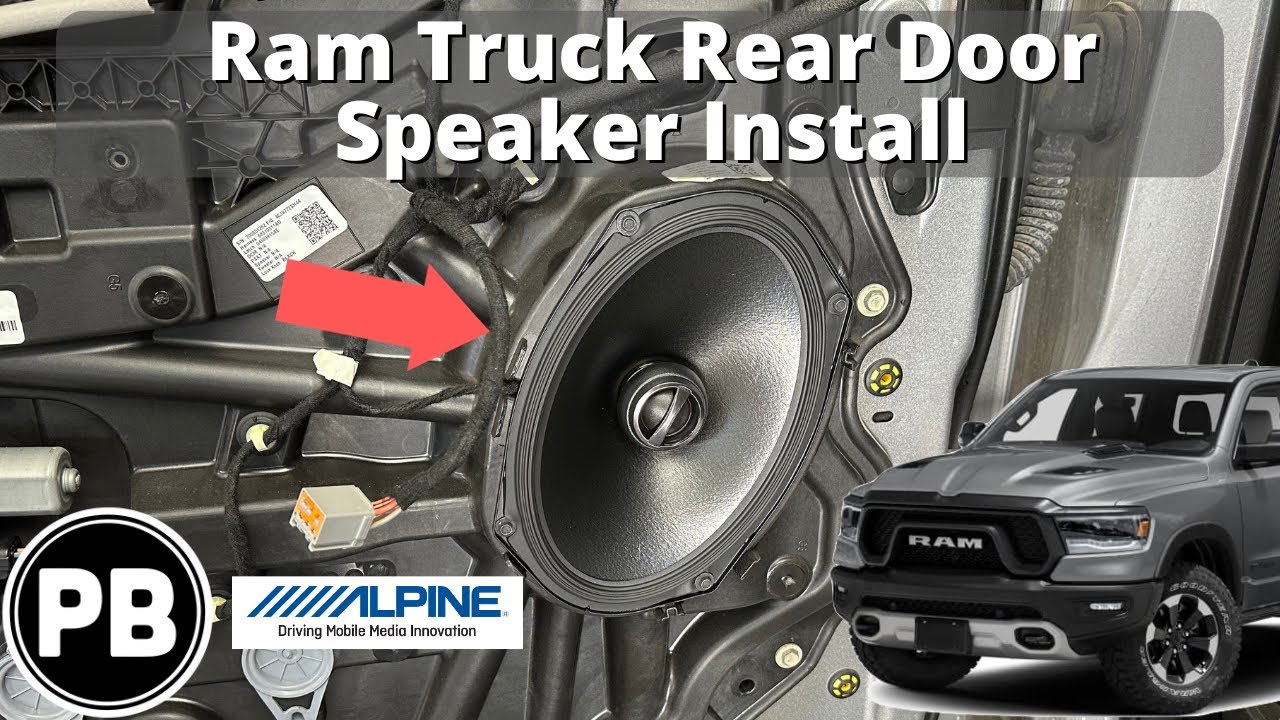

Watch a full tutorial as a 2019 Ram Truck Rebel will have a rear door 6x9" coaxial speaker installed in the factory location. We will be using the Alpine S-S69 6x9" coaxial speakers for enhanced audio quality while keeping the factory look. We are retaining the factory radio.

NOTE: Our Ram truck was equipped with ANC (Active Noise Cancellation) which may need to be bypassed if you are getting any feedback in your newly installed door speakers. We can link the bypass in the description which is installed under the driver side front seat if needed.

NOTE: Our ram also wasn't equipped with the Alpine audio sound system. If you have the alpine audio system, you may need a different (lower) impedance speaker to be most compatible with that factory amplifier. We can link those specific speakers below.

This video applies to Ram Trucks / Rebel models for years 2019, 2020, 2021, 2022, and 2023+. This video also includes door trim removal, complete speaker wiring instructions, installation, and testing.

Factory Wiring Colors (Base audio system):
Front Left (+): Gray / Violet
Front Left (-): Gray / Yellow
Front Right (+): Dark Green / Violet
Front Right (-): Dark Green / Yellow
Rear Left (+): Gray / Dark Green
Rear Left (-): Gray / Light Green
Rear Right (+): Dark Green / Light Green
Rear Right (-): Dark Green / Gray

Click here to see the front door / dash speaker install video:
   • 2019 - 2023+ Ram Truck Front Door / Dash S...

Click here to see the amp and sub install video:
   • 2019 - 2023+ Ram Truck Amp and Sub Install

If you have any questions, leave a comment below! Be sure to like and subscribe!

Parts used in this install (Amazon Associate Paid Links):
*Alpine S-S69 6x9" Coaxial Speakers: https://amzn.to/3mMNsyd
*Metra 72-6514 door speaker wiring harness adapters: https://amzn.to/35WNKIY

Disclosure: As an Amazon Associate I earn from qualifying purchases
