Hyundai Wia L400C Big Bore, 18" Chuck, 6.5" Bar Capacity CNC Turning Center New: 2017
Автор: MachineryValues Inc
Загружено: 2024-08-02
Просмотров: 198
Описание:
https://www.machineryvalues.com/inven...

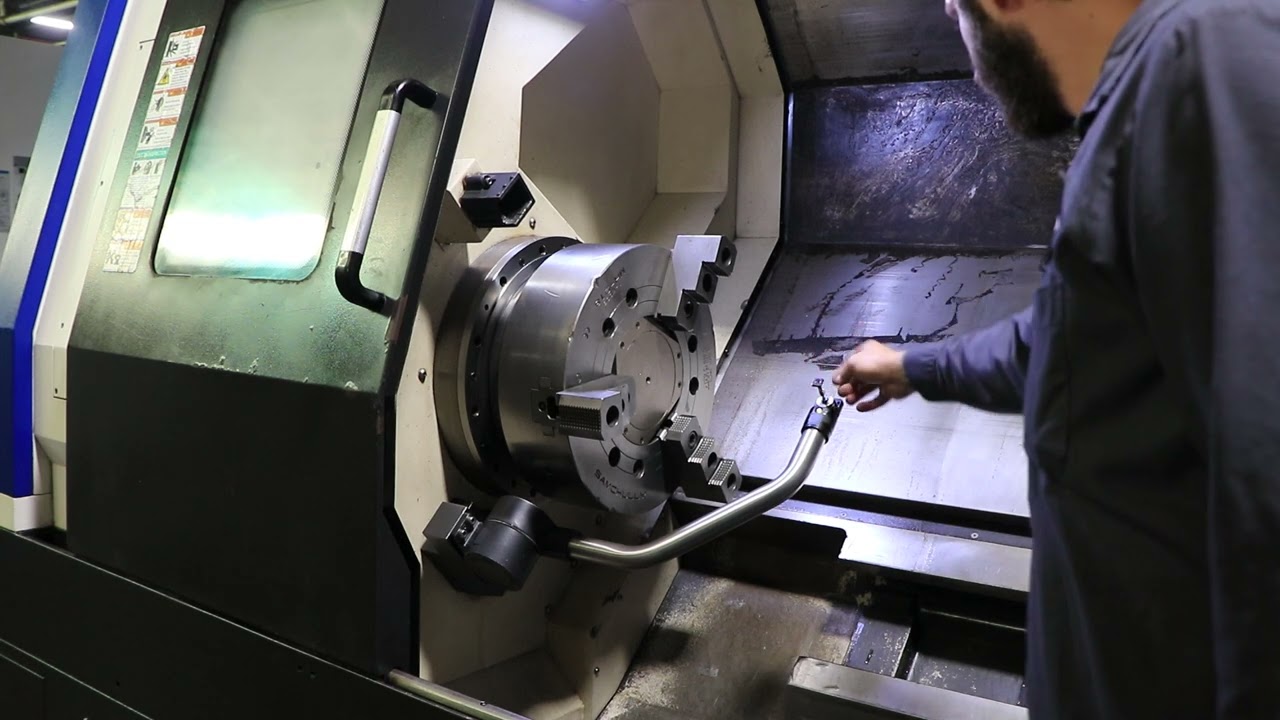

Hyundai Wia L400C Big Bore, 18" Chuck, 6.5" Bar Capacity CNC Turning Center
New: 2017
SPECIFICATIONS:
Swing Over The Bed 30.7"
Swing Over The Carriage 21.1"
Max Turning Diameter 24.8"
Max Turning Length 46.1"
Bar Capacity 6.5"
Spindle Bore 7.1"
Spindle Speed (2 Speed Geared) 1,500 RPM
Spindle Motor 50 HP
Spindle Nose A2-15
Travel (X/Z) 12.8" / 47.4"
Turret - 12 Positions
Approximate Floor Space: 165.4" x 86.9" x 84.8" H
Approximate Machine Weight: 18,800 Lbs
EQUIPPED WITH:
Fanuc i Series CNC Control
18" Samchully MH-218 3-Jaw Power chuck
Auto Tool Setter
Programmable Built In Tail Stock (Tow-Along Type)
12 Station Turret
Chip conveyor
Heavy Duty Box Ways
2 Step Gear Box
