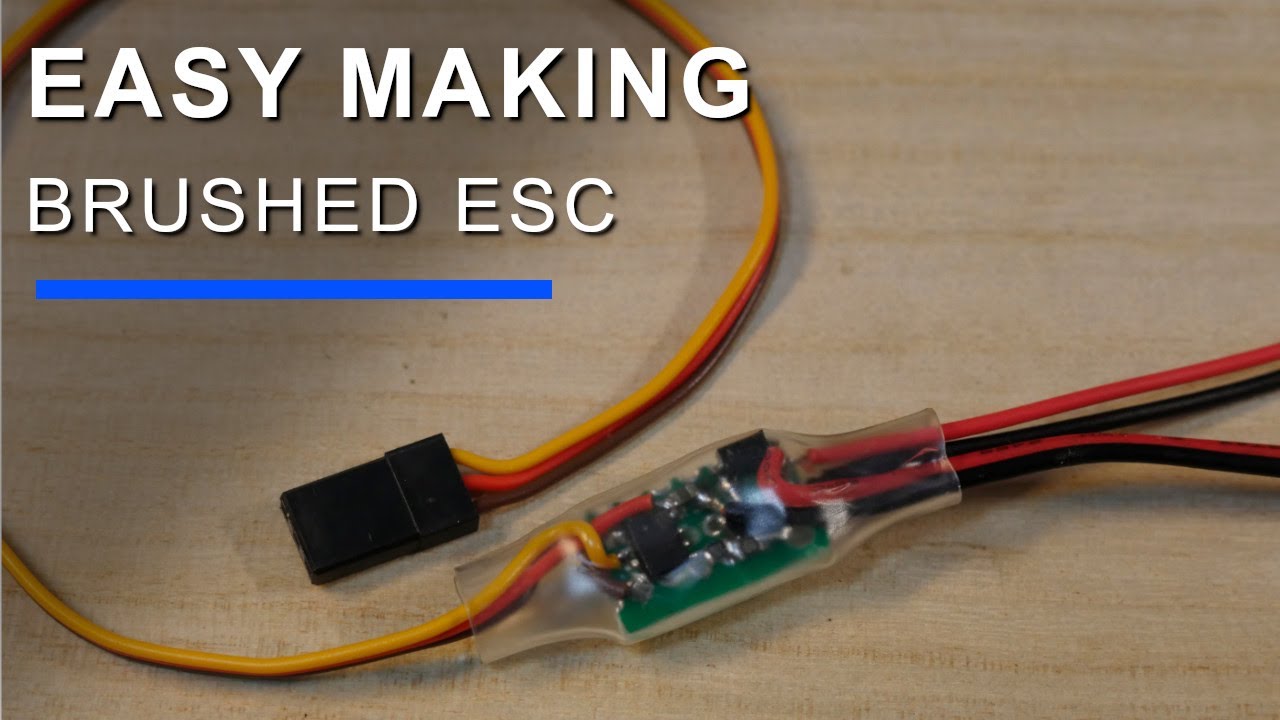

Making a tiny brushed ESC
Автор: DIYQiQi
Загружено: 2022-02-16
Просмотров: 28299
Описание:
This video introduces how to make a one-way brushed ESC. In order to keep the volume and weight of the ESC as small as possible, all SMD components are used to make it. Attiny13 is used as the ESC MCU. Input a PWM wave to the attiny13, and the attiny13 MCU controls the on-off time of the N-channel MOSFET transistor according to the duty cycle of the PWM wave. So as to realize the control of the motor speed.
source code: https://github.com/DIYQiQi/attiny13_esc
