#Token

Описание: #Token Number System # token display unit #token printing machine # token display system with voice

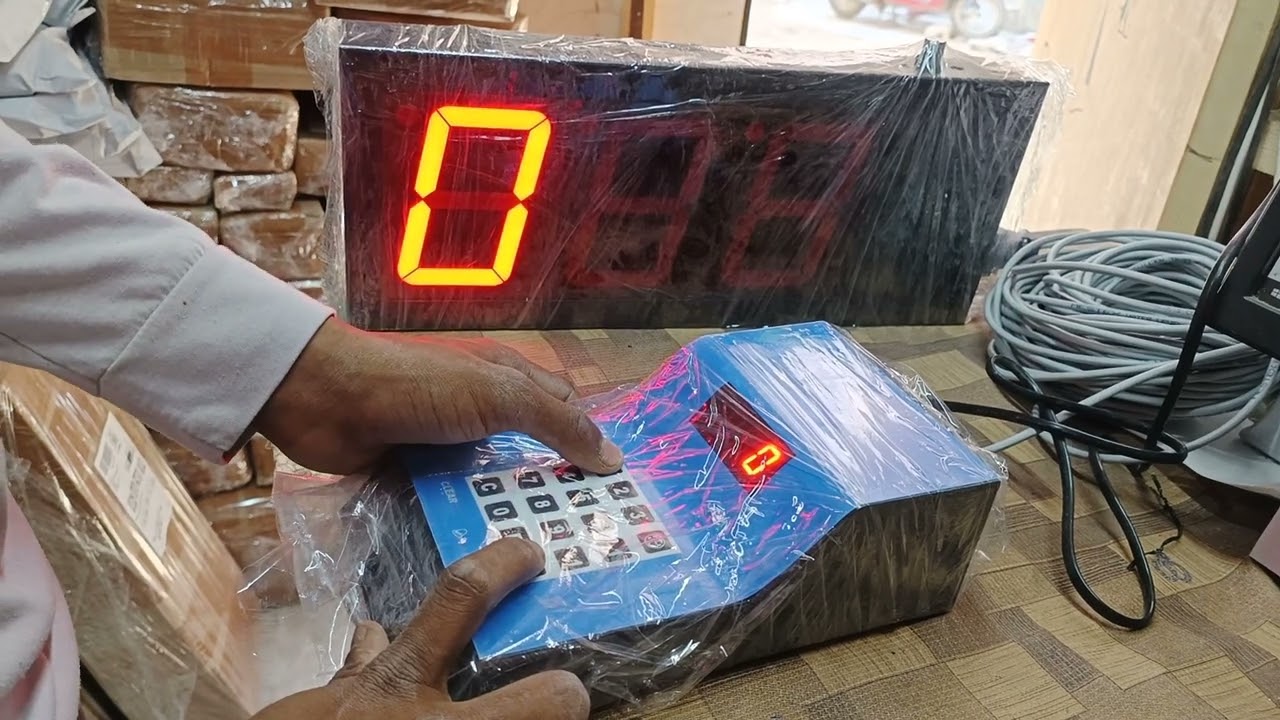

Voice Token Display For Bank, , Doctors, Restaurants, Hospital, Clinic ( digit size 4 Inch With Ding-Dong Bell Sound or with voice., Microprocessor Based Uniform Glow LED. Female Human Voice. Optional Hindi, Telugu, Tamil Language. Other languages on request. Q-Banks customer service counters etc. Works with 230 V. AC mains.
It can be attached with of Token Generator with optional mini thermal printer, Token Caller unit, token display unit and Token announcement unit. It operated on 12 Volt DC Supply. You can use rechargeable battery also, here we have used 12 Volts 2 Amp SMPS. Caller unit consists of Keypad and display, user can set / call token using matrix keypad, after pressing the enter # button token number transmitted to the Display using RS232 Protocol. Display unit built using 4-inch 7 Segment display in 3 digit or 4digit as per order /requirement, it also consists of voice generator chip and it announces the token number in English as well as in Hindi.
Main Components are
1) Microcontroller
2) 4 inch 7 Segment Bright red Display
3) Max 232/RJ45
4) Voice Generator Chip
5) Amplifier Kit
6) 4 inch Speaker with volume control
7) 12 Volt 1 Amp SMPS
Application Areas are
1) Banks
2) Restaurants
3) Hotels
4) Hospitals
5) Vaccination Centers
