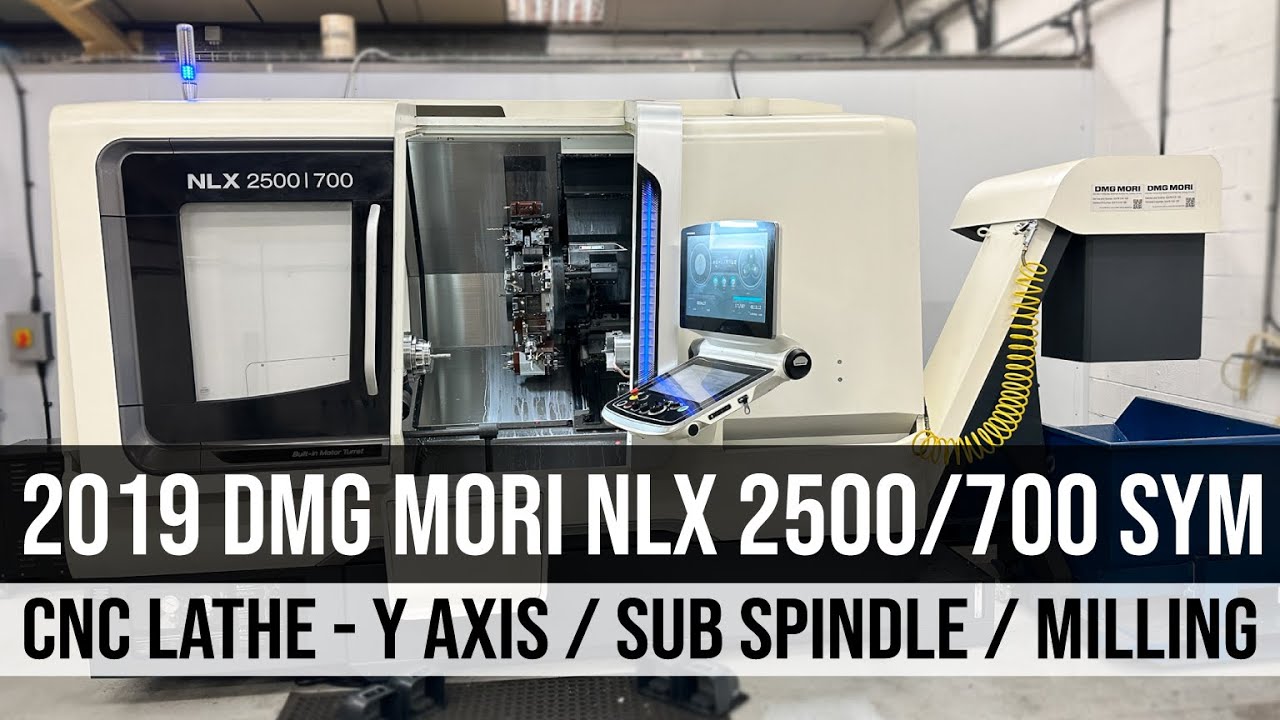

2019 DMG MORI NLX 2500/700 SYM | CNC Turning Centre

Описание: This machine has been sold and is no longer available, if you are interested in finding machinery similar to this one please get in touch with a member of our team by clicking the link below:

https://www.charterauctions.co.uk/con...


Program Runtime (Hours Worked): 2034

Specifications:
Swing over Bed mm(in.):
920 (36.22) interfere with front cover: 620 (24.41)
Swing over Cross Slide mm (in.):
740 (29.13)
Maximum Distance Between Spindle Nose Surfaces mm (in.):
961 (37.83)

Max. Turning Diameter mm (in.):
366 (14.41)°4, 356 (14.02)"5 [406 (15.98) 12st VDI high-precision quick-change turret (DIN)] [348 (13.7) 16st turret head] [278 (10.95) 20st turret head]

Standard Turning Diameter mm (in.):
271 (10.67)"4 275 (10.83)5[330 (12.99), 335 (1319) 10st turret head] [260 (10.24) 12st VDI high-precision-quick-change turret (DIN)] [206 (8.11) 16st turret head] [192 (7.56) 20st turret head]

Max. Turning Length mm (in.):
705 (27.76)

Bar Work Capacity mm (in.):
80 (3.15) [90 (3.54) continuous through spindle hole diameter 91 (3.58)] [102 (4.02) continuous through spindle hole diameter 103 (4.06)]

X-Axis Travel mm (in.)
260 (10 24)

Y-Axis Travel mm (in.)
‡50 (‡1.97)

Z-Axis Travel mm (in.)
795 (31.30)

Spindle 2B-Axis Travel mm (in.)
734 (28.90)
