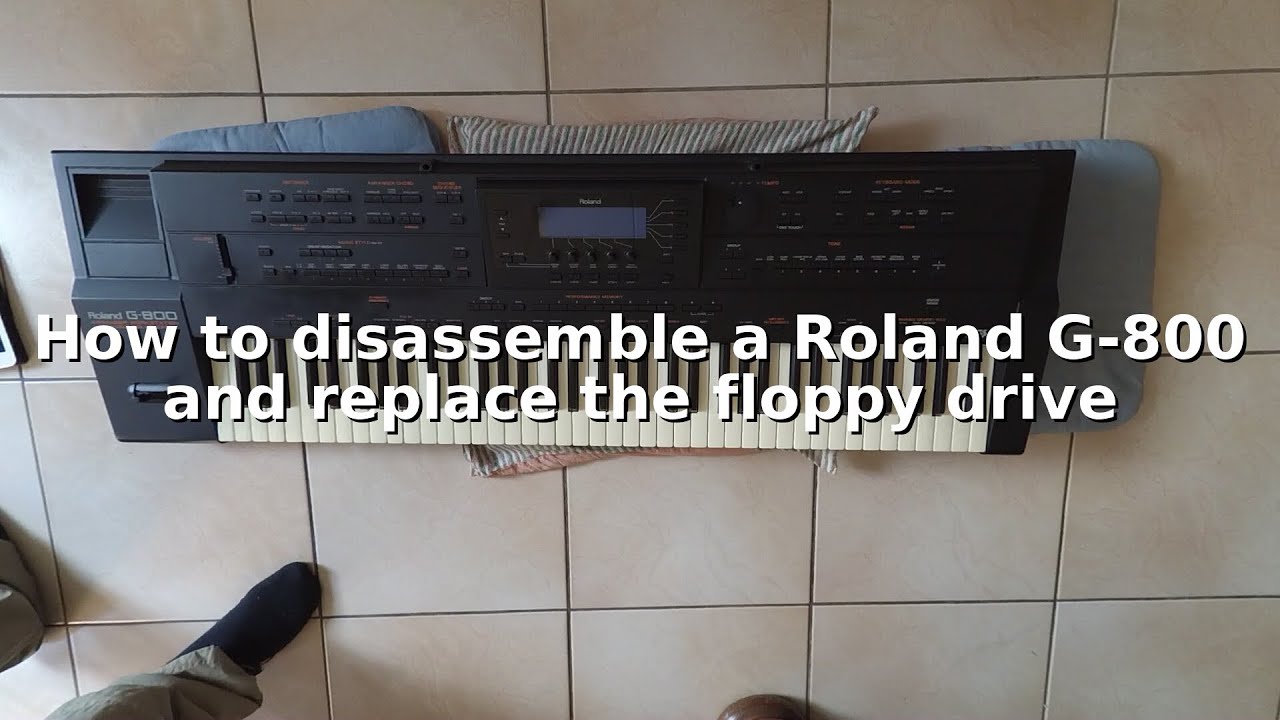

Opening Roland G-800 and replacing Floppy with USB Floppy emulator
Автор: Skinkie
Загружено: 2016-02-27
Просмотров: 29584
Описание:
In this visual tutorial I open the Roland G-800 arranger workstation and replace the floppy drive with a GOTEK SFR1M44-U100K Floppy drive emulator bought from AliExpress.
The Floppy Drive Emulator requires some minor modifications. Originally described here:
https://tastiere.wordpress.com/2014/0...
In English:
Pin 1 + 2 on the GOTEK should be connected.
Three dumpers are required: JA, S1, MO.
The redwire of the flat cable should point to the power connector.
Formatting the USB stick is as easy as power-on the device with both buttons pressed. You are able to copy to the USB stick by selecting the "index" on the emulator. After pulling the USB stick out and loading it in the PC, the selected partition should match.
I bought mine for $19 here;
http://www.aliexpress.com/snapshot/73...
