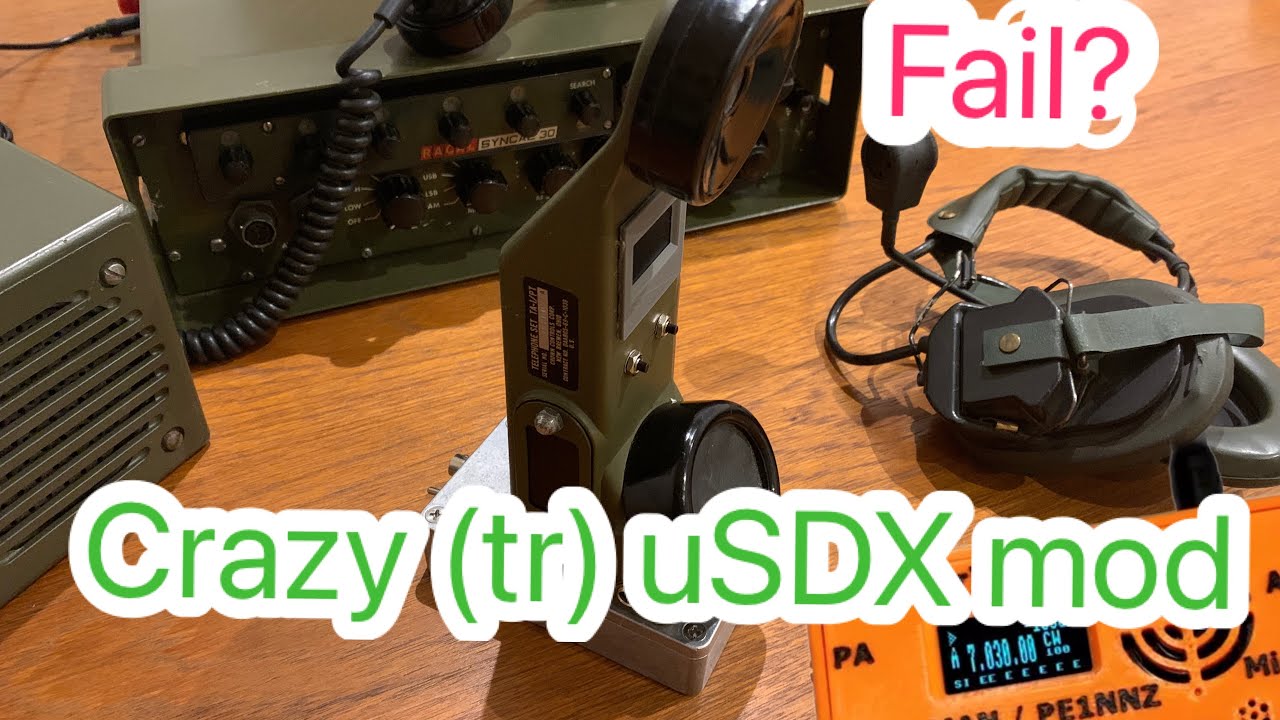

Crazy (tr) uSDX setup with a TA-1/PT

Описание: LIKE & SUSCRIBE If you like my content.
Any help is welcome. More videos to come https://www.buymeacoffee.com/Radiodio...

Here is the complete transformation of the TA-1/PT in order to accommodate a (tr) uSDX transceiver. This tiny SDR radio is awesome and DL2MAN PE1NNZ did a great job. The whole radioamateur community owes them quite a large amount of beers. His work and the way he shared it to the world is fantastic. The radio itself works perfectly if you stick to the suggested setup.

IF YOU TRY TO MODIFY “CAVEAT EMPTOR”. You are on your own, and it is likely that you stumble upon problems like the ones I show on my video.

During the process I had to come by many issues regarding noise and glitches on the screen. I found that long wires are a problem. It is better to keep them on there own rather than twisting them. Shielded wires did not work at all. If you come across any solution drop me a line. I am learning a lot from you all.

I am not responsible of any damage as a result of following my indications. I am no expert at all, just a Ham guy with some tinkering tendency (as all hams usually are :)

Full details about the USDX can be found here https://dl2man.de/
