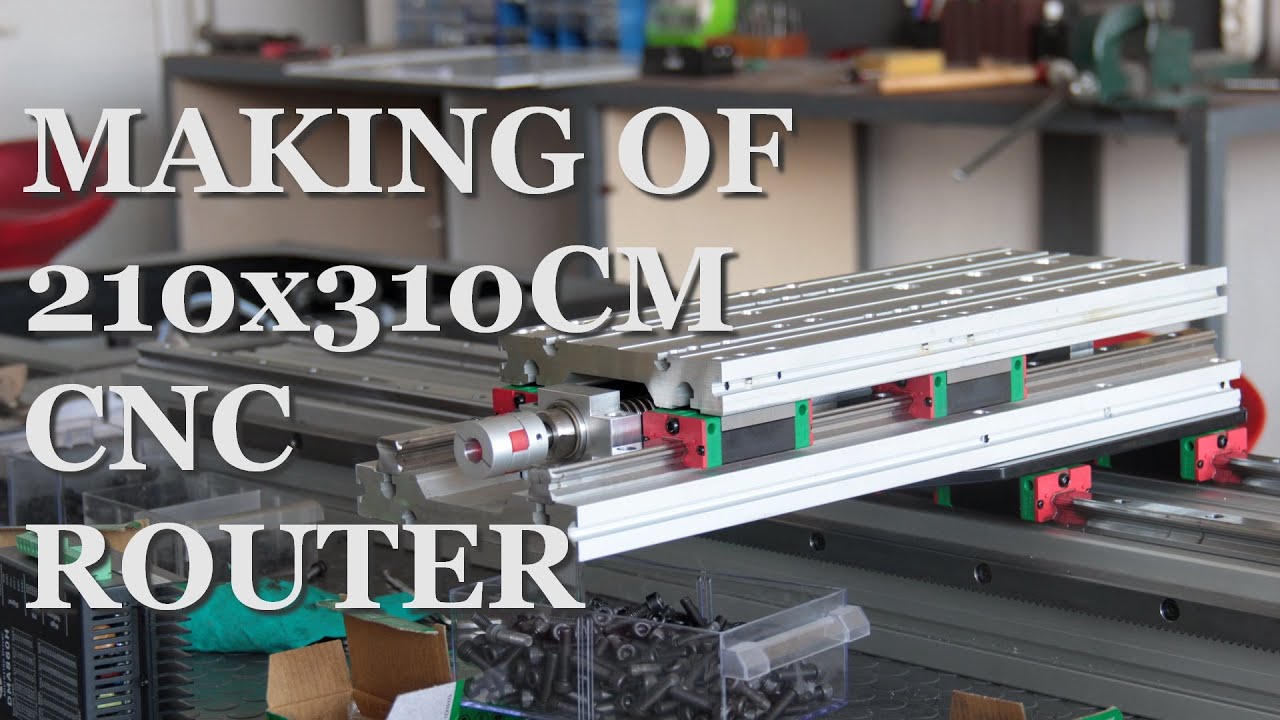

Making of 210x310cm (6,8x10,1ft) CNC Router
Автор: REVO
Загружено: 2019-02-04
Просмотров: 181290
Описание:
Hi, we built a 3-axis cnc router for a company to use especially for machining ACRYLIC, PVC FOAM and 3D terrain models.
Used materials and 2D, 3D drawings:
12 m 90x90 aluminum profile
2,4 m 90x180 aluminum profile
6 m 45x90 aluminum profile
8 x HGH20
4 x HGW25
6,8 m HGR25
6 m HGR20
8,5 m 1,5 module rack
3 x 1,5 module 20t helical gear
4 x Leadshine 86CM85 stepper motor
4 x Leadshine DMA860E stepper motor driver
550mm Hiwin R20-5 ball screw
Hiwin R20-5 T3 FSI ball screw nut
Arel 2,2kW 18000 rpm spindle
Delta 2,2kW spindle driver
https://s6.dosya.tc/server22/brafil/C...
Web: http://www.revo.com.tr
Instagram: / revoindustries
